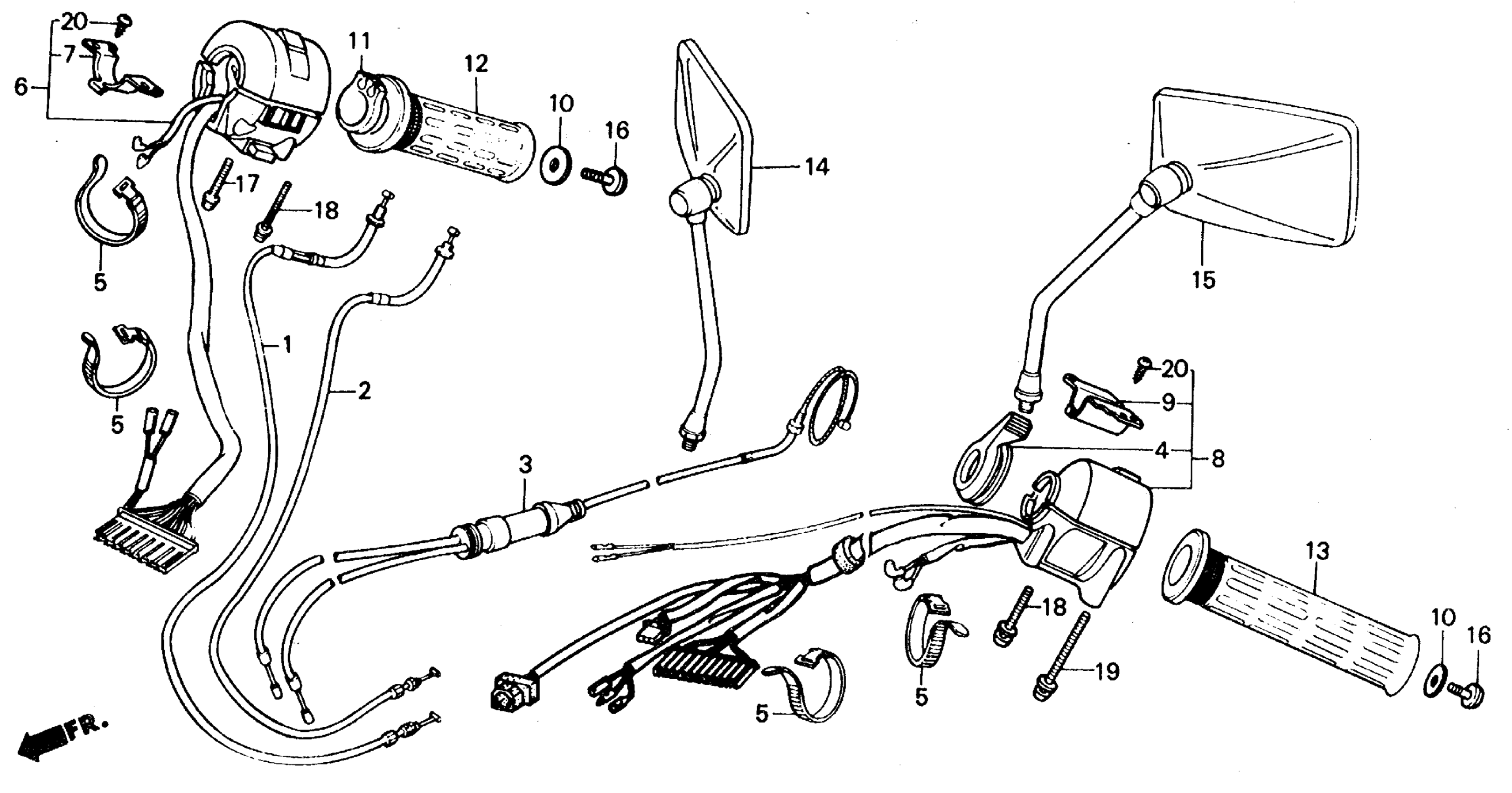

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-MK7-000.

17910-MW3-P00

Unavailable

1

CABLE A, THROTTLE

17910-MW3-P00

Unavailable

2

CABLE B, THROTTLE

17920-MK7-000

Unavailable

3

CABLE, CHOKE

17950-MK7-000

Unavailable

4

LEVER, CHOKE

17962-KE8-701

Unavailable

5

BAND B1, WIRE

32161-404-000

$2.23

6

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35130-MK7-770

Unavailable

7

PLATE, STOP SWITCH SETTING

35152-KE8-703

$7.61

8

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MK7-770

Unavailable

9

PLATE, TURN SIGNAL SWITCH SETTING

35204-KE8-702

$9.79

10

WASHER, HANDLE (NOT AVAILABLE)

53109-MG8-000

Unavailable

11

PIPE, THROTTLE GRIP

53141-300-010

$20.93

12

GRIP, R. HANDLEBAR This part replaces 53165-MK3-000.

53168-MK3-315

Unavailable

12

GRIP, R. HANDLEBAR This part replaces 53168-MK3-305.

53168-MK3-315

Unavailable

12

GRIP, R. HANDLEBAR

53168-MK3-315

Unavailable

13

GRIP SET, L. HANDLEBAR This part replaces 53166-MK3-000.

53167-MK3-325

Unavailable

13

GRIP SET, L. HANDLEBAR This part replaces 53167-MK3-305.

53167-MK3-325

Unavailable

13

GRIP SET, L. HANDLEBAR This part replaces 53167-MK3-315.

53167-MK3-325

Unavailable

13

GRIP SET, L. HANDLEBAR

53167-MK3-325

Unavailable

14

MIRROR, R.

88110-MG8-770

Unavailable

15

MIRROR, L.

88120-MG8-770

Unavailable

16

BOLT, SOCKET (8X14)

90116-MF5-000

Unavailable

17

SCREW-WASHER (5X20)

93892-05020-07

$1.49

18

SCREW-WASHER (5X28)

93892-05028-07

$1.49

19

SCREW-WASHER (5X45)

93892-05045-07

$1.49

20

SCREW, TAPPING (3X8)

93901-32120

$1.49
