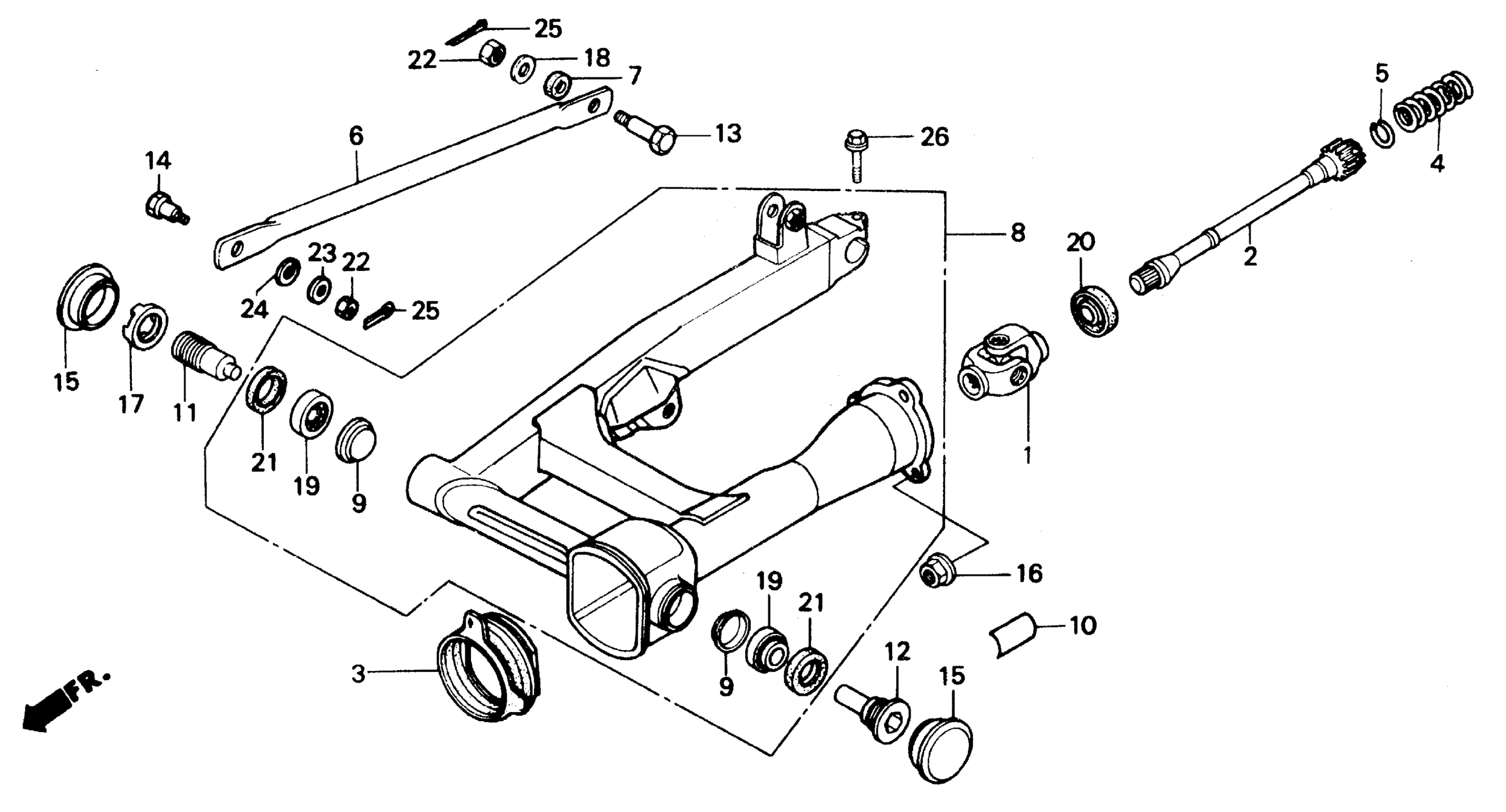

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 SWINGARM Diagram

JOINT, YOKE

40200-ME9-003

Unavailable

SHAFT, PROPELLER

40201-MK7-003

Unavailable

BOOT, JOINT

40207-ME9-000

Unavailable

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

RING, STOPPER

40221-MB0-000

$4.53

ARM, RR. BRAKE STOPPER

43431-MK7-000

Unavailable

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-MK7-000ZA

Unavailable

PLATE, DUST SEAL

52118-415-000

Unavailable

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-MK7-670

Unavailable

BOLT, R. SWINGARM PIVOT

90121-MK7-770

$46.38

BOLT, L. SWINGARM PIVOT

90124-MK7-770

$26.16

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

CAP, R. LOCK NUT

90302-ME5-000

$19.37

NUT, HEX. (10MM)

90308-357-000

$4.85

NUT, LOCK (23MM)

90354-MK7-770

Unavailable

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-003.

91066-415-006

Unavailable

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-004.

91066-415-006

Unavailable

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-005.

91066-415-006

Unavailable

BEARING (30202) (NIPPON SEIKO)

91066-415-006

Unavailable

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

OIL SEAL (20X35X5)

91266-ME5-003

Unavailable

OIL SEAL (20X35X5) This part replaces 91266-ME5-004.

91266-ME5-003

Unavailable

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (10MM)

94111-10000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
