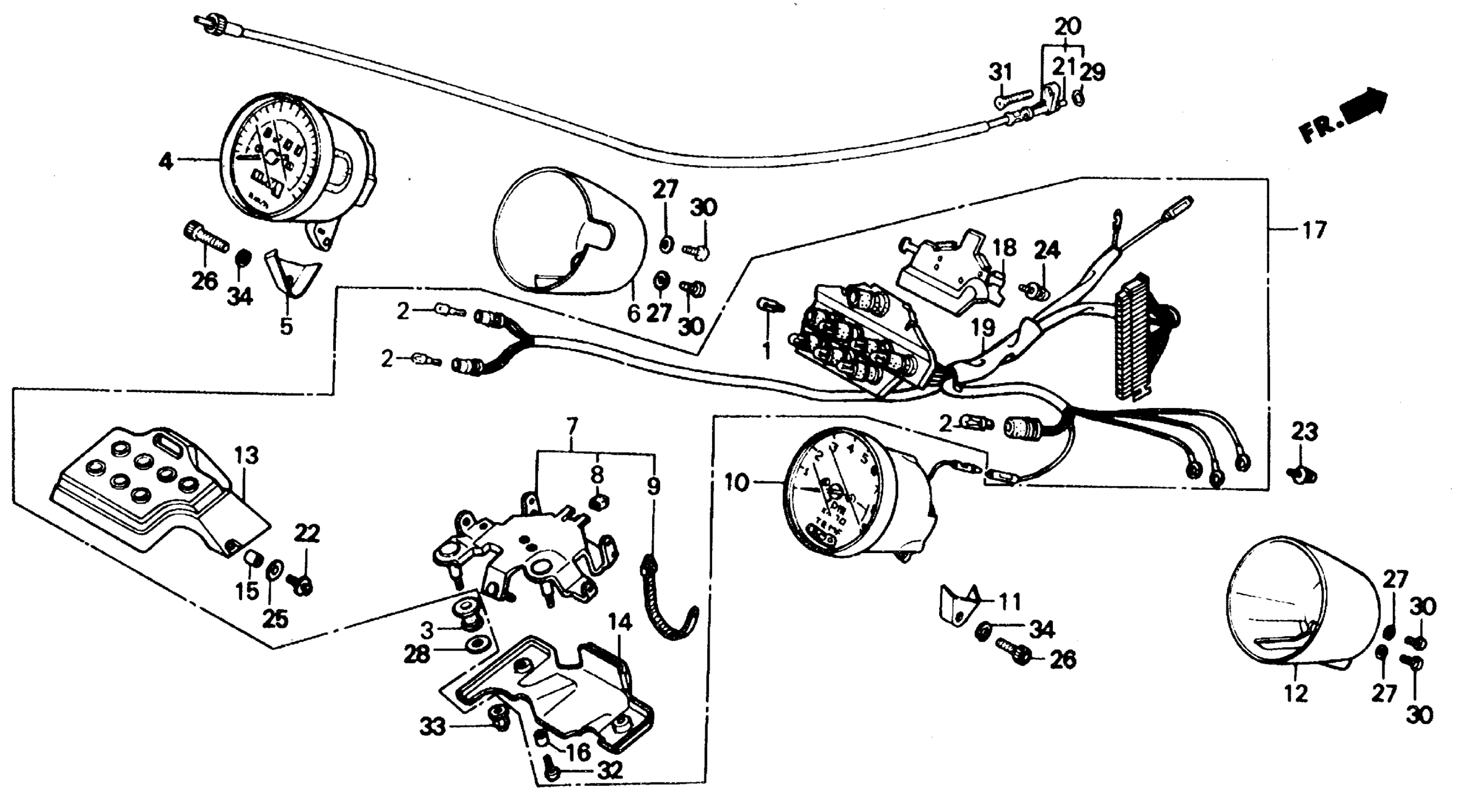

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

3

RUBBER, METER MOUNTING This part replaces 37111-MK7-000.

37111-MF5-000

$5.74

4

SPEEDOMETER ASSY. (MPH/KPH) This part replaces 37200-MK7-771.

37200-MK7-772

Unavailable

4

SPEEDOMETER ASSY. (MPH/KPH)

37200-MK7-772

Unavailable

5

COVER, SPEEDOMETER STAY

37203-ME9-009

Unavailable

6

CASE, SPEEDOMETER (LOWER)

37204-MK7-009

Unavailable

7

STAY, METER (NOT AVAILABLE)

37211-MK7-771

Unavailable

8

RUBBER, COVER (LOWER)

37214-MK7-009

Unavailable

9

CLAMP

37215-MK7-771

Unavailable

10

TACHOMETER ASSY. This part replaces 37250-MK7-772.

37250-ML5-612

Unavailable

10

TACHOMETER ASSY.

37250-ML5-612

Unavailable

10

TACHOMETER ASSY. This part replaces 37250-MR6-671.

37250-ML5-612

Unavailable

10

TACHOMETER ASSY. This part replaces 37250-MK7-771.

37250-ML5-612

Unavailable

11

COVER, TACHOMETER STAY

37253-ME9-009

Unavailable

12

CASE, TACHOMETER (LOWER)

37254-MK7-009

Unavailable

13

CASE, PILOT

37601-MK7-771

Unavailable

14

COVER, PILOT BOX

37602-MK7-019

Unavailable

15

COLLAR, METER CASE SETTING (NOT AVAILABLE)

37607-MK7-009

Unavailable

16

COLLAR, METER CASE SETTING

37608-MK7-009

Unavailable

17

LAMP ASSY., PILOT

37610-MK7-771

Unavailable

18

STAY, SOCKET

37617-MK7-771

Unavailable

19

SOCKET

37619-MK7-771

Unavailable

20

CABLE ASSY., SPEEDOMETER

44830-MJ1-000

Unavailable

21

CABLE (INNER)

44831-MJ1-300

Unavailable

22

SCREW-WASHER (5X11) (NOT AVAILABLE)

90092-MK7-771

Unavailable

23

SCREW-WASHER (3X6)

90101-MF5-841

Unavailable

24

SCREW, PAN (3X6)

90104-MK7-009

Unavailable

26

BOLT, SOCKET (6X20)

90116-460-000

Unavailable

27

WASHER, WAVE

90401-ME9-009

Unavailable

28

WASHER, SPECIAL (6MM)

90438-671-000

$4.80

29

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

29

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

29

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

30

SCREW, PAN (4X10)

93500-04010-1B

Unavailable

31

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

32

SCREW-WASHER (5X11) (NOT AVAILABLE)

90092-MK7-771

Unavailable

33

NUT, CAP (6MM)

94021-06070-0S

$1.62

34

WASHER, SPRING (6MM)

94111-06700

$1.49
