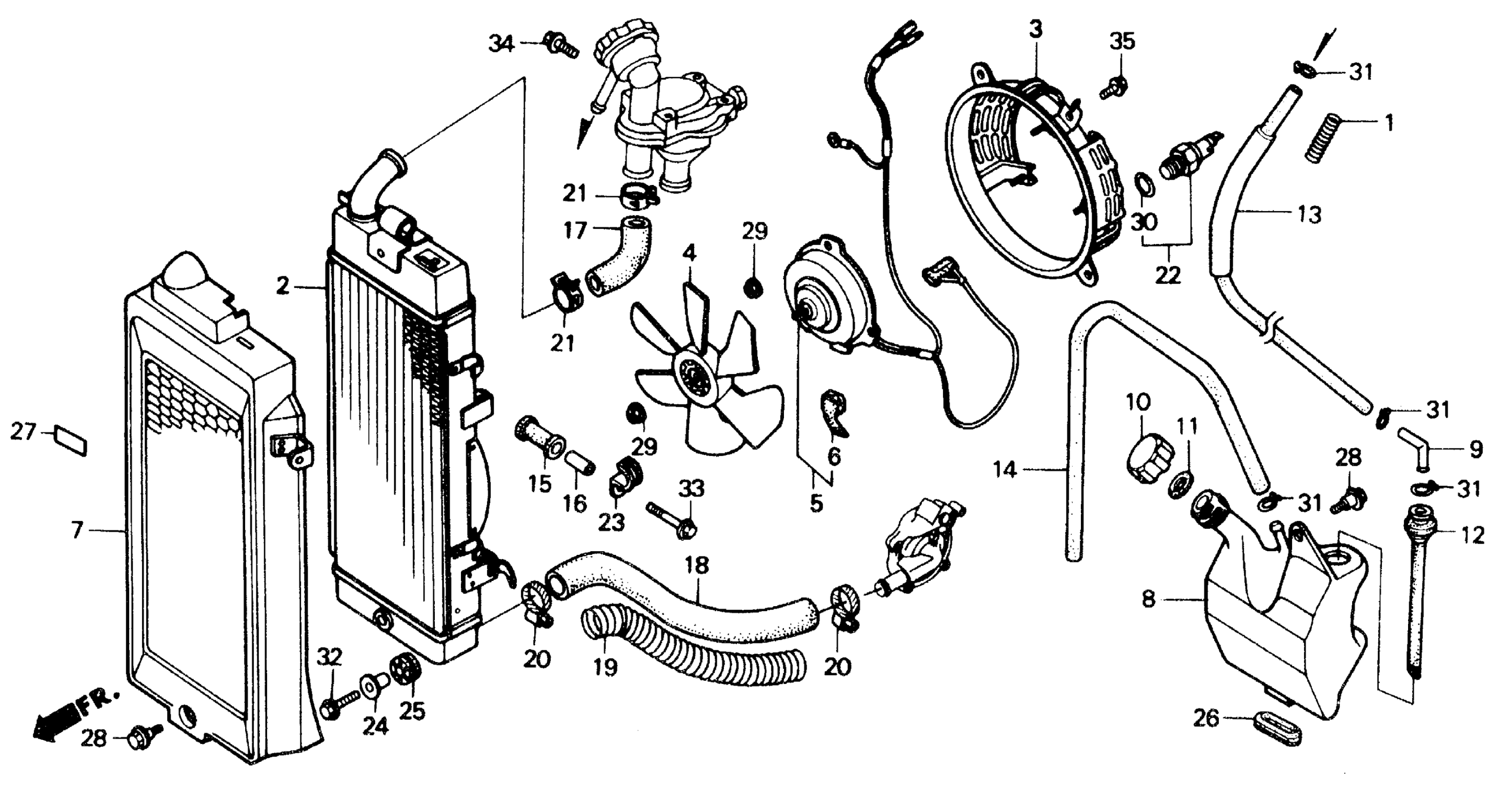

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 RADIATOR Diagram

#

Description
Price

1

SPRING, FUEL TUBE COVER (NOT AVAILABLE)

16715-MB1-700

Unavailable

2

RADIATOR

19010-MK7-003

Unavailable

3

SHROUD This part replaces 19015-MK7-003.

19015-MK7-013

Unavailable

3

SHROUD

19015-MK7-013

Unavailable

4

FAN, COOLING

19020-MG8-003

$62.31

5

MOTOR ASSY., FAN (MATSUSHITA) This part replaces 19030-MK7-004.

19030-MK7-024

Unavailable

5

MOTOR ASSY., FAN (MATSUSHITA) This part replaces 19030-MK7-014.

19030-MK7-024

Unavailable

5

MOTOR ASSY., FAN (MATSUSHITA)

19030-MK7-024

Unavailable

6

TUBE, RUBBER

19031-MG8-300

Unavailable

7

COVER, RADIATOR

19032-MK7-000

Unavailable

8

TANK, RADIATOR RESERVE (NOT AVAILABLE)

19103-MK7-000

Unavailable

9

JOINT, TUBE

19103-463-000

Unavailable

10

CAP, RESERVE TANK

19104-ME9-000

$16.36

11

GASKET, RESERVE TANK

19107-MG8-000

$5.05

12

TUBE, LEVEL This part replaces 19108-MB0-000.

19108-MB0-010

$11.50

12

TUBE, LEVEL

19108-MB0-010

$11.50

13

TUBE, RESERVE TANK BREATHER

19108-MK7-000

Unavailable

14

TUBE, RADIATOR RESERVE

19109-MK7-000

Unavailable

15

RUBBER, RADIATOR SETTING

19113-MB0-000

Unavailable

16

COLLAR, RADIATOR SETTING

19114-MB0-000

Unavailable

17

HOSE, RADIATOR (UPPER) (NOT AVAILABLE)

19116-MK7-000

Unavailable

18

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19117-MK7-000

Unavailable

19

GUARD, RADIATOR HOSE (LOWER)

19120-MG8-000

Unavailable

20

CLAMP, WATER HOSE

19503-MB1-870

$12.56

21

CLAMP, HOSE (22-29MM) This part replaces 19513-MF5-000.

19517-ML7-691

$11.62

21

CLAMP, HOSE (22-29MM) This part replaces 19513-MM4-003.

19517-ML7-691

$11.62

21

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

22

SWITCH ASSY., THERMO This part replaces 37760-MB2-901.

37760-MR1-003

$71.91

22

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

23

CLIP A, HARNESS

50305-MK7-000

Unavailable

24

COLLAR, FR. FENDER (WHITE) This part replaces 61104-MA6-720.

61104-428-010

$4.42

24

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

24

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

25

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

26

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

27

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

28

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

29

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

30

O-RING (13.5X1.4)

91307-PH7-660

$2.83

30

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

31

CLIP, TUBE (C11)

95002-70000

$1.56

32

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

32

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

33

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

33

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

34

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

35

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

35

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
