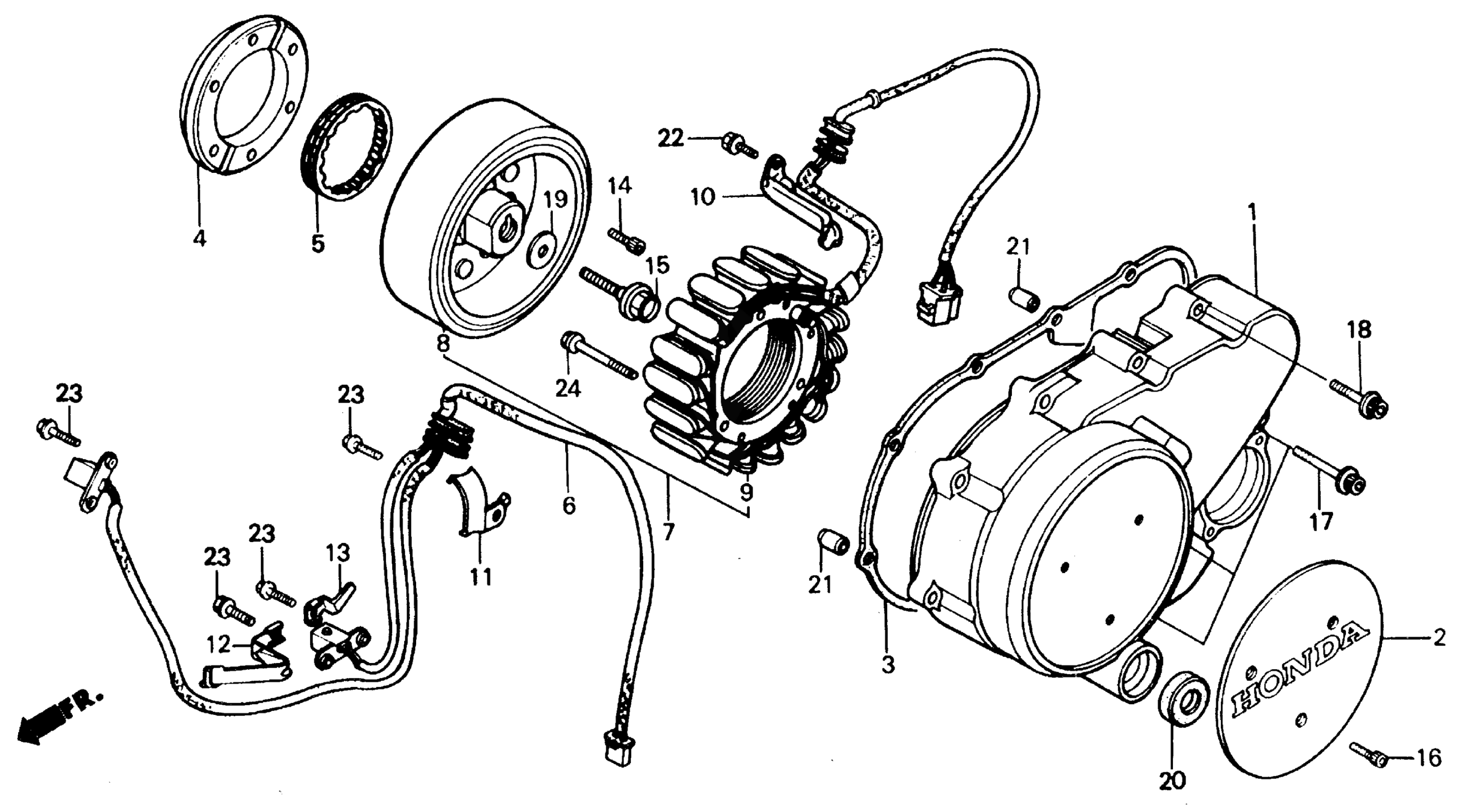

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11361-MK7-670

Unavailable

2

BASE, EMBLEM (NOT AVAILABLE)

11362-MK7-770

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-ME9-000.

11395-ME9-306

$12.84

3

GASKET, L. CRANKCASE COVER

11395-ME9-306

$12.84

3

GASKET, L. CRANKCASE COVER This part replaces 11395-MK7-670.

11395-ME9-306

$12.84

4

CLUTCH, STARTER (OUTER)

28121-MK7-671

Unavailable

5

CLUTCH, ONE-WAY This part replaces 28125-MK5-023.

28126-MK5-004

$98.47

5

CLUTCH, ONE-WAY

28126-MK5-004

$98.47

6

GENERATOR ASSY., PULSE (NOT AVAILABLE) This part replaces 30300-MK7-770.

30300-MK7-003

Unavailable

7

ALTERNATOR ASSY., FLYWHEEL TYPE (HITACHI) (NOT AVAILABLE)

31100-MK7-005

Unavailable

8

FLYWHEEL (HITACHI)

31110-MK7-005

Unavailable

9

STATOR (HITACHI)

31120-MK7-005

Unavailable

10

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

32961-MK7-670

Unavailable

11

CLAMP, PULSE (A)

32962-ME9-000

Unavailable

12

CLAMP, PULSE (B)

32963-ME9-000

Unavailable

13

CLAMP, PULSE (C)

32964-MG7-000

Unavailable

14

BOLT, SOCKET (8MM) This part replaces 90010-KE5-000.

90010-MAY-000

$5.41

14

BOLT, SOCKET (8MM)

90010-MAY-000

$5.41

15

BOLT, FLANGE (12X45)

90026-MK7-670

Unavailable

16

BOLT, SOCKET (4X10)

90073-ME9-000

$3.85

17

BOLT, SOCKET (6X50) (NOT AVAILABLE) This part replaces 90078-MG8-000.

90009-KN8-730

Unavailable

18

BOLT, FLANGE SOCKET (6X35)

90081-MG8-000

$5.11

19

WASHER (12.2X33X3.2)

90401-371-000

$6.43

20

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

21

PIN, DOWEL (8X14)

94301-08140

$2.25

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

24

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
