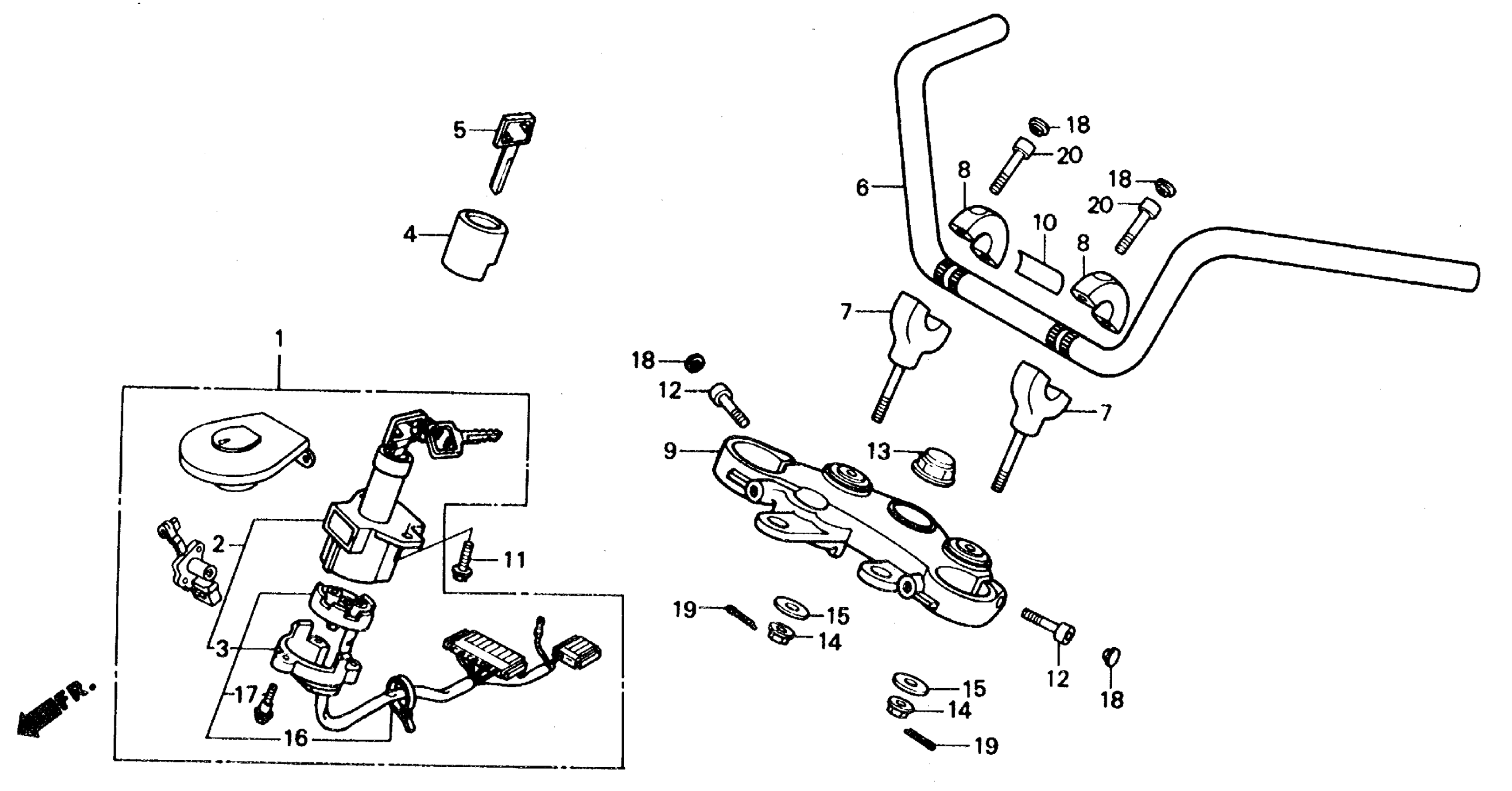

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 HANDLEBAR Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE)

35010-MK7-770

Unavailable

2

SWITCH ASSY. This part replaces 35100-MK7-770.

35100-MK7-771

Unavailable

3

BASE, CONTACT

35101-MK7-770

Unavailable

4

COVER, COMBINATION SWITCH

35105-MK7-000

Unavailable

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

6

HANDLEBAR (NOT AVAILABLE)

53100-MK7-000

Unavailable

7

HOLDER, HANDLE (LOWER)

53132-MK7-000

Unavailable

8

HOLDER (UPPER) (NOT AVAILABLE)

53235-MK7-000

Unavailable

9

BRIDGE, FORK TOP This part replaces 53240-MK7-000.

53240-MK7-010

Unavailable

10

LABEL, FR. FORK CAUTION (NOT AVAILABLE)

87517-MB1-770

Unavailable

11

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

12

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

13

NUT, STEERING STEM

90304-MK4-000

$19.56

14

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

15

WASHER, HANDLE HOLDER

90535-KB9-000

$6.14

16

BAND, SELF-LOCK

91058-MG9-681

$2.21

17

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

17

SCREW, TAPPING (3X16) This part replaces 91059-MK4-601.

91059-KY2-711

$2.97

18

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

19

PIN, SPLIT (2.0X12)

94201-20120

$1.49

20

BOLT, SOCKET (8X32)

96700-08032-00

$1.79
