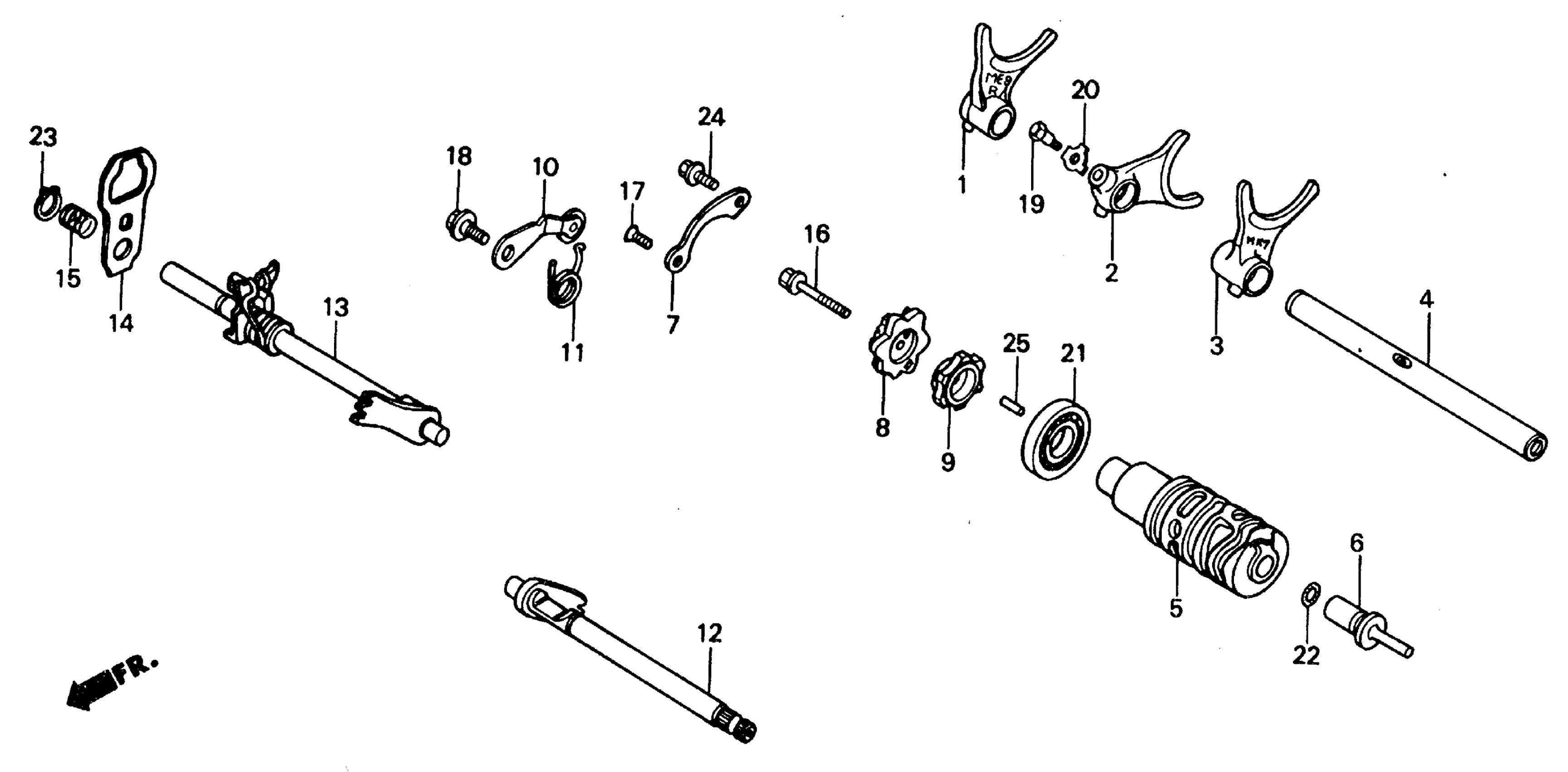

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT This part replaces 24211-ME9-000.

24211-MG7-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MB0-770

Unavailable

3

FORK, L. GEARSHIFT

24213-MK7-670

Unavailable

4

SHAFT, GEARSHIFT FORK

24261-ME9-000

Unavailable

5

DRUM, GEARSHIFT

24302-MK7-670

Unavailable

6

HOLDER, GEARSHIFT DRUM

24304-ME9-000

Unavailable

7

PLATE, SHIFT DRUM BEARING SETTING

24310-MK7-670

$10.13

8

CAM, GEARSHIFT (NOT AVAILABLE)

24411-MG8-771

Unavailable

9

ROTOR, POSITIVE STOPPER

24413-KA6-003

Unavailable

10

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-ME9-000

Unavailable

11

SPRING, GEARSHIFT DRUM STOPPER

24435-ME9-000

Unavailable

12

SPINDLE, GEARSHIFT (A)

24610-ME9-020

Unavailable

13

SPINDLE B, GEARSHIFT

24615-MG8-000

Unavailable

14

PLATE, GEARSHIFT

24621-MG8-000

Unavailable

15

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

16

BOLT, FLANGE (6X32)

90021-ME9-000

$2.93

17

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

18

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

18

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

19

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

20

WASHER, LOCK

90407-MB0-000

$2.66

21

BEARING, RADIAL BALL (17X32X7)

91006-MCK-A01

Unavailable

21

BEARING, RADIAL BALL (17X32X7) This part replaces 91006-MG8-003.

91006-MCK-A01

Unavailable

22

O-RING (10X1.6)

91301-200-000

$3.01

23

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

24

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

25

ROLLER (3X10)

96222-30100

$1.49
