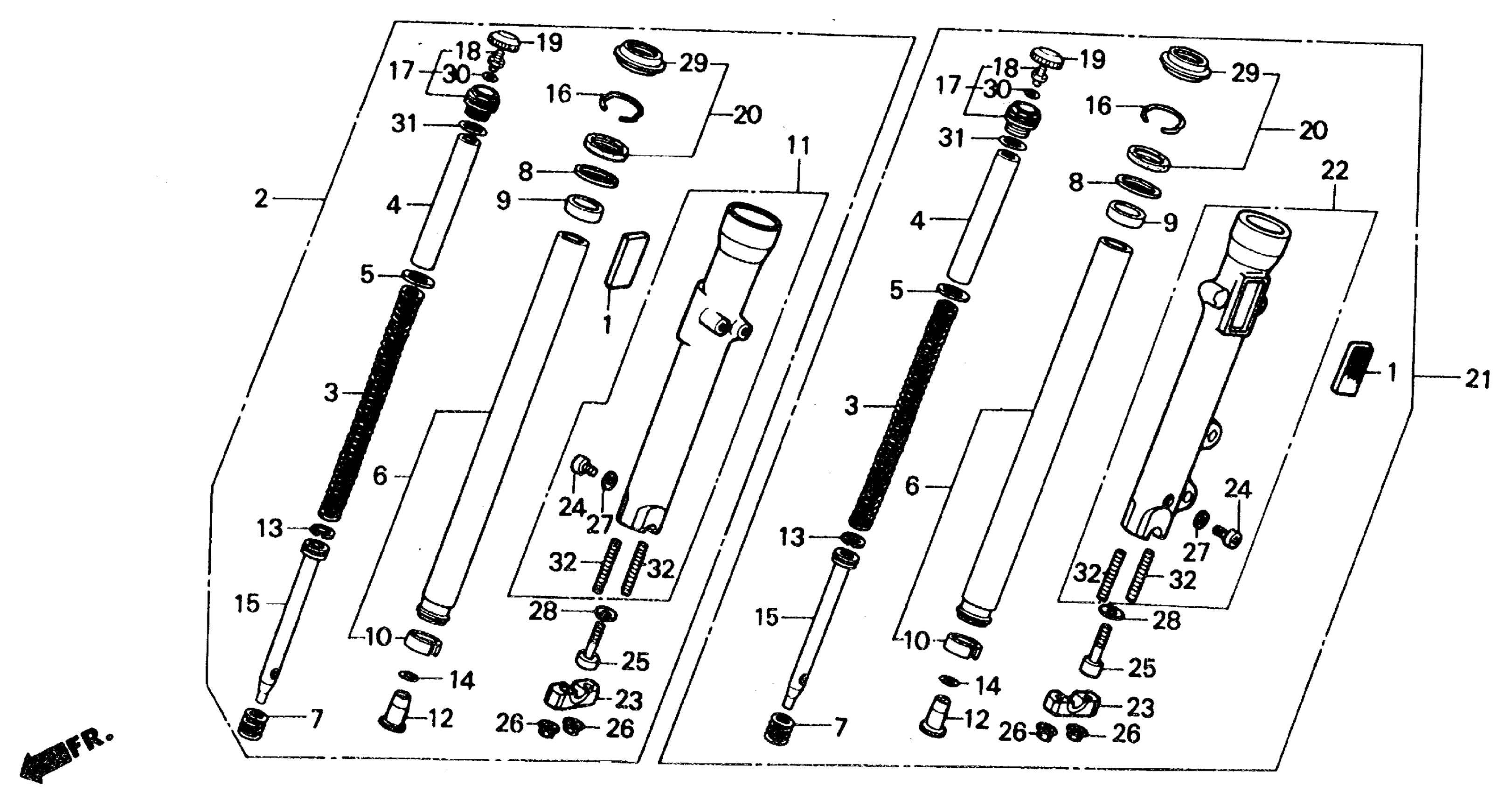

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-KR3-671

$31.20

2

FORK ASSY., R. FR. (SHOWA)

51400-MK7-671

Unavailable

3

SPRING, FR. FORK (SHOWA)

51401-MK7-671

Unavailable

4

COLLAR, SPRING

51402-ME9-003

Unavailable

5

PLATE, SPRING JOINT

51403-ME5-003

Unavailable

6

PIPE, FR. FORK (SHOWA) This part replaces 51410-MK7-671.

51410-MR6-671

Unavailable

6

PIPE, FR. FORK (SHOWA)

51410-MR6-671

Unavailable

7

SPRING, REBOUND

51411-ME5-003

Unavailable

8

RING, BACK-UP

51412-463-003

$7.75

9

BUSH, FORK PIPE

51414-463-003

$15.77

10

BUSH, SLIDER This part replaces 51415-MK7-671.

51415-MN0-003

Unavailable

10

BUSH, SLIDER

51415-MN0-003

Unavailable

11

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-MK7-671

Unavailable

12

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MK7-671

Unavailable

13

RING, PISTON

51437-ME5-003

Unavailable

14

RING, PISTON STOPPER

51439-340-300

Unavailable

15

PIPE, SEAT

51440-MK7-671

Unavailable

16

RING, OIL SEAL STOP

51447-MK7-671

Unavailable

17

BOLT ASSY., FR. FORK

51450-MK3-003

Unavailable

18

VALVE, AIR (SHOWA)

51456-469-013

$33.69

19

CAP, AIR VALVE

51457-MG1-003

Unavailable

20

SEAL SET, FR. FORK

51490-MB9-782

$38.57

21

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MK7-671

Unavailable

22

CASE, L. (LOWER) (SHOWA)

51521-MK7-671

Unavailable

23

HOLDER, AXLE

51634-MG8-003

Unavailable

24

BOLT, SOCKET (6X8)

90111-MK7-671

Unavailable

25

BOLT, SOCKET (8MM)

90116-KV3-701

$3.89

25

BOLT, SOCKET (8MM) This part replaces 90116-ML4-003.

90116-KV3-701

$3.89

26

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

26

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

27

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

28

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

29

DUST SEAL

91254-463-003

$22.51

30

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

30

O-RING (5.8X1.9)

91305-323-000

$2.92

31

O-RING (31.2X2.4)

91356-MK3-003

Unavailable

32

BOLT 2, STUD (8X32)

92900-08032-3E

Unavailable
