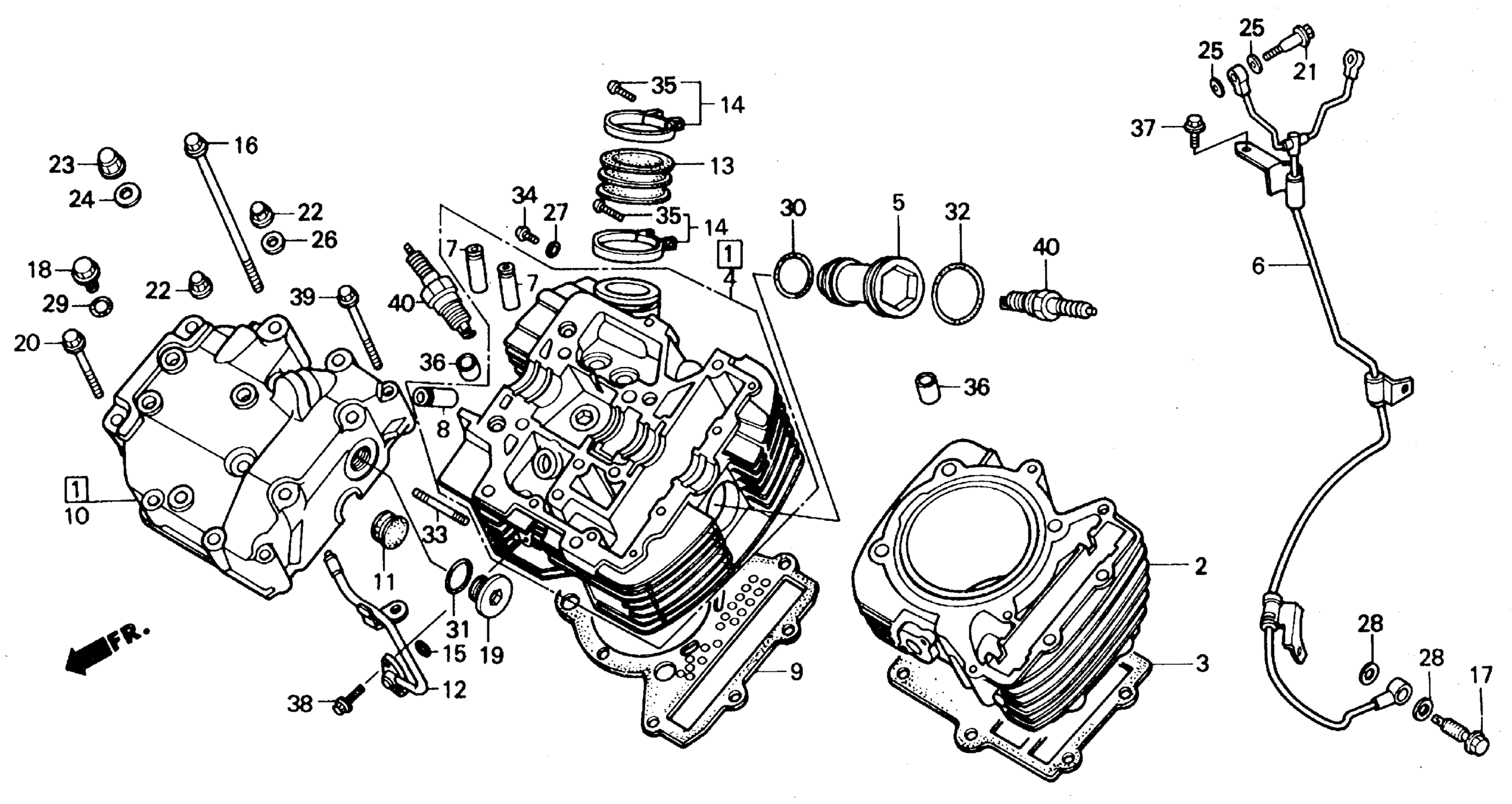

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 FRONT CYLINDER HEAD Diagram

#

Description
Price

2

CYLINDER, FR. (NOT AVAILABLE)

12100-MK7-670

Unavailable

3

GASKET, CYLINDER

12191-MK7-671

Unavailable

4

CYLINDER HEAD, FR. (NOT AVAILABLE)

12210-MK7-671

Unavailable

5

SLEEVE, PLUG

12225-ME9-000

Unavailable

6

PIPE A, OIL PASSAGE (NOT AVAILABLE)

12230-MK7-670

Unavailable

7

GUIDE, VALVE

12231-MG8-305

$20.08

8

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

8

GUIDE, IN VALVE

12233-MG8-405

Unavailable

9

GASKET, CYLINDER HEAD This part replaces 12251-ML5-003.

12251-MR5-670

Unavailable

9

GASKET, CYLINDER HEAD

12251-MR5-670

Unavailable

10

COVER, FR. CYLINDER HEAD

12310-MK7-673

Unavailable

11

PLUG, CAMSHAFT

12312-ME9-750

$10.12

13

INSULATOR, CARBURETOR

16211-MK7-770

Unavailable

14

BAND, INSULATOR

16219-ME9-000

$10.37

16

BOLT, FLANGE (8X150)

90015-MG8-000

$6.07

17

BOLT, OIL CONTROL

90045-ME9-000

Unavailable

18

BOLT, SEALING (14MM)

90047-MK7-671

$14.49

19

BOLT, SEALING (20MM)

90048-MK7-670

Unavailable

20

BOLT, FLANGE (8X55) This part replaces 90051-ME9-000.

95701-08055-00

$2.28

20

BOLT, FLANGE (8X55)

95701-08055-00

$2.28

21

BOLT, SPECIAL (7X38)

90130-MK7-671

Unavailable

22

NUT, CAP (8MM)

90208-438-000

$2.98

23

NUT, CAP (10MM) This part replaces 90210-438-000.

90201-HA0-000

$6.45

24

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

25

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

26

WASHER, SEALING (8MM)

90441-MG8-000

$2.28

27

WASHER, SEALING (5MM)

90452-323-000

$1.59

28

WASHER, OIL BOLT

90545-300-000

$3.99

29

O-RING (13.8X1.9) This part replaces 91301-KJ9-000.

91301-PC0-003

$2.66

29

O-RING (13.8X1.9)

91301-PC0-003

$2.66

30

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

31

O-RING (19.8X1.9) (ARAI) This part replaces 91308-MG7-003.

91308-PA9-003

$3.85

31

O-RING (19.8X1.9) (ARAI)

91308-PA9-003

$3.85

32

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

33

BOLT 2, STUD (8X35)

92900-08035-0B

$2.46

33

BOLT 2, STUD (8X35) This part replaces 92900-08035-0E.

92900-08035-0B

$2.46

34

SCREW, PAN (5X8)

93500-05008-0A

$1.49

35

SCREW, PAN (5X25)

93500-05025-0G

$1.49

35

SCREW-WASHER (5X20)

93891-05020-07

$1.49

35

SCREW-WASHER (5X20) This part replaces 93891-05020-17.

93891-05020-07

$1.49

36

PIN, DOWEL (14X20)

94301-14200

$2.28

37

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

39

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

40

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

40

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

40

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

40

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

40

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

40

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
