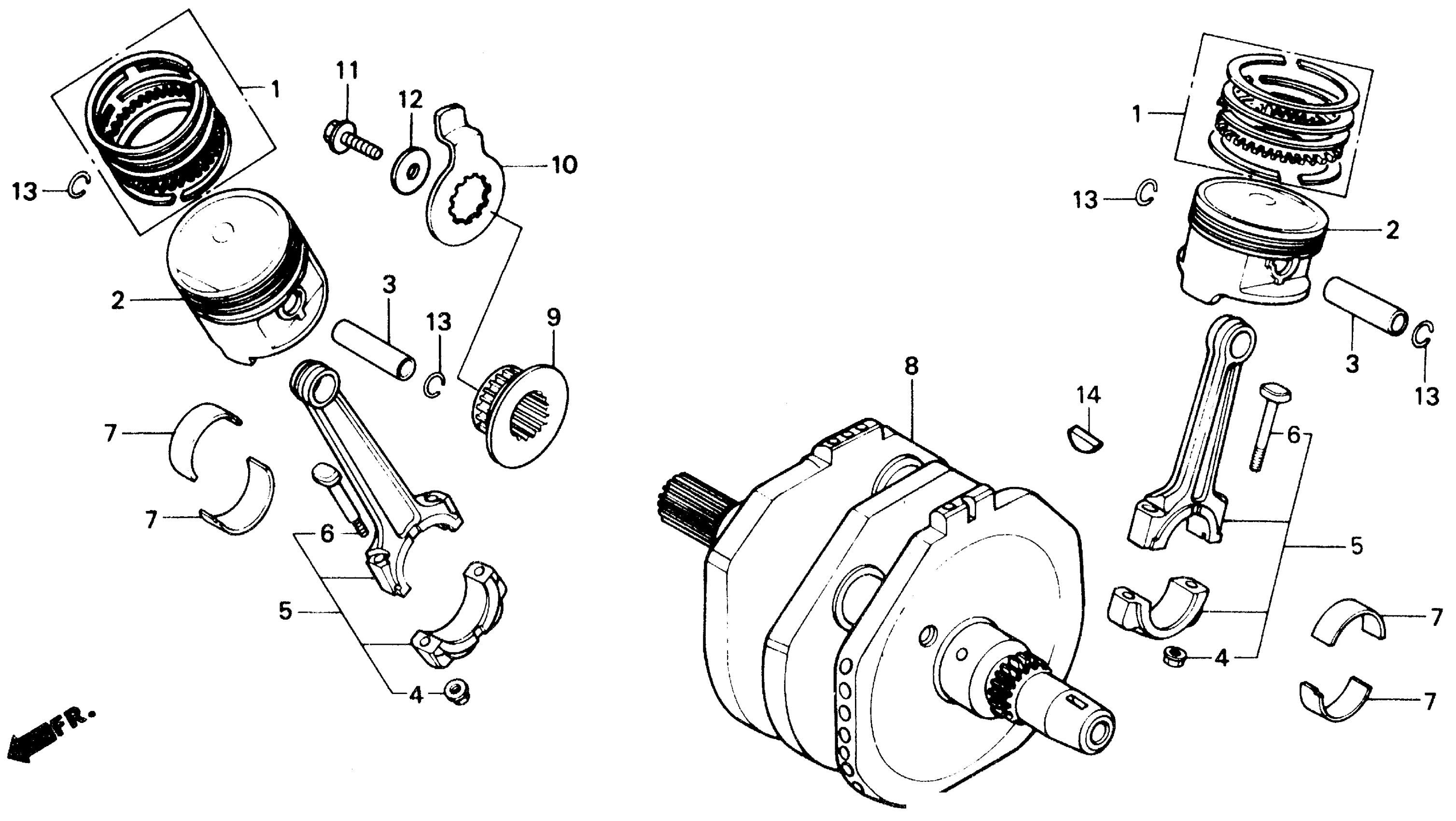

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 CRANKSHAFT Diagram

RING SET, PISTON (STD) (RIKEN)

13011-ME9-771

Unavailable

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-ME9-772.

13011-ME9-771

Unavailable

PISTON (NOT AVAILABLE)

13101-MK7-670

Unavailable

PIN, PISTON

13111-ME9-000

$19.77

NUT, CONNECTING ROD

13205-ME2-000

$5.26

ROD ASSY., CONNECTING (A) (NOT AVAILABLE)

13207-ME9-750

Unavailable

ROD ASSY., CONNECTING (B) (NOT AVAILABLE)

13208-ME9-750

Unavailable

ROD ASSY., CONNECTING (D) This part replaces 13209-ME9-750.

13210-ME9-405

Unavailable

ROD ASSY., CONNECTING (D)

13210-ME9-405

Unavailable

ROD ASSY., CONNECTING (D) This part replaces 13210-ME9-750.

13210-ME9-405

Unavailable

BOLT, CONNECTING ROD

13213-ME2-000

$10.19

BEARING D, CONNECTING ROD (GREEN)

13218-ME9-003

Unavailable

BEARING E, CONNECTING ROD (YELLOW)

13219-ME9-003

Unavailable

BEARING F, CONNECTING ROD (PINK) (NOT AVAILABLE)

13220-ME9-003

Unavailable

CRANKSHAFT

13300-MK7-670

Unavailable

SPROCKET, CAM CHAIN DRIVE

14311-ME9-000

Unavailable

PLATE, PULSER

23105-MK7-670

Unavailable

BOLT, FLANGE (12X35)

90025-MK7-670

$12.28

WASHER (12.2X33X3.2)

90401-371-000

$6.43

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.49

KEY, WOODRUFF (25X14)

90741-413-000

$2.56
