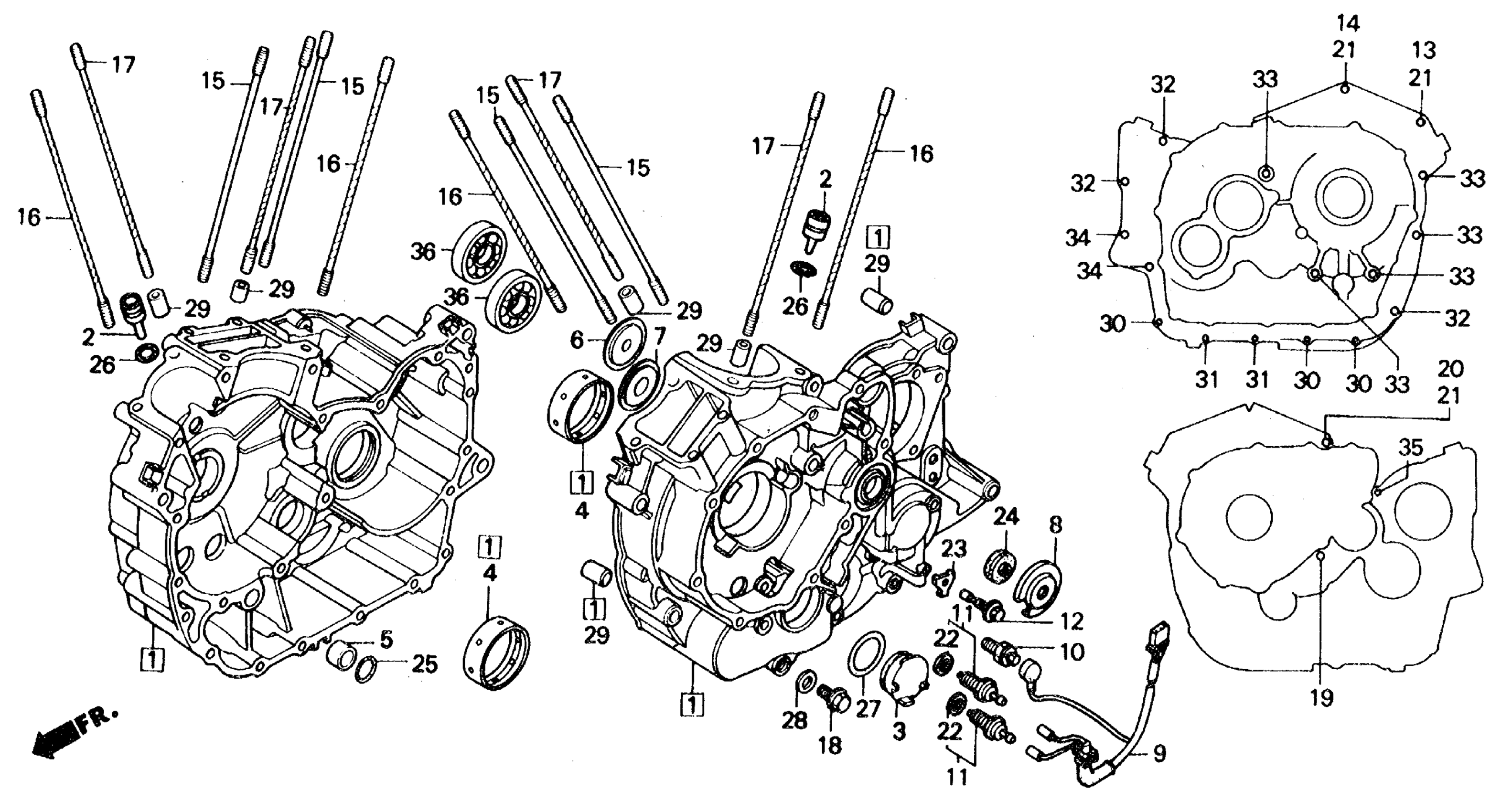

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11000-MK7-670.

11000-ML5-000

Unavailable

1

CRANKCASE SET

11000-ML5-000

Unavailable

2

JET, OIL

11146-ME9-000

Unavailable

3

PLUG, L. CRANKCASE

11211-MK7-770

$29.02

4

BEARING A, MAIN (BLUE)

13325-ME9-305

Unavailable

4

BEARING B, MAIN (BLACK)

13326-ME9-305

Unavailable

4

BEARING C, MAIN (BROWN)

13327-ME9-305

Unavailable

5

COLLAR, O-RING

15155-300-000

$3.47

6

GUIDE, LIFTER ROD

15171-ME9-000

Unavailable

7

PLATE, ORIFICE

15172-MK7-770

Unavailable

8

PLATE, SETTING (NOT AVAILABLE)

22851-ME9-000

Unavailable

9

HARNESS A, SUB (NOT AVAILABLE)

32101-MK7-000

Unavailable

10

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

10

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

11

SWITCH ASSY., NEUTRAL

35600-425-023

$21.73

12

BOLT, ORIFICE (1.6MM)

90002-MG8-000

$18.00

13

BOLT, FLANGE (8X120)

90005-MK7-670

Unavailable

14

BOLT, FLANGE (8X135)

90006-MK7-670

$3.82

15

BOLT, STUD (8X252)

90011-ME9-003

Unavailable

16

BOLT, STUD (10X270) This part replaces 90012-MK7-671.

90012-MR5-670

Unavailable

16

BOLT, STUD (10X270)

90012-MR5-670

Unavailable

17

BOLT, STUD (10X259) This part replaces 90013-MK7-671.

90013-MR5-670

Unavailable

17

BOLT, STUD (10X259)

90013-MR5-670

Unavailable

18

BOLT, PLUG (14MM)

90081-MC7-000

$10.96

19

BOLT, SOCKET (8X105)

90122-ME9-000

Unavailable

20

BOLT, SOCKET (8X120)

90126-MK7-670

Unavailable

21

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

22

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

23

PLATE, SEALING (6MM)

90444-MG8-000

$4.89

24

OIL SEAL (8X25X7)

91204-MG7-003

Unavailable

25

O-RING (13.8X2.5)

91303-377-000

$3.42

26

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

27

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

28

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

29

PIN, DOWEL (14X20)

94301-14200

$2.28

30

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

31

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

32

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

33

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

34

BOLT, FLANGE (8X100)

95701-08100-00

$2.15

35

BOLT, FLANGE (6X100)

95801-06100-00

$1.74

36

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
