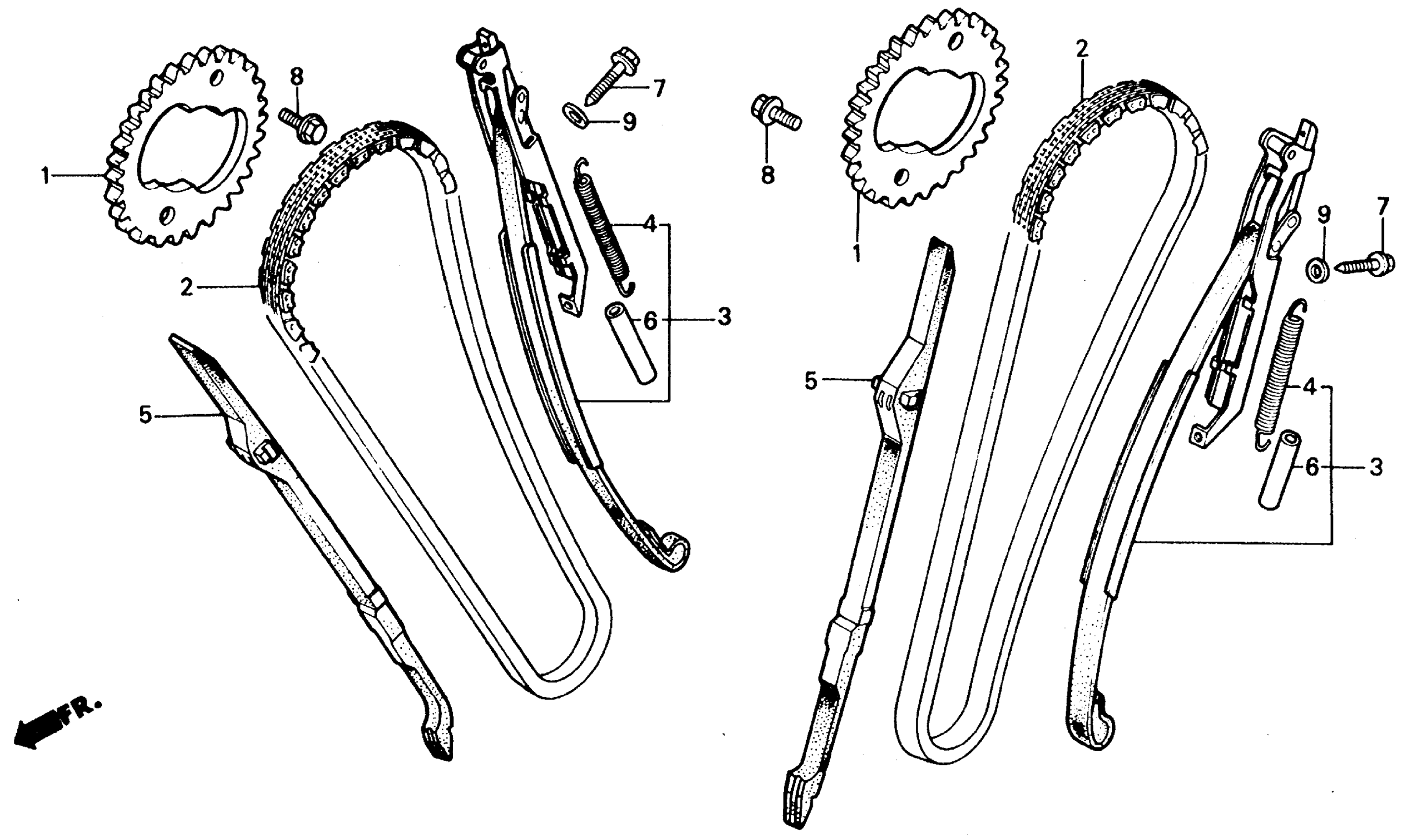

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 CAM CHAIN Diagram

SPROCKET, CAM (42T)

14322-ME9-000

Unavailable

CHAIN, CAM This part replaces 14401-ME9-003.

14401-MR5-671

Unavailable

CHAIN, CAM This part replaces 14401-ME9-004.

14401-MR5-671

Unavailable

CHAIN, CAM

14401-MR5-671

Unavailable

TENSIONER, CAM CHAIN

14510-MK7-770

Unavailable

SPRING, CAM CHAIN TENSIONER (NIPPON HATSUJO)

14516-MG8-003

$4.78

GUIDE, CAM CHAIN

14522-MK7-770

Unavailable

TUBE, TENSIONER SPRING

14545-MK7-670

Unavailable

BOLT, FLANGE (6X24)

90001-MEM-670

$1.80

BOLT, FLANGE (6X24) This part replaces 90016-MG8-000.

90001-MEM-670

$1.80

BOLT, UBS (7X15) This part replaces 90026-ME9-000.

90026-MM8-000

$2.92

BOLT, UBS (7X15)

90026-MM8-000

$2.92

WASHER, SEALING (6MM)

90441-706-000

$1.49
