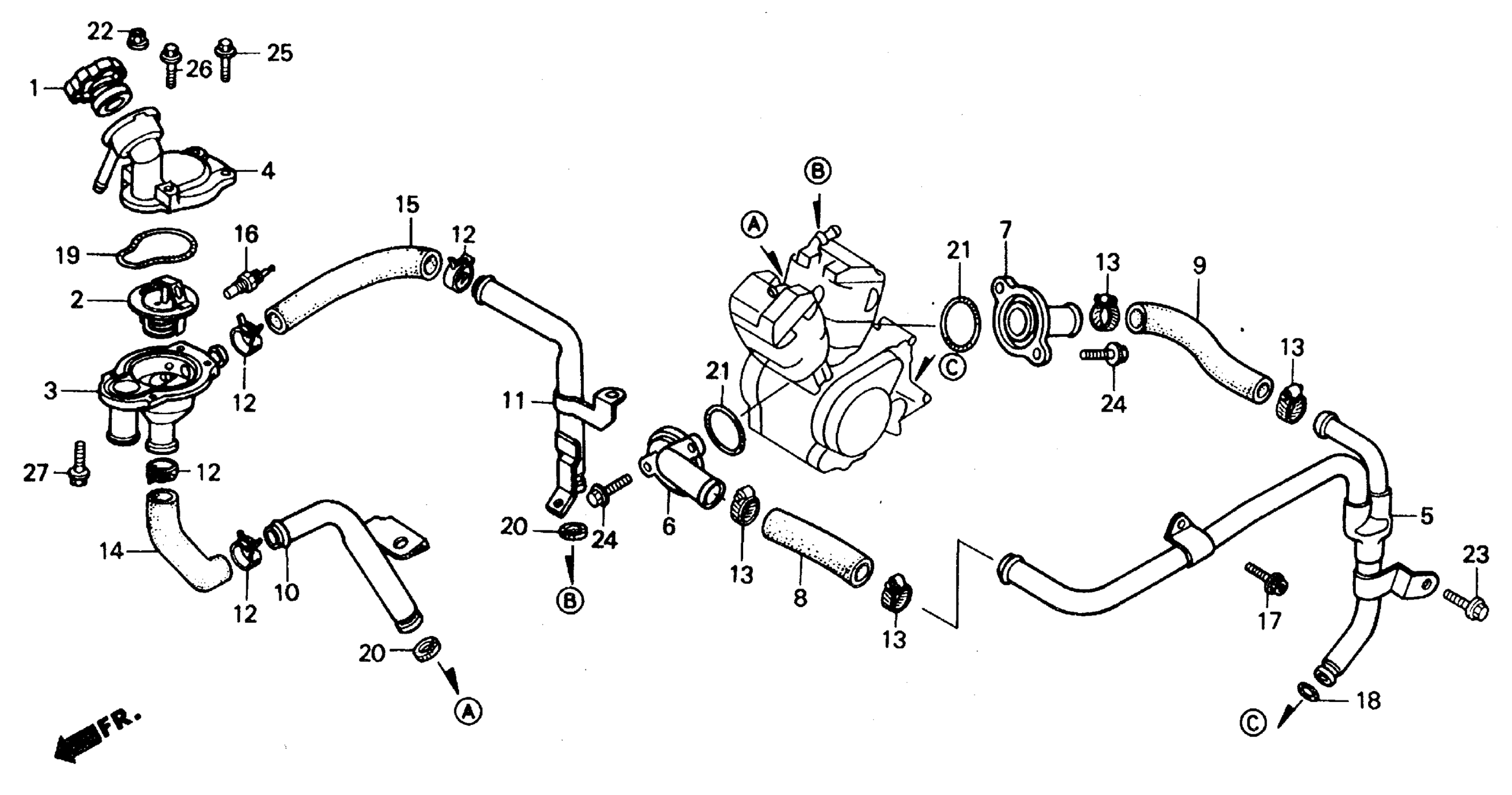

Honda VT700CA (86) SHADOW, JPN, VIN# JH2RC190-GM200011 TO JH2RC190-GM211132 WATER PUMP Diagram

#

Description
Price

1

CAP, RADIATOR This part replaces 19045-MB3-000.

19045-MZ3-405

$29.17

2

THERMOSTAT

19300-MB0-003

$47.39

3

CASE, THERMOSTAT | Use up to Engine SN 2200180 This part replaces 19311-MK7-670.

19311-MK7-671

Unavailable

3

CASE, THERMOSTAT

19311-MK7-671

Unavailable

4

NECK, FILLER | Use up to Engine SN 2200180 This part replaces 19318-MK7-670.

19318-MK7-671

Unavailable

4

NECK, FILLER | Use from Engine SN 2200181

19318-MK7-671

Unavailable

5

PIPE, INLET WATER This part replaces 19501-MG8-000.

19501-MM8-790

Unavailable

5

PIPE, INLET WATER This part replaces 19501-MM8-000.

19501-MM8-790

Unavailable

5

PIPE, INLET WATER

19501-MM8-790

Unavailable

6

JOINT A, WATER HOSE

19503-MG8-000

Unavailable

7

JOINT B, WATER HOSE

19504-MG8-000

Unavailable

8

HOSE A, IN. WATER

19505-MG8-000

Unavailable

9

HOSE B, IN. WATER (NOT AVAILABLE)

19506-MG8-000

Unavailable

10

PIPE, FR. OUTLET WATER (NOT AVAILABLE) This part replaces 19511-MK7-670.

19511-MK7-770

Unavailable

11

PIPE, RR. OUTLET WATER (NOT AVAILABLE) This part replaces 19512-MK7-670.

19512-MK7-770

Unavailable

12

CLIP B, HOSE

19514-ME9-003

$3.90

13

CLAMP B, WATER HOSE

19517-MB6-000

Unavailable

14

HOSE A, WATER OUTLET (NOT AVAILABLE)

19521-MK7-670

Unavailable

15

HOSE B, WATER OUTLET (NOT AVAILABLE) | Use up to Engine SN 2200084 This part replaces 19522-MK7-670.

19522-MK7-671

Unavailable

15

HOSE B, WATER OUTLET (NOT AVAILABLE) | Use from Engine SN 2200085

19522-MK7-671

Unavailable

16

THERMO UNIT (DENSO)

37750-PC1-004

$73.04

17

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.54

18

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.00

19

O-RING | Use up to Engine SN 2200180 This part replaces 91307-MK7-670.

91307-MK7-671

Unavailable

19

O-RING

91307-MK7-671

Unavailable

20

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.20

20

SEAL, WATER PIPE This part replaces 91315-ME9-004.

91315-ME9-003

$4.20

21

O-RING

91356-169-003

$2.80

22

NUT, FLANGE (6MM)

94050-06080

$0.59

23

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.48

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

24

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

25

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.68

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

26

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.38

26

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

27

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$1.97

27

BOLT, FLANGE (6X35)

96001-06035-07

$1.97
