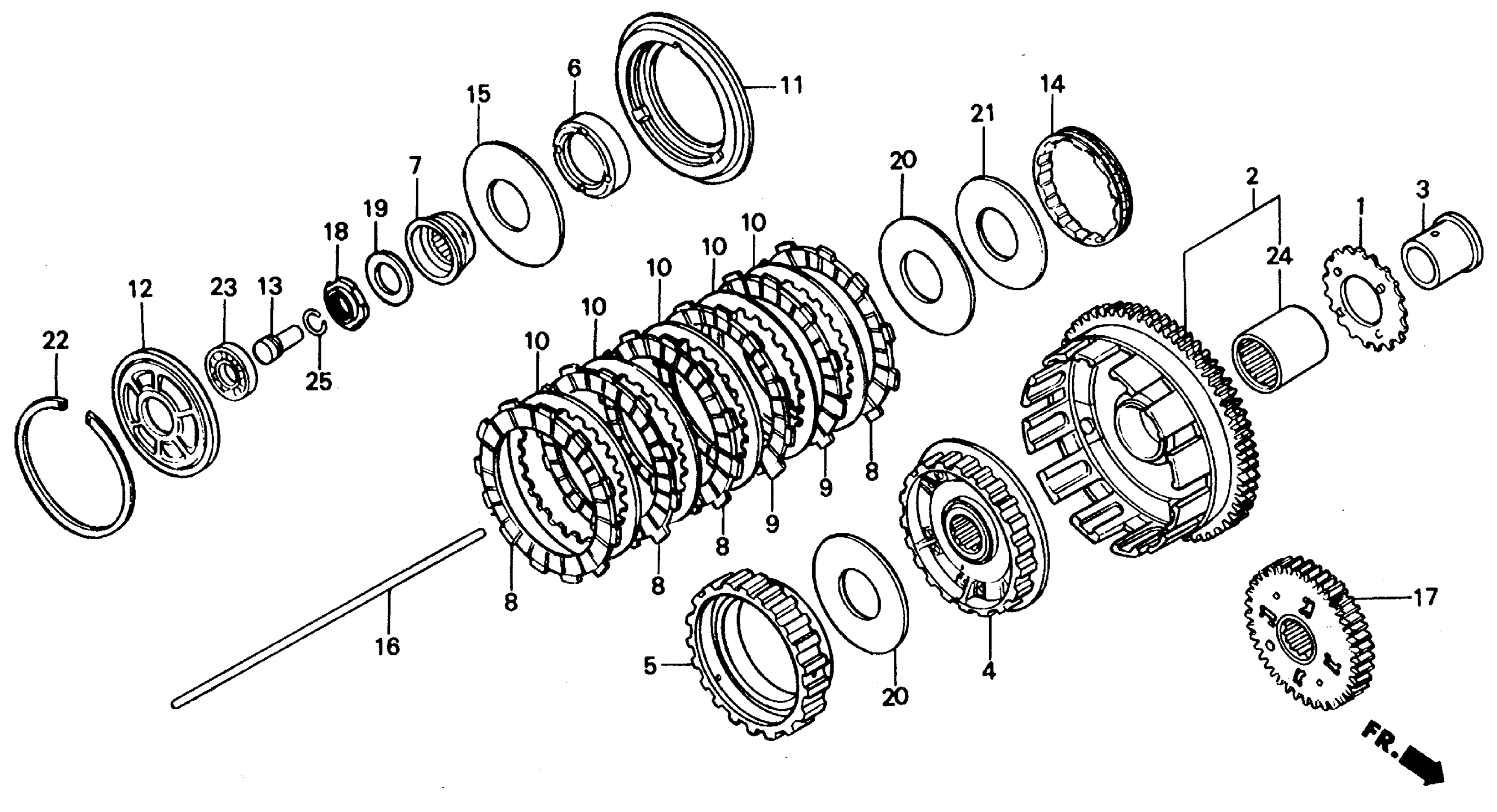

Honda VT700CA (86) SHADOW, JPN, VIN# JH2RC190-GM200011 TO JH2RC190-GM211132 CLUTCH 86 Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T) (NOT AVAILABLE)

15131-MB0-000

Unavailable

2

CLUTCH (OUTER)

22100-MK7-670

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-ME9-000

Unavailable

4

CENTER A, CLUTCH

22120-MB0-770

Unavailable

5

CENTER B, CLUTCH

22131-MK7-670

Unavailable

6

INNER, ONE-WAY CLUTCH

22141-MB0-770

Unavailable

7

PLATE, SPRING SETTING

22151-MB0-770

Unavailable

8

DISK, CLUTCH FRICTION This part replaces 22201-MB0-003.

22201-MM5-000

$28.39

8

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

9

DISK A, CLUTCH FRICTION This part replaces 22201-ME9-000.

22201-MG8-010

$29.93

9

DISK A, CLUTCH FRICTION This part replaces 22201-MG8-000.

22201-MG8-010

$29.93

9

DISK A, CLUTCH FRICTION

22201-MG8-010

$29.93

10

PLATE, CLUTCH

22321-MG8-000

$15.44

10

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

11

PLATE, CLUTCH PRESSURE

22351-MB0-771

Unavailable

12

PLATE, CLUTCH LIFTER

22352-MB0-770

Unavailable

13

PIECE, CLUTCH JOINT

22366-KE8-000

Unavailable

14

CLUTCH, ONE-WAY

22425-MB0-772

Unavailable

15

SPRING, CLUTCH

22441-MB0-771

Unavailable

16

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-ME9-000

Unavailable

17

GEAR, PRIMARY DRIVE

23110-MK7-670

Unavailable

18

NUT, LOCK (22MM) This part replaces 90231-MK7-670.

90231-MZ7-000

$11.54

19

WASHER (22X33)

90407-MJ0-000

$6.49

20

WASHER (44X85X1.6) This part replaces 90461-MB0-770.

90461-MJ0-000

Unavailable

20

WASHER (44X85X1.6)

90461-MJ0-000

Unavailable

21

WASHER (44X74X3.2) This part replaces 90462-MB0-770.

90462-MJ0-000

Unavailable

21

WASHER (44X74X3.2)

90462-MJ0-000

Unavailable

22

CIRCLIP (INNER) (95MM)

90601-MB0-771

$11.30

23

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

24

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

24

BEARING, NEEDLE (35X42X30) (TOYO) This part replaces 91024-MB0-004.

91024-MB0-003

$86.11

25

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
