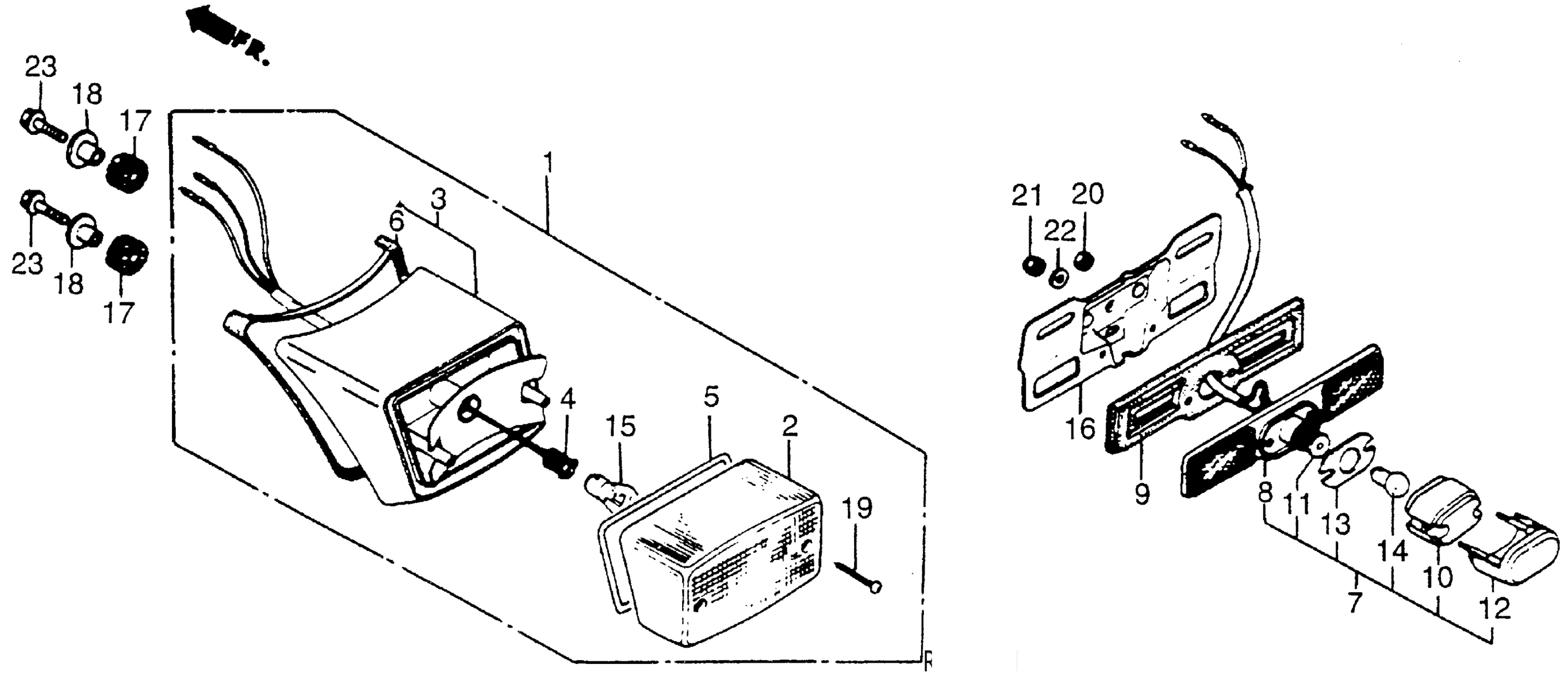

Honda VT700CA (85) SHADOW, JPN, VIN# JH2RC190-FM100001 TO JH2RC190-FM113279 TAILLIGHT Diagram

TAILLIGHT UNIT This part replaces 33701-ME9-770.

33701-ME9-405

Unavailable

LENS, TAILLIGHT This part replaces 33702-MB1-671.

33702-MB1-672

Unavailable

LENS, TAILLIGHT

33702-MB1-672

Unavailable

BASE, TAILLIGHT (NOT AVAILABLE)

33703-MB1-671

Unavailable

CORD,TAILLIGHT This part replaces 33708-ME9-770.

33708-MB1-405

$10.16

GASKET, TAILLIGHT (NOT AVAILABLE)

33709-MB1-003

Unavailable

GASKET, TAILLIGHT BASE (NOT AVAILABLE)

33718-MB1-003

Unavailable

LIGHT ASSY., LICENSE (NOT AVAILABLE)

33720-ME9-770

Unavailable

BASE

33721-MB1-671

$90.46

GASKET, LICENSE LIGHT

33721-ME9-000

Unavailable

LENS, LICENSE LIGHT This part replaces 33722-MB1-003.

33722-MB1-013

$19.68

LENS, LICENSE

33722-MB1-013

$19.68

WIRE, LICENSE LIGHT

33725-MB4-671

Unavailable

WIRE, LICENSE LIGHT (NOT AVAILABLE) This part replaces 33725-ME9-770.

33725-MB4-671

Unavailable

COVER, LICENSE

33727-ME9-003

Unavailable

GASKET, LENS

33729-MB1-003

$6.30

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

BULB, TAILLIGHT (12V27/8W) (STANLEY)

34906-425-771

$4.40

BRACKET, NUMBER PLATE

84701-ME9-670

Unavailable

RUBBER, TAILLIGHT SETTING

84703-425-000

$4.72

COLLAR (6.2X12)

90501-425-000

$4.69

SCREW, TAPPING (4X30)

93901-34710

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

NUT, CAP (4MM)

94021-04020-0S

Unavailable

WASHER, PLAIN (4MM)

94103-04000

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
