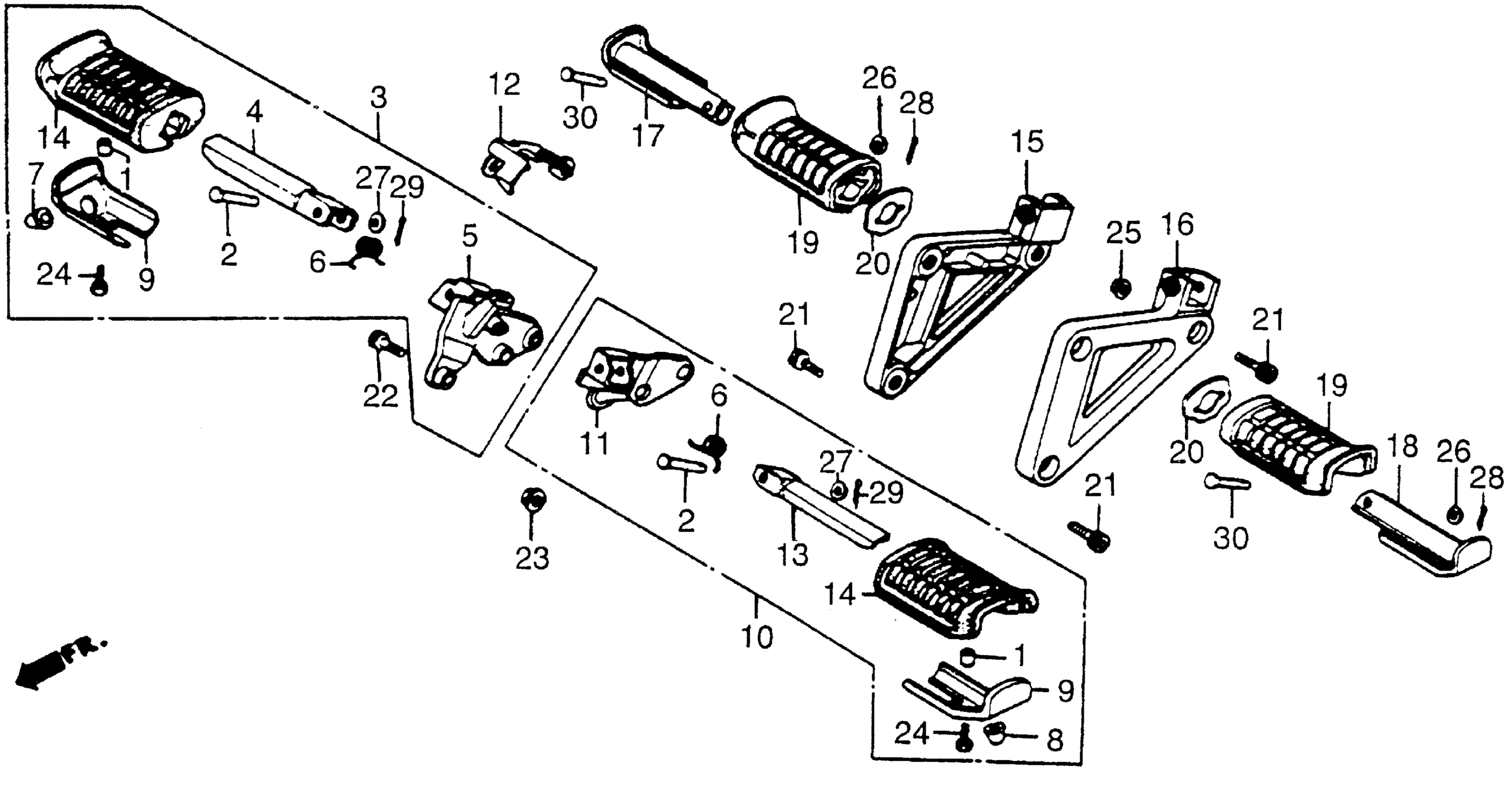

Honda VT700CA (85) SHADOW, JPN, VIN# JH2RC190-FM100001 TO JH2RC190-FM113279 STEP Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.92

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

STEP ASSY., R. MAIN (NOT AVAILABLE)

50610-ME9-670

Unavailable

4

BAR, R. FOOTPEG

50612-MB1-000

Unavailable

4

BAR, R. FOOTPEG (NOT AVAILABLE) This part replaces 50612-ME9-000.

50612-MB1-000

Unavailable

5

BRACKET, R. STEP

50615-ME9-670

Unavailable

6

SPRING, STEP RETURN

50617-195-000

Unavailable

7

SLIDER, STEP

50618-MB1-000

$4.13

8

SLIDER, STEP

50618-MF5-000

Unavailable

9

STOPPER, STEP RUBBER

50619-MB1-000

Unavailable

10

STEP ASSY., L. MAIN (NOT AVAILABLE)

50620-ME9-670

Unavailable

11

BRACKET, L. STEP (NOT AVAILABLE)

50625-ME9-670

Unavailable

12

COVER, STEP

50626-ME9-670

Unavailable

13

BAR, L. FOOTPEG

50642-MB1-000

Unavailable

13

BAR, L. FOOTPEG (NOT AVAILABLE) This part replaces 50642-ME9-000.

50642-MB1-000

Unavailable

14

RUBBER, MAIN FOOTPEG

50661-ME9-000

Unavailable

15

HOLDER, R. PILLION STEP (NOT AVAILABLE)

50680-ME9-000

Unavailable

16

HOLDER, L. PILLION STEP (NOT AVAILABLE)

50690-ME9-000

Unavailable

17

BAR, R. PILLION STEP (NOT AVAILABLE)

50711-ME9-000

Unavailable

18

BAR, L. PILLION STEP

50712-ME9-000

Unavailable

19

RUBBER, PILLION STEP

50713-MB1-000

$15.82

20

WASHER, PILLION STEP

50714-MB1-000

Unavailable

21

BOLT, SOCKET (8X22)

90119-KV0-000

Unavailable

21

BOLT, SOCKET (8X22) This part replaces 90119-MB4-000.

90119-KV0-000

Unavailable

22

BOLT, SOCKET (8X22)

90142-ME5-000

Unavailable

23

NUT, FLANGE (10MM)

90303-428-900

$3.35

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

25

NUT, FLANGE (8MM)

94050-08080

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

PIN, COTTER (1.6X10)

94201-16100

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

PIN C, PILLION FOOTPEG

95015-83000

$2.41
