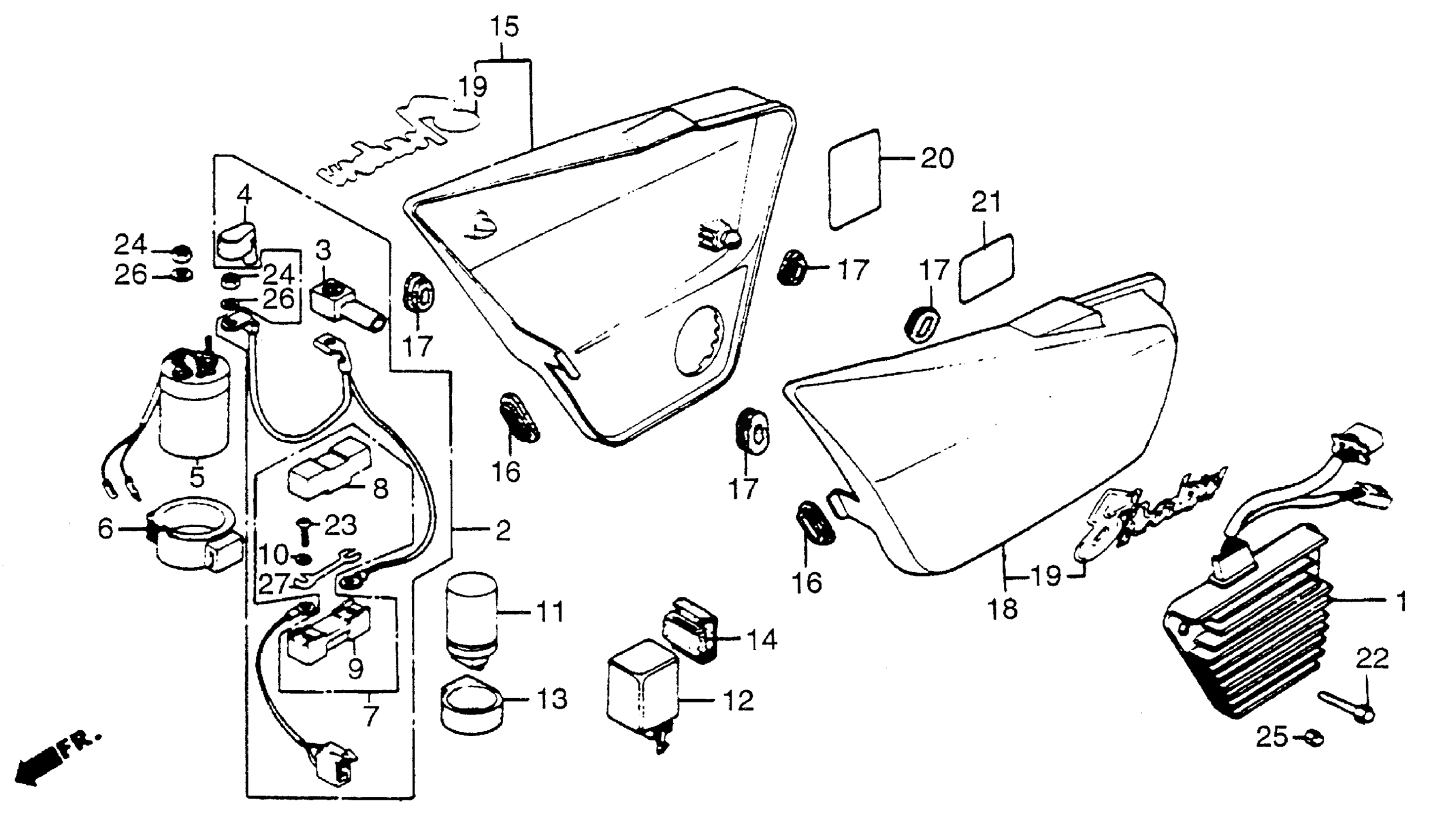

Honda VT700CA (85) SHADOW, JPN, VIN# JH2RC190-FM100001 TO JH2RC190-FM113279 SIDE COVER Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-ME9-008

Unavailable

2

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-ME9-000

Unavailable

3

COVER, BATTERY (NOT AVAILABLE)

32414-ME9-000

Unavailable

4

COVER B, MAGNETIC SWITCH

32416-460-000

Unavailable

5

SWITCH ASSY., STARTER MAGNETIC

35850-ME9-770

Unavailable

6

RUBBER, SHOCK ABSORBER (NOT AVAILABLE)

35856-ME9-000

Unavailable

7

BOX, MAIN FUSE

38250-ME9-005

Unavailable

8

COVER (NOT AVAILABLE)

38251-KJ9-000

Unavailable

8

COVER (NOT AVAILABLE) This part replaces 38251-MA6-005.

38251-KJ9-000

Unavailable

9

BASE

38252-ME9-005

Unavailable

10

WASHER, PLAIN (3X10)

38253-422-005

Unavailable

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MB0-004.

38301-KK9-952

$67.94

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

12

RELAY, TURN SIGNAL (TATEISHI) This part replaces 38301-ME9-771.

38301-MF5-771

$81.63

12

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$81.63

12

RELAY, TURN SIGNAL (TATEISHI) This part replaces 38301-MF5-773.

38301-MF5-771

$81.63

13

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-ME9-770.

38306-ME9-771

Unavailable

13

SUSPENSION, TURN SIGNAL RELAY

38306-ME9-771

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY

38306-ME9-772

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY

38306-ME9-771

Unavailable

15

COVER SET, R. SIDE *NH1Z* (WL) (BLACK-Z)

835A0-ME9-780ZA

Unavailable

15

COVER SET, R. SIDE *R101CU* (WL) (CANDY GLORY RED-U) (NOT AVAILABLE)

835A0-ME9-780ZB

Unavailable

16

GROMMET, SIDE COVER

83551-ME9-000

$3.24

17

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

18

COVER SET, L. SIDE *NH1Z* (WL) (BLACK-Z)

836A0-ME9-780ZA

Unavailable

18

COVER SET, L. SIDE *R101CU* (WL) (CANDY GLORY RED-U)

836A0-ME9-780ZB

Unavailable

19

MARK, SIDE COVER

83605-ME9-780

Unavailable

21

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-ME9-670

Unavailable

22

BOLT, CAP (6X35)

92500-06035-0G

Unavailable

23

SCREW, PAN (3X8)

93500-03008-0H

$1.49

24

NUT, HEX. (6MM)

94002-06080-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

25

NUT, CAP (6MM)

94021-06070-0S

$1.62

26

WASHER, SPRING (6MM)

94111-06800

$1.49

27

FUSE F (30A)

98200-53000

$1.49
