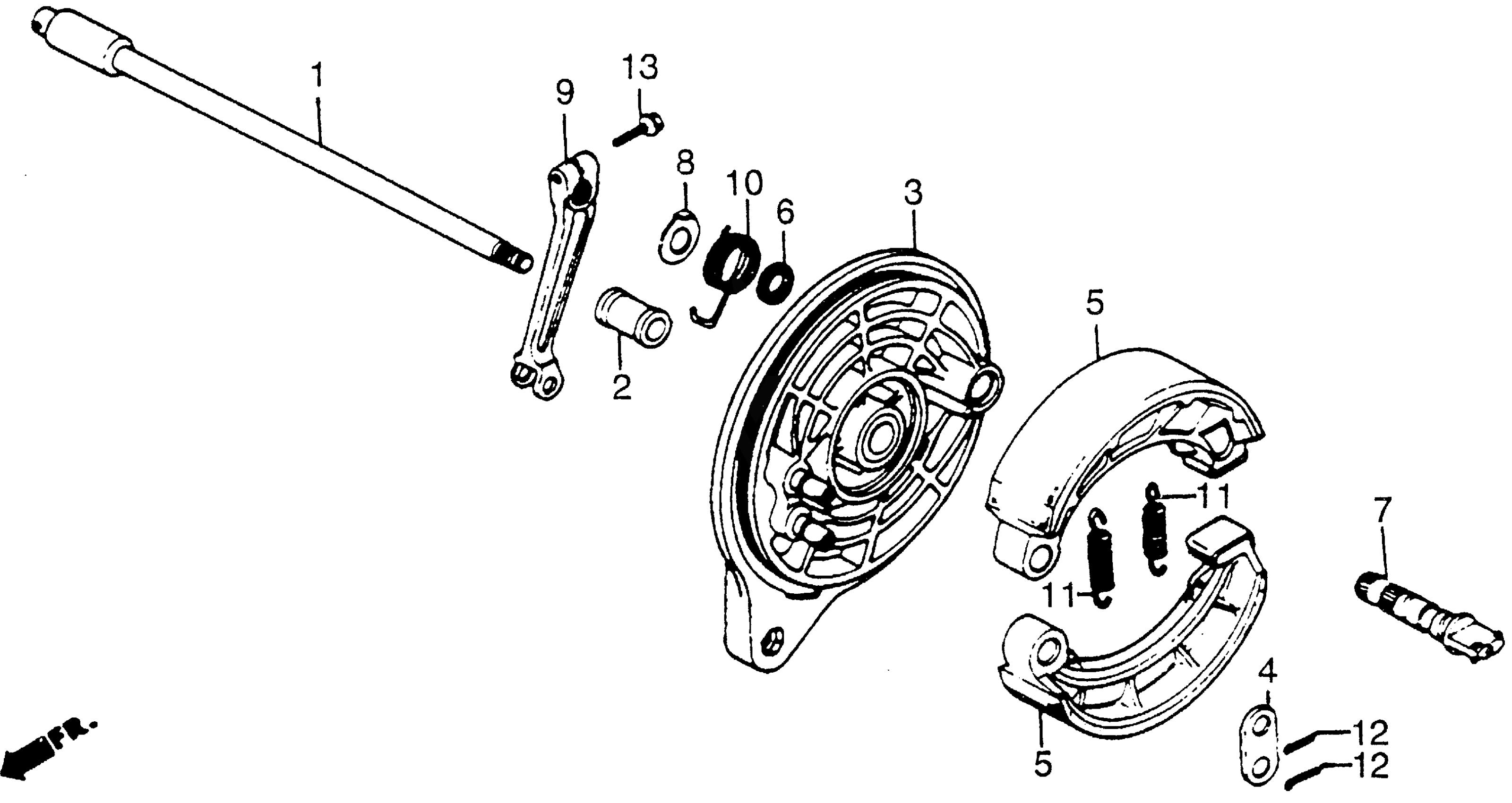

Honda VT700CA (85) SHADOW, JPN, VIN# JH2RC190-FM100001 TO JH2RC190-FM113279 REAR BRAKE PANEL Diagram

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-ME9-000

Unavailable

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42313-ME9-000

Unavailable

PANEL, RR. This part replaces 43100-ME5-000.

43100-MR1-670

Unavailable

PANEL, RR.

43100-MR1-670

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

SHOE, BRAKE

43120-MW3-671

$44.36

SHOE, BRAKE This part replaces 43120-415-000.

43120-MW3-671

$44.36

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$41.60

CAM, RR. BRAKE

43141-MB0-010

$41.60

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

ARM, RR. BRAKE

43410-ME9-000

Unavailable

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

43411-ME9-003

Unavailable

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
