- VT700CA (85) SHADOW, JPN, VIN# JH2RC190-FM100001 TO JH2RC190-FM113279
FRONT BRAKE CALIPER

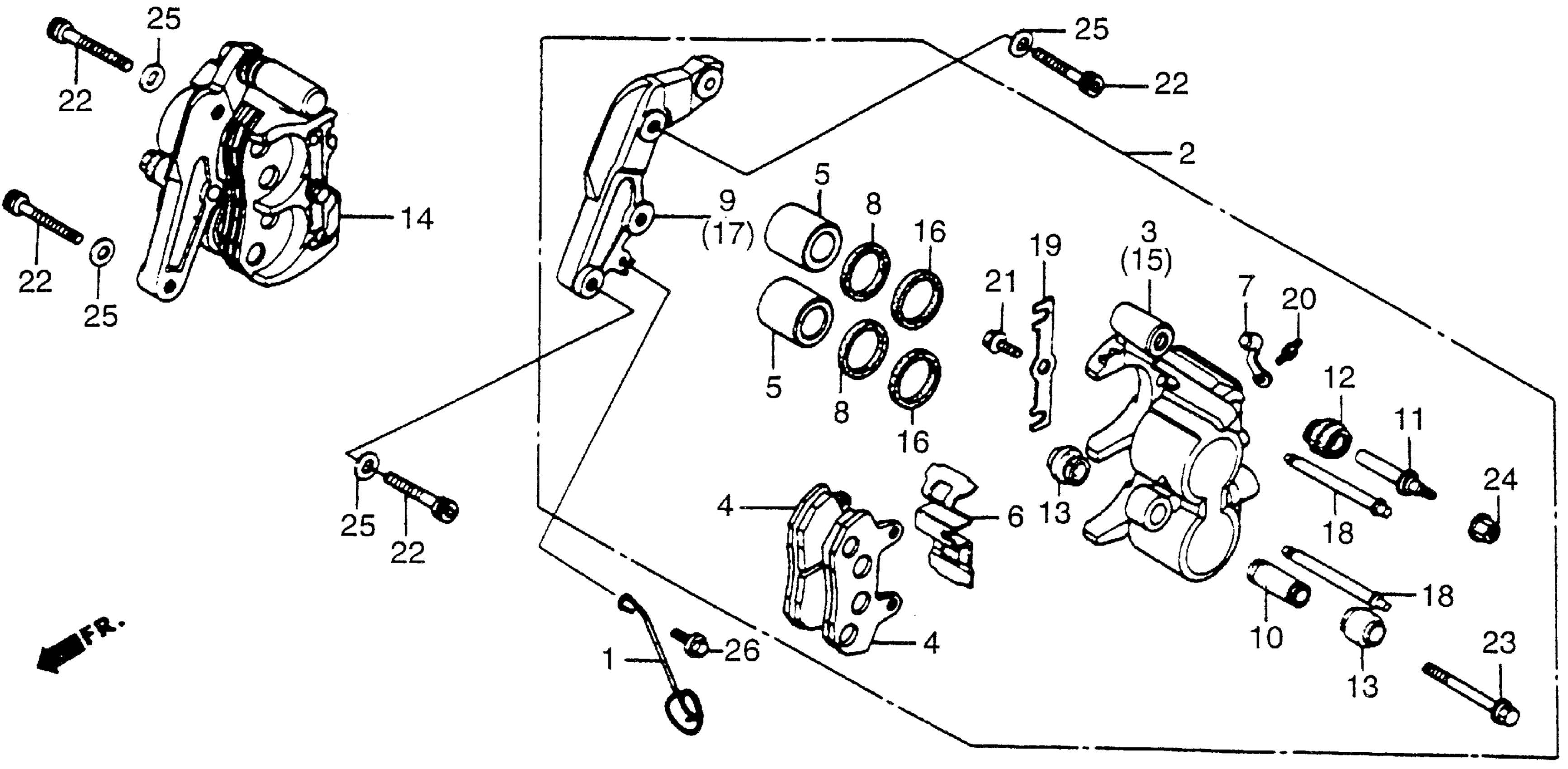

Honda VT700CA (85) SHADOW, JPN, VIN# JH2RC190-FM100001 TO JH2RC190-FM113279 FRONT BRAKE CALIPER Diagram
#
Description
Price
NI
PAD SET, BRAKE
06455-MC9-405
Unavailable
NI
PAD SET, BRAKE This part replaces 451A0-MC9-670.
06455-MC9-405
Unavailable
1
CLAMP, SPEEDOMETER CABLE
44832-ME9-000
Unavailable
2
CALIPER ASSY., L. FR. (NOT AVAILABLE) This part replaces 45100-ME9-003.
45100-MC9-003
Unavailable
2
CALIPER ASSY., L. FR. (NOT AVAILABLE) This part replaces 45100-ME9-004.
45100-MC9-003
Unavailable
3
CALIPER, L. (NOT AVAILABLE)
45101-MA5-771
Unavailable
4
PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
45105-MC9-003
Unavailable
4
PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC9-006.
45105-MC9-003
Unavailable
5
PISTON
45107-MA5-771
Unavailable
6
SPRING, PAD (NOT AVAILABLE)
45108-MA5-771
Unavailable
7
CAP, BLEEDER VALVE
45108-425-003
Unavailable
9
BRACKET, L. FR.
45110-MA5-771
Unavailable
10
SLEEVE (NOT AVAILABLE)
45111-MA5-771
Unavailable
11
PIN, BOLT
45131-MA5-771
Unavailable
12
BOOT, PIN
45133-MA5-771
Unavailable
13
BOOT, BOLT
45134-MA5-771
Unavailable
14
CALIPER, R. FR. This part replaces 45200-ME9-003.
45200-ME9-405
Unavailable
14
CALIPER, R. FR. This part replaces 45200-ME9-004.
45200-ME9-405
Unavailable
15
BODY, R. CALIPER (NOT AVAILABLE)
45201-MA5-771
Unavailable
16
SEAL, PISTON
45209-183-003
Unavailable
17
BRACKET, R.
45210-MA5-771
Unavailable
18
PIN, PAD RETAINING (NOT AVAILABLE)
45215-MA5-771
Unavailable
19
PLATE (NOT AVAILABLE)
45217-MA5-771
Unavailable
20
VALVE, BLEEDER
45224-413-003
Unavailable
21
BOLT, FLANGE (6X10) (NOT AVAILABLE)
90101-MA5-771
Unavailable
22
BOLT, SOCKET (10X40) (NOT AVAILABLE)
90164-460-840
Unavailable
23
BOLT, FLANGE (8X48) (NOT AVAILABLE)
90180-MA5-771
Unavailable
