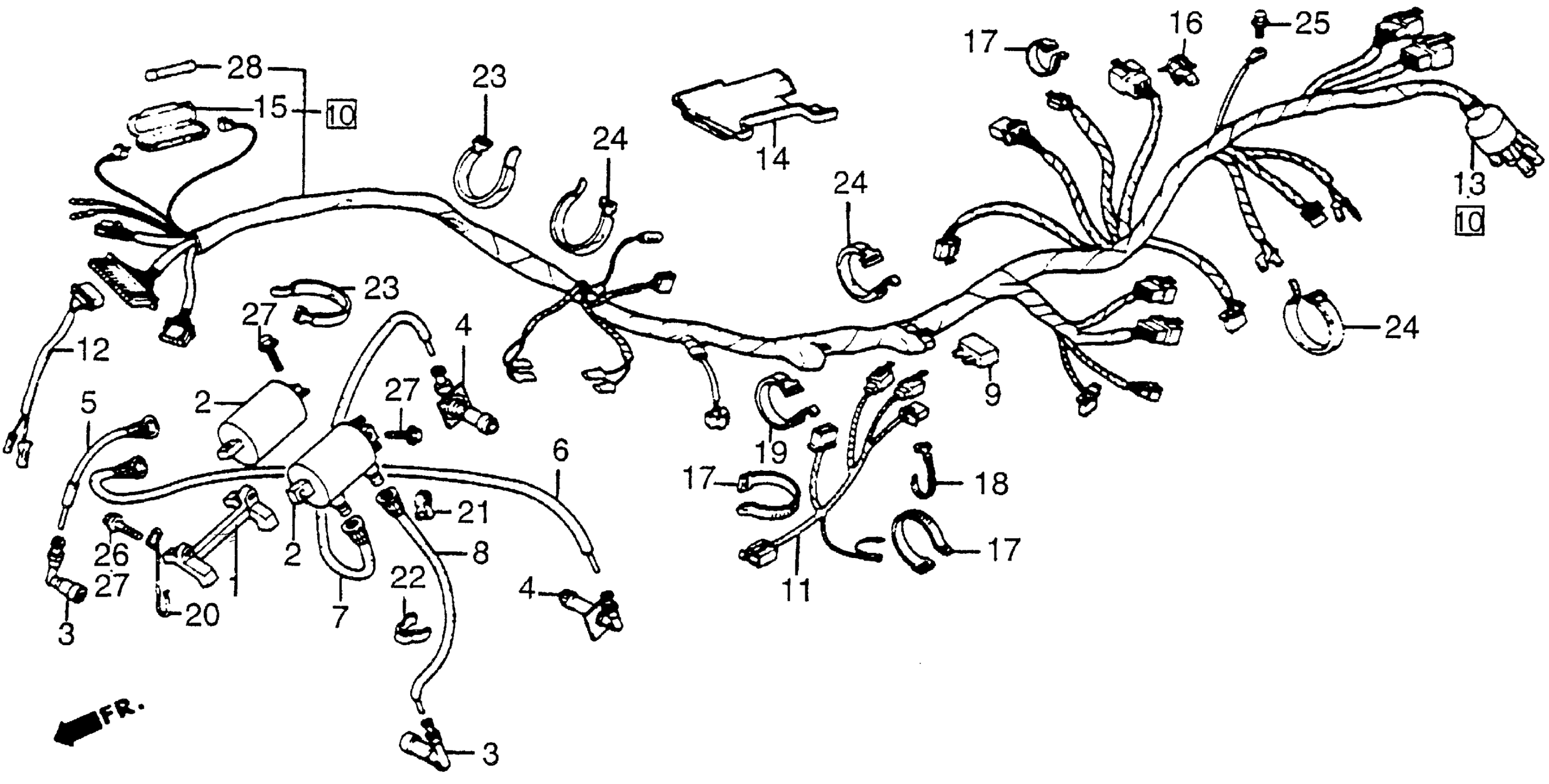

Honda VT700CA (84) SHADOW, JPN, VIN# JH2RC190-EM000007 TO JH2RC190-EM015991 WIRE HARNESS Diagram

#

Description
Price

1

BRACKET, IGNITION COIL

30505-ME9-003

Unavailable

2

COIL, IGNITION This part replaces 30510-ME9-003.

30510-ME9-013

$170.87

2

COIL, IGNITION

30510-ME9-013

$170.87

3

CAP ASSY. 1, NOISE SUPPRESSOR This part replaces 30700-ME9-000.

30700-MF5-153

Unavailable

3

CAP ASSY. 1, NOISE SUPPRESSOR

30700-MF5-153

Unavailable

4

CAP, SPARK PLUG This part replaces 30701-ME9-000.

30701-MG7-000

Unavailable

4

CAP, SPARK PLUG

30701-MG7-000

Unavailable

5

WIRE 1, IGNITION (NOT AVAILABLE)

30751-ME9-000

Unavailable

6

WIRE, IGNITION

30750-GA7-P00

Unavailable

6

WIRE, IGNITION This part replaces 30750-MF5-405.

30750-GA7-P00

Unavailable

6

WIRE, IGNITION This part replaces 30752-ME9-000.

30750-GA7-P00

Unavailable

7

WIRE 3, IGNITION (NOT AVAILABLE)

30753-ME9-000

Unavailable

8

WIRE 4, IGNITION

30750-GE0-P00

Unavailable

8

WIRE 4, IGNITION This part replaces 30750-ME9-405.

30750-GE0-P00

Unavailable

8

WIRE 4, IGNITION This part replaces 30754-ME9-000.

30750-GE0-P00

Unavailable

9

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

9

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

10

WIRE HARNESS (NOT AVAILABLE)

32100-ME9-770

Unavailable

11

SUB-WIRE HARNESS

32102-ME9-000

Unavailable

12

SUB-WIRE HARNESS D

32104-ME9-000

Unavailable

13

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

14

COVER, WIRE HARNESS

32110-ME9-770

Unavailable

15

CASE, FUSE (10A)

32126-463-770

$10.51

16

CLIP, WIRE HARNESS

32161-393-003

$3.07

17

BAND B1, CABLE

32161-404-000

$2.23

18

BAND B1, CABLE

32161-404-610

$2.23

19

BAND, CABLE

32161-438-000

$4.13

20

CLIP, IGNITION WIRE

32800-ME9-000

Unavailable

20

CLIP, IGNITION WIRE This part replaces 32800-ME9-770.

32800-ME9-000

Unavailable

21

CLIP, IGNITION WIRE (C) (NOT AVAILABLE)

32802-ME9-000

Unavailable

22

CLAMP, SPEEDOMETER SENSOR WIRE

61108-MB0-000

Unavailable

23

BAND B1, CABLE

32161-404-000

$2.23

23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

24

BAND A2, CABLE

95014-61200

$2.33

25

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

25

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

27

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

27

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

28

FUSE B (10A)

98200-21000

$1.49
