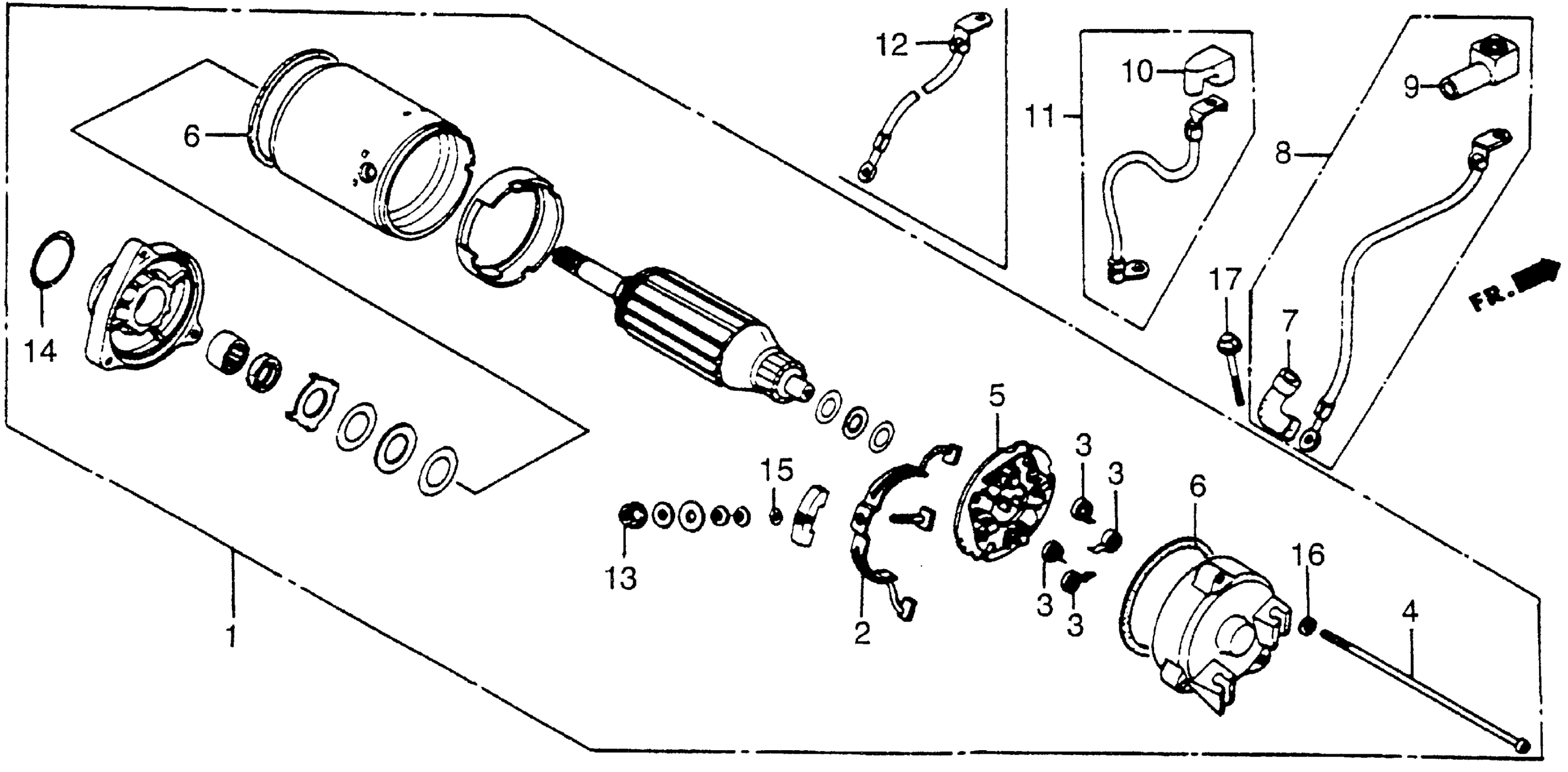

Honda VT700CA (84) SHADOW, JPN, VIN# JH2RC190-EM000007 TO JH2RC190-EM015991 STARTING MOTOR Diagram

MOTOR ASSY., STARTER This part replaces 31200-ME9-008.

31200-MK7-405

Unavailable

MOTOR ASSY., STARTER

31200-MK7-405

Unavailable

TERMINAL SET, BRUSH

31201-KM3-000

Unavailable

TERMINAL SET, BRUSH This part replaces 31201-ME9-000.

31201-KM3-000

Unavailable

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

BOLT, SETTING This part replaces 31205-ME9-780.

31205-MG7-000

Unavailable

BOLT, SETTING

31205-MG7-000

Unavailable

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MC8-008.

31206-MM5-008

$19.33

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

RING, SEAL

31207-179-711

$4.22

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

CABLE, STARTER MOTOR

32412-ME9-770

Unavailable

COVER B, MAGNETIC SWITCH

32416-460-000

Unavailable

CABLE, BATTERY GROUND (NOT AVAILABLE) This part replaces 32601-ME9-770.

32601-ME9-000

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING

91320-MB0-000

$2.43

WASHER, SPRING (5MM)

94111-05000

$1.49

BOLT, FLANGE (6X32) This part replaces 95700-06032-07.

95701-06032-07

$1.49

BOLT, FLANGE (6X32)

95701-06032-07

$1.49
