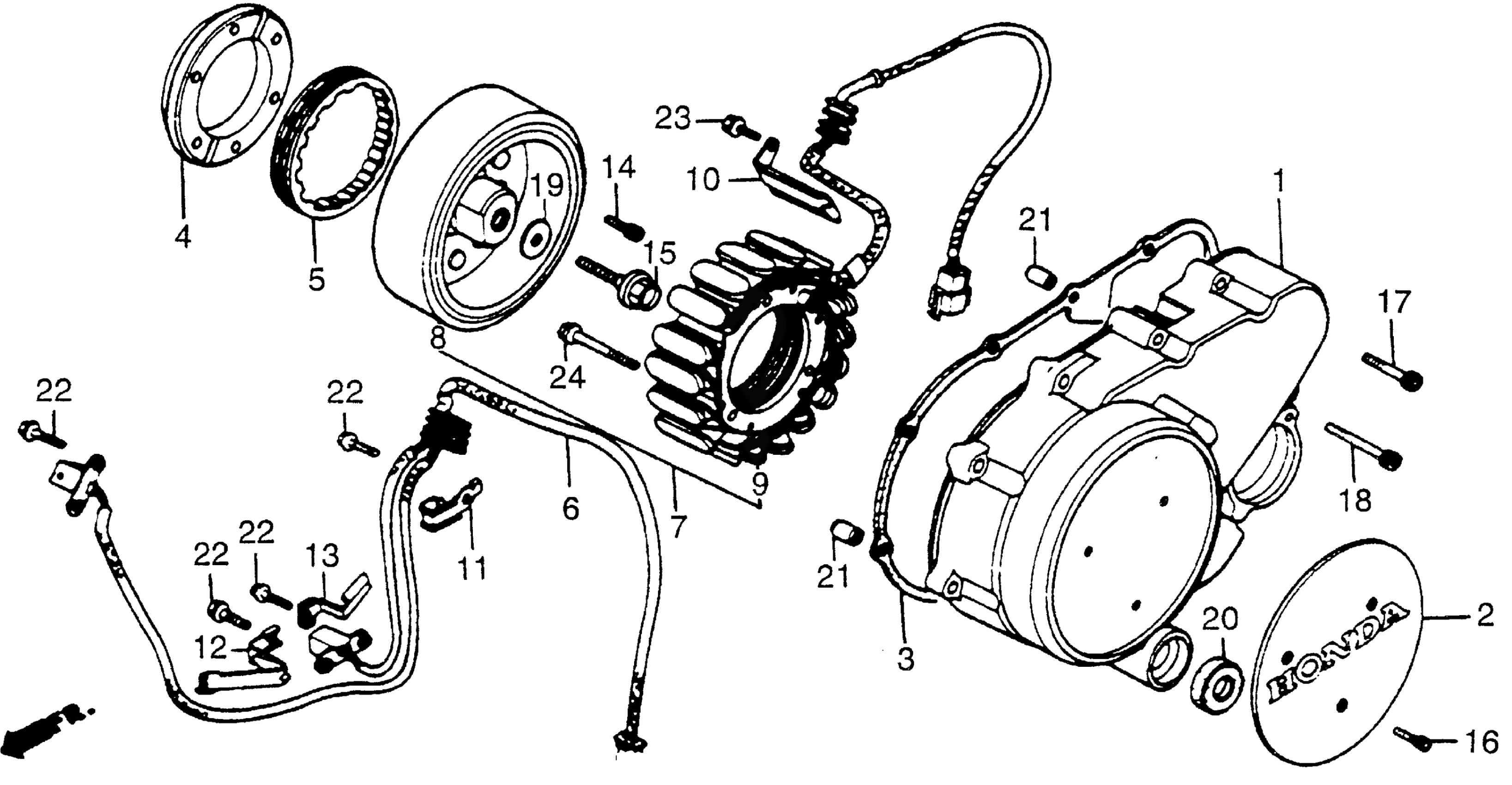

Honda VT700CA (84) SHADOW, JPN, VIN# JH2RC190-EM000007 TO JH2RC190-EM015991 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11361-ME9-770

Unavailable

2

BASE, EMBLEM (NOT AVAILABLE)

11362-ME9-000

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-ME9-000.

11395-ME9-306

$12.84

3

GASKET, L. CRANKCASE COVER

11395-ME9-306

$12.84

4

CLUTCH, STARTING (OUTER) (NOT AVAILABLE)

28120-ME9-000

Unavailable

5

CLUTCH, STARTER ONE-WAY | Use up to Engine SN 2001130 This part replaces 28125-ME9-003.

28125-ME9-013

Unavailable

5

CLUTCH, STARTER ONE-WAY | Use up to Engine SN 2001130

28125-ME9-013

Unavailable

5

CLUTCH, STARTER ONE-WAY | Use from Engine SN 2001131

28125-ME9-013

Unavailable

6

GENERATOR ASSY., PULSE

30300-ME9-154

Unavailable

7

ALTERNATOR ASSY., FLYWHEEL TYPE (NOT AVAILABLE)

31100-ME9-005

Unavailable

8

FLYWHEEL (HITACHI) This part replaces 31110-ME9-005.

31110-MK7-005

Unavailable

8

FLYWHEEL (HITACHI)

31110-MK7-005

Unavailable

9

STATOR

31120-ME9-005

Unavailable

10

CLAMP, ALTERNATOR WIRE

32961-MG7-000

Unavailable

11

CLAMP, PULSE (A)

32962-ME9-000

Unavailable

12

CLAMP, PULSE (B)

32963-ME9-000

Unavailable

13

CLAMP, PULSE (C)

32964-ME9-000

Unavailable

14

BOLT, SOCKET (8MM) This part replaces 90010-KE5-000.

90010-MAY-000

$5.41

14

BOLT, SOCKET (8MM)

90010-MAY-000

$5.41

14

BOLT, SOCKET (8MM) This part replaces 90010-ME9-000.

90010-MAY-000

$5.41

15

BOLT, FLANGE (12X45)

90025-ME9-010

Unavailable

16

BOLT, SOCKET (4X10)

90073-ME9-000

$3.85

17

BOLT, SOCKET (6MM) This part replaces 90074-ME9-000.

90081-KF9-900

Unavailable

17

BOLT, SOCKET (6MM)

90081-KF9-900

Unavailable

18

BOLT, SOCKET (6X50) (NOT AVAILABLE)

90076-ME9-000

Unavailable

19

WASHER (12.2X33X3.2)

90401-371-000

$6.43

20

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

21

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

22

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

22

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

23

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

23

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

24

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

24

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
