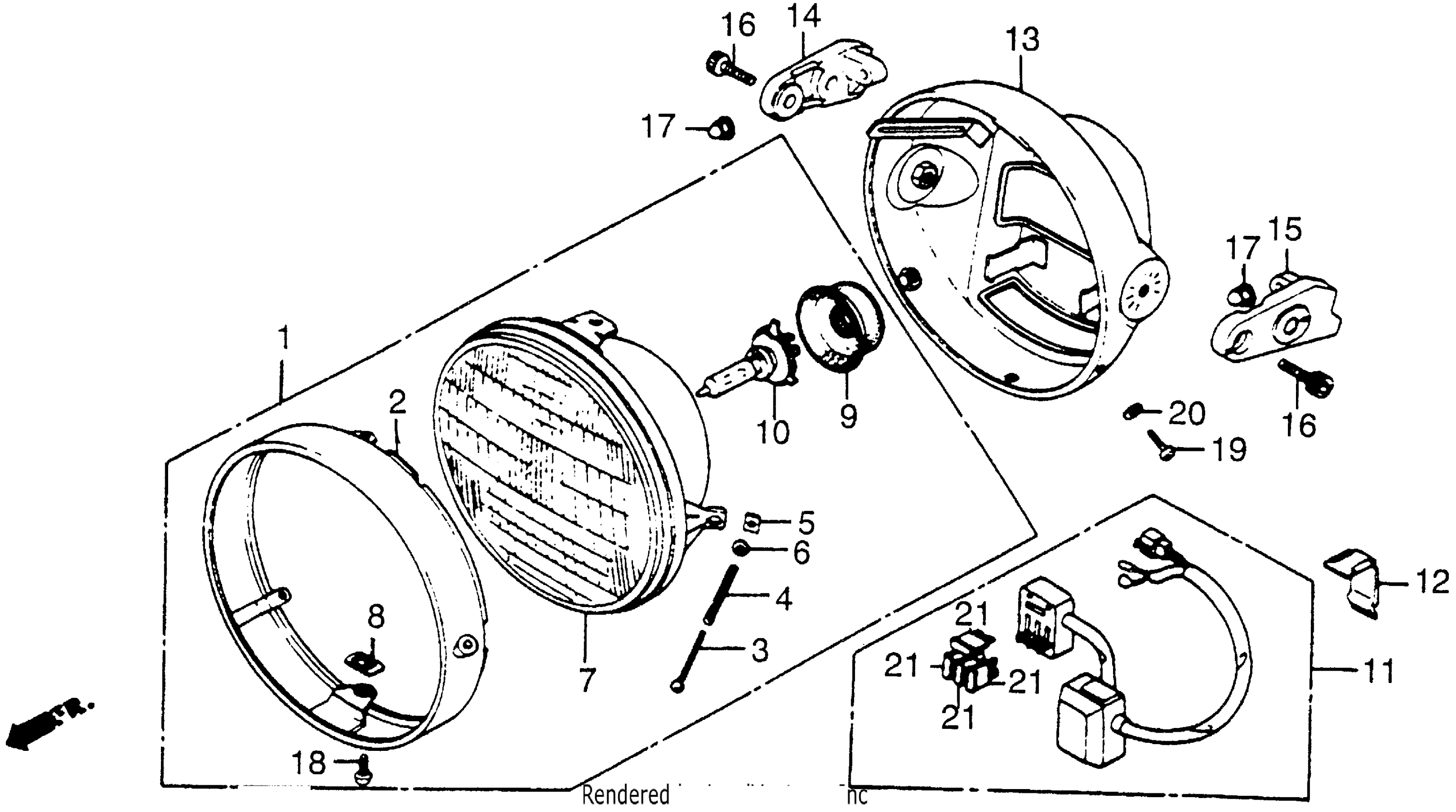

Honda VT700CA (84) SHADOW, JPN, VIN# JH2RC190-EM000007 TO JH2RC190-EM015991 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W) This part replaces 33100-ME9-671.

33100-MF5-840

Unavailable

1

HEADLIGHT ASSY. (12V 60/55W) This part replaces 33100-MF5-751.

33100-MF5-840

Unavailable

1

HEADLIGHT ASSY. (12V 60/55W)

33100-MF5-840

Unavailable

2

RIM, HEADLIGHT

33101-MB1-003

Unavailable

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT This part replaces 33120-ME9-670.

33120-MF5-751

Unavailable

7

HEADLIGHT UNIT

33120-MF5-751

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

COVER, RUBBER

33180-422-003

Unavailable

10

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

10

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

13

CASE, HEADLIGHT (NOT AVAILABLE)

61301-ME9-000

Unavailable

14

STAY, R. HEADLIGHT

61312-ME9-000

Unavailable

15

STAY, L. HEADLIGHT

61313-ME9-000

$57.07

16

BOLT, SOCKET

90109-MB0-000

Unavailable

16

BOLT, SOCKET This part replaces 90157-MB1-000.

90109-MB0-000

Unavailable

17

NUT, FLANGE CAP (8MM)

90208-438-000

$2.98

18

SCREW, PAN (5X8)

93500-05008-0H

$1.49

19

SCREW, PAN (5X16)

93500-05016-0B

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49
