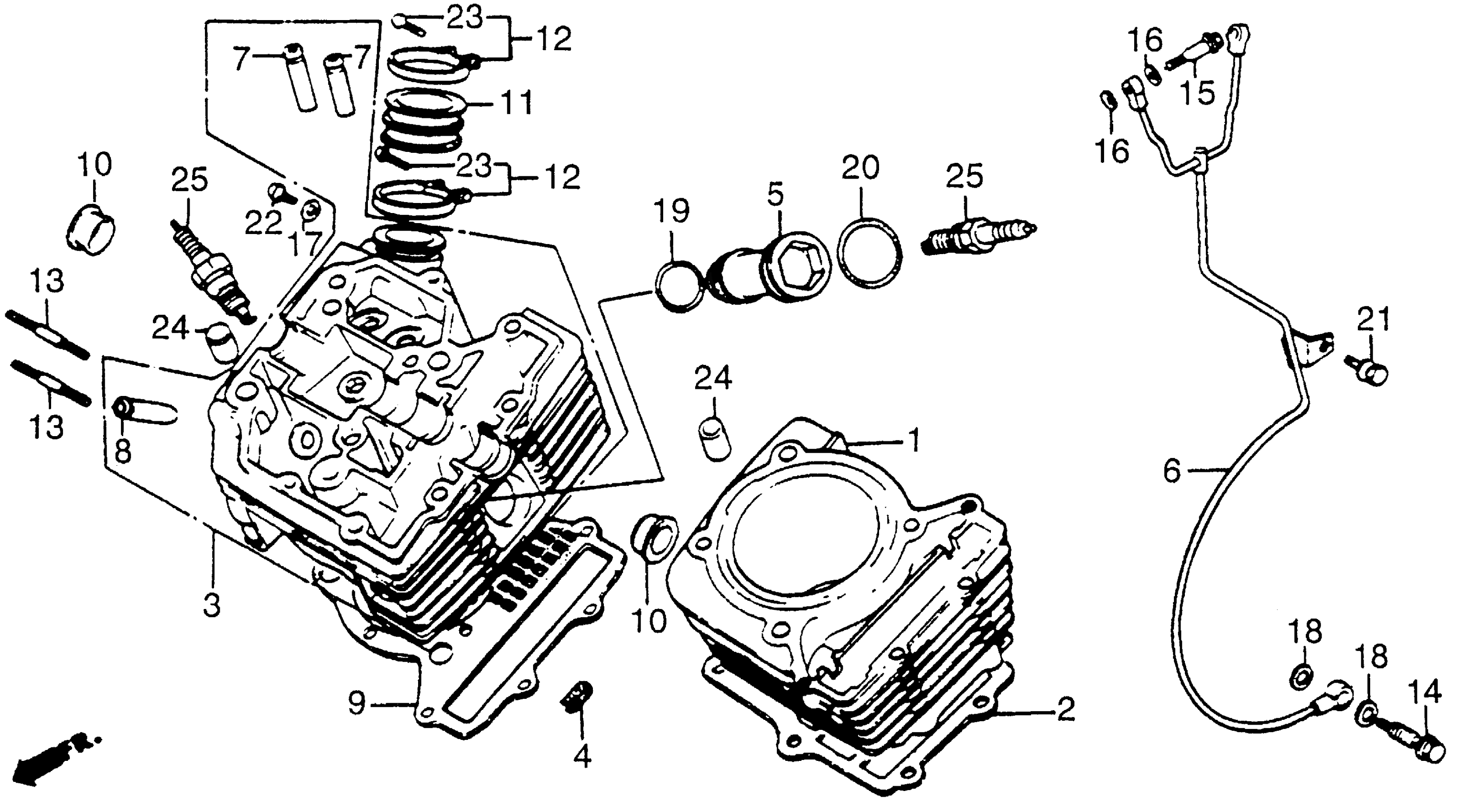

Honda VT700CA (84) SHADOW, JPN, VIN# JH2RC190-EM000007 TO JH2RC190-EM015991 FRONT CYLINDER Diagram

#

Description
Price

1

CYLINDER A (NOT AVAILABLE)

12100-ME9-770

Unavailable

2

GASKET, CYLINDER

12191-ME9-305

$9.23

3

CYLINDER HEAD A (NOT AVAILABLE)

12210-ME9-770

Unavailable

4

RUBBER, BREATHER TUBE (NOT AVAILABLE)

12221-ME9-000

Unavailable

5

SLEEVE, PLUG

12225-ME9-000

Unavailable

6

PIPE A, OIL PASSAGE This part replaces 12230-ME9-000.

12230-ME9-010

Unavailable

6

PIPE A, OIL PASSAGE

12230-ME9-010

Unavailable

7

GUIDE, VALVE This part replaces 12231-ME9-305.

12231-MG8-305

$19.39

7

GUIDE, VALVE

12231-MG8-305

$19.39

8

GUIDE, IN VALVE This part replaces 12233-ME9-305.

12233-MG8-405

Unavailable

8

GUIDE, IN VALVE

12233-MG8-405

Unavailable

9

GASKET SET, CYLINDER HEAD This part replaces 12251-ME9-306.

12250-ME9-306

Unavailable

9

GASKET SET, CYLINDER HEAD This part replaces 12251-ME9-316.

12250-ME9-306

Unavailable

9

GASKET SET, CYLINDER HEAD This part replaces 12251-ME9-750.

12250-ME9-306

Unavailable

9

GASKET SET, CYLINDER HEAD This part replaces 12251-ME9-770.

12250-ME9-306

Unavailable

9

GASKET SET, CYLINDER HEAD

12250-ME9-306

Unavailable

10

PLUG, CAMSHAFT | Use from Engine SN 2015129

12312-MG7-000

$17.72

10

PLUG, CAMSHAFT | Use up to Engine SN 2015128

12312-428-000

$11.40

11

INSULATOR, CARBURETOR

16211-ME9-000

$22.46

12

BAND, INSULATOR

16219-ME9-000

$9.24

13

BOLT, STUD (6X28)

90035-ME9-000

Unavailable

14

BOLT, OIL CONTROL

90045-ME9-000

Unavailable

15

BOLT, SPECIAL (6X49) (NOT AVAILABLE)

90054-ME9-000

Unavailable

16

WASHER, SEALING (7MM)

90441-MC0-000

Unavailable

17

WASHER, SEALING (5MM)

90452-323-000

$1.52

18

WASHER, OIL BOLT

90545-300-000

$3.72

19

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.41

19

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$5.99

20

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.44

21

BOLT-WASHER (6X12)

93401-06012-07

Unavailable

21

BOLT-WASHER (6X12) This part replaces 93491-06012-07.

93401-06012-07

Unavailable

22

SCREW, PAN (5X8)

93500-05008-0A

$0.80

23

SCREW, PAN (5X25)

93500-05025-0G

$0.68

24

PIN A, DOWEL (14X20)

94301-14200

$2.25

25

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.00

25

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.25

25

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.00

25

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.25

25

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.00

25

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.25
