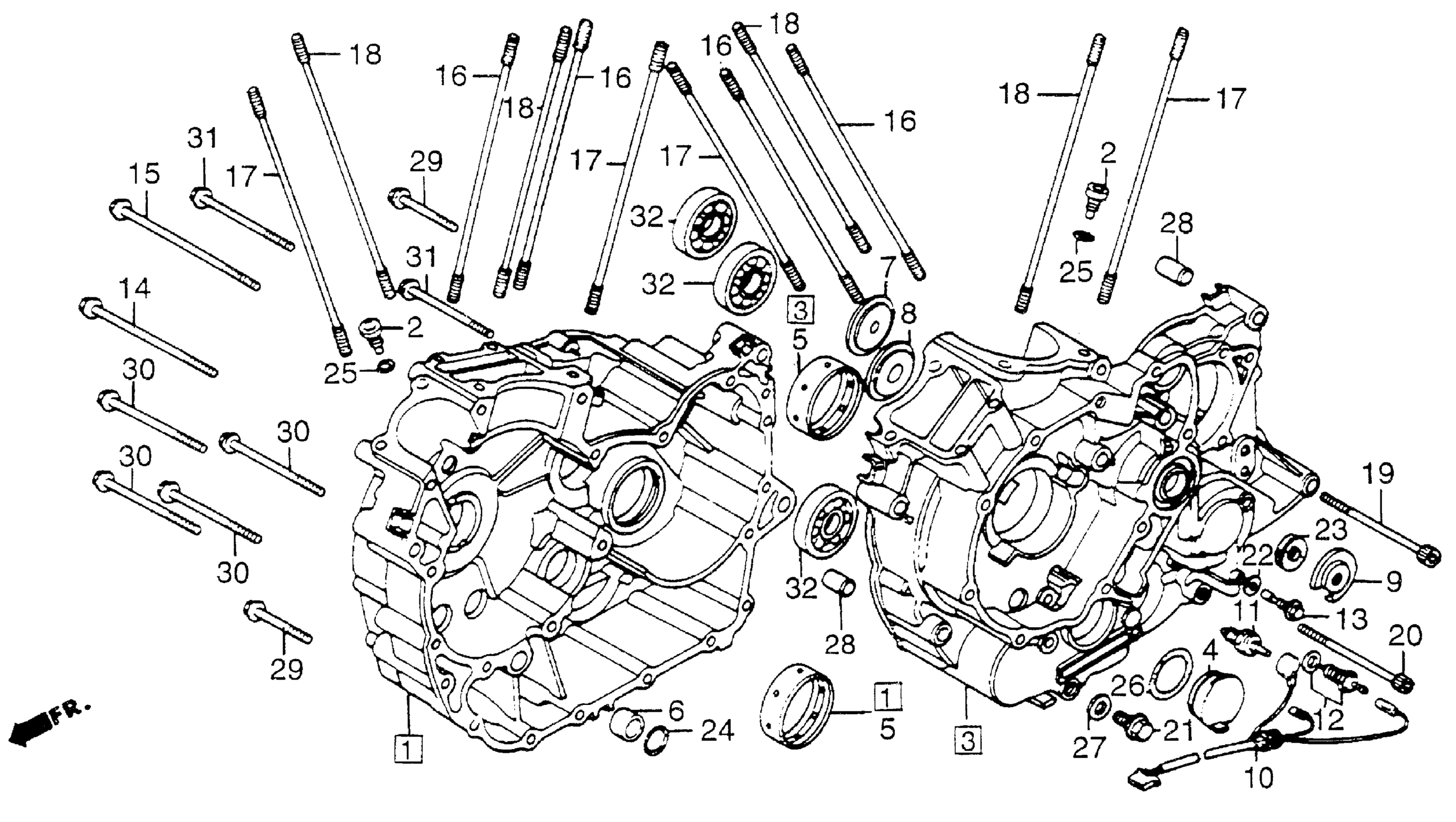

Honda VT700CA (84) SHADOW, JPN, VIN# JH2RC190-EM000007 TO JH2RC190-EM015991 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-ME9-000

Unavailable

2

JET, OIL

11146-ME9-000

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-ME9-770

Unavailable

4

PLUG, L. CRANKCASE This part replaces 11211-ME9-010.

11211-MK7-770

$29.02

4

PLUG, L. CRANKCASE

11211-MK7-770

$29.02

5

BEARING A, MAIN (BLUE)

13325-ME9-305

Unavailable

5

BEARING B, MAIN (BLACK)

13326-ME9-305

Unavailable

5

BEARING C, MAIN (BROWN)

13327-ME9-305

Unavailable

6

COLLAR, O-RING

15155-300-000

$3.47

7

GUIDE, LIFTER ROD

15171-ME9-000

Unavailable

8

PLATE, ORIFICE

15172-ME9-000

Unavailable

9

PLATE, SETTING (NOT AVAILABLE)

22851-ME9-000

Unavailable

10

SUB-WIRE HARNESS A (NOT AVAILABLE)

32101-ME9-000

Unavailable

11

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MB9-004.

35500-MJ4-024

$42.43

11

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

11

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

11

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

11

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

12

SWITCH ASSY., NEUTRAL This part replaces 35600-425-003.

35600-425-023

$21.73

12

SWITCH ASSY., NEUTRAL This part replaces 35600-425-013.

35600-425-023

$21.73

12

SWITCH ASSY., NEUTRAL

35600-425-023

$21.73

13

BOLT, CLUTCH OIL CONTROL This part replaces 90001-ME9-000.

90001-MG8-010

Unavailable

13

BOLT, CLUTCH OIL CONTROL This part replaces 90001-MG8-000.

90001-MG8-010

Unavailable

13

BOLT, CLUTCH OIL CONTROL

90001-MG8-010

Unavailable

14

BOLT, FLANGE (8X120)

90005-ME9-000

Unavailable

15

BOLT, FLANGE (8X135)

90006-ME9-000

Unavailable

16

BOLT, STUD (8X252)

90011-ME9-003

Unavailable

17

BOLT, STUD (10X264)

90012-ME9-003

$11.97

18

BOLT, STUD (10X255)

90013-ME9-003

$11.26

19

BOLT, SOCKET (8X120)

90053-ME9-000

Unavailable

20

BOLT, SOCKET (8X105) This part replaces 90055-ME9-000.

90122-ME9-000

Unavailable

20

BOLT, SOCKET (8X105)

90122-ME9-000

Unavailable

21

BOLT, PLUG (14MM)

90081-MC7-000

$10.96

22

WASHER, SEALING (6MM)

90441-706-000

$1.49

23

OIL SEAL (8X25X8) (ARAI) This part replaces 91204-MB0-000.

91204-MB0-013

$4.06

23

OIL SEAL (8X25X8) (ARAI) This part replaces 91204-MB0-003.

91204-MB0-013

$4.06

23

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

24

O-RING (13.8X2.5)

91303-MG7-003

$3.12

24

O-RING (13.8X2.5)

91303-377-000

$3.42

24

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

25

O-RING (5X1.7) (ARAI) This part replaces 91305-333-000.

91305-MG7-003

$2.92

25

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

26

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

27

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

28

PIN A, DOWEL (14X20)

94301-14200

$2.28

29

BOLT, FLANGE (8X45) This part replaces 95700-08045-07.

95701-08045-07

$2.17

29

BOLT, FLANGE (8X45)

95701-08045-07

$2.17

30

BOLT, FLANGE (8X80) This part replaces 95700-08080-07.

95701-08080-07

$2.39

30

BOLT, FLANGE (8X80)

95701-08080-07

$2.39

31

BOLT, FLANGE (8X100) This part replaces 95700-08100-07.

95701-08100-07

Unavailable

31

BOLT, FLANGE (8X100)

95701-08100-07

Unavailable

32

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
