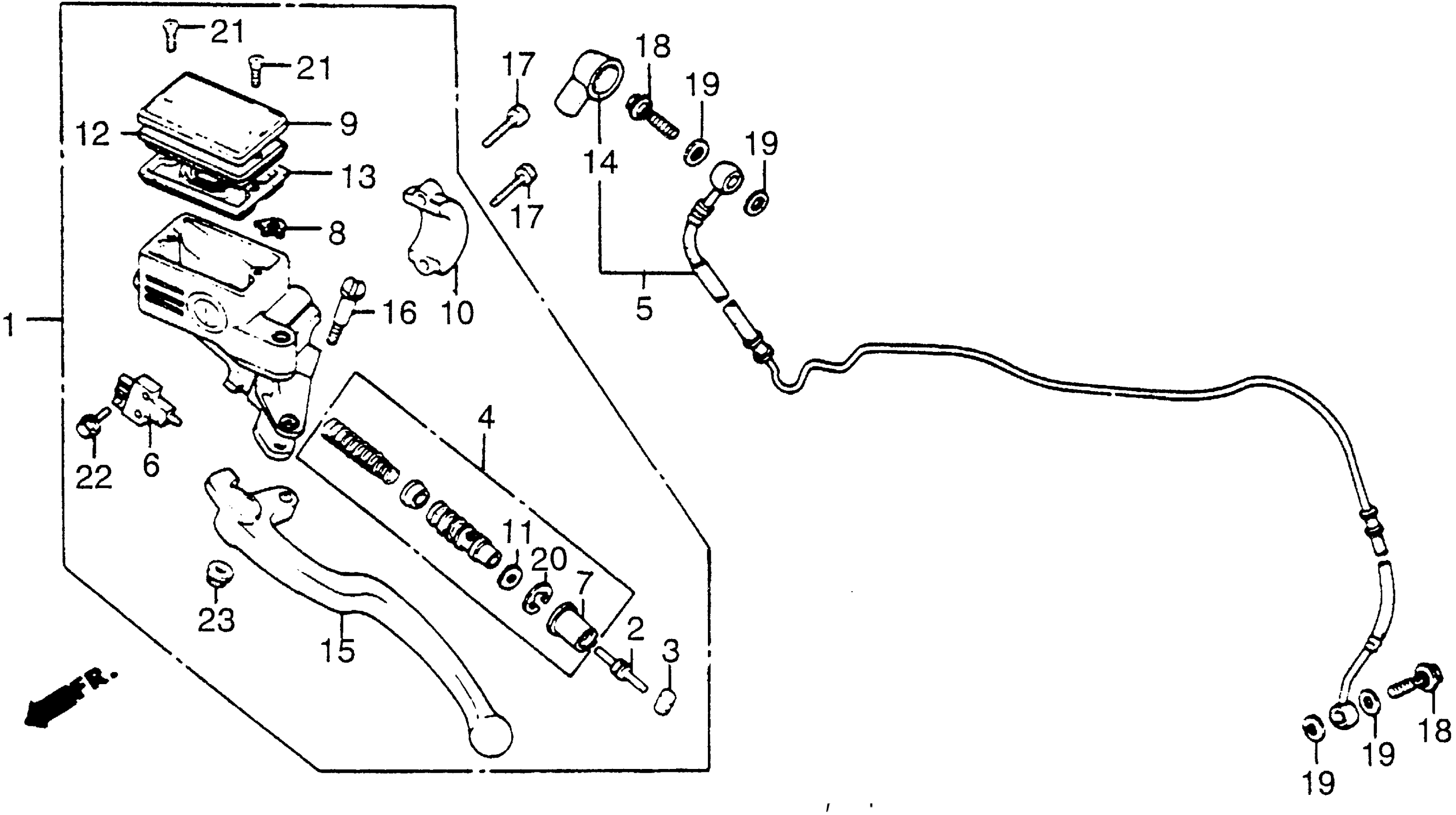

Honda VT700CA (84) SHADOW, JPN, VIN# JH2RC190-EM000007 TO JH2RC190-EM015991 CLUTCH MASTER CYLINDER Diagram

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-ME9-772

Unavailable

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

PIPE, CLUTCH (NOT AVAILABLE) This part replaces 22900-ME9-003.

22900-ME9-013

Unavailable

PIPE, CLUTCH (NOT AVAILABLE)

22900-ME9-013

Unavailable

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER | Use from Frame SN EM013222

45513-KE5-026

$41.77

CAP SET, FR. BRAKE MASTER CYLINDER (NOT AVAILABLE) | Use up to Frame SN EM013221

45540-KE5-305

Unavailable

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

PLATE, STOPPER

45518-MB0-006

$1.84

PLATE, DIAPHRAGM | Use from Frame SN EM013222

45518-MB4-671

$12.13

DIAPHRAGM

45520-MA5-672

$18.13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

LEVER, L. HANDLEBAR

53178-KE8-006

$24.77

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
