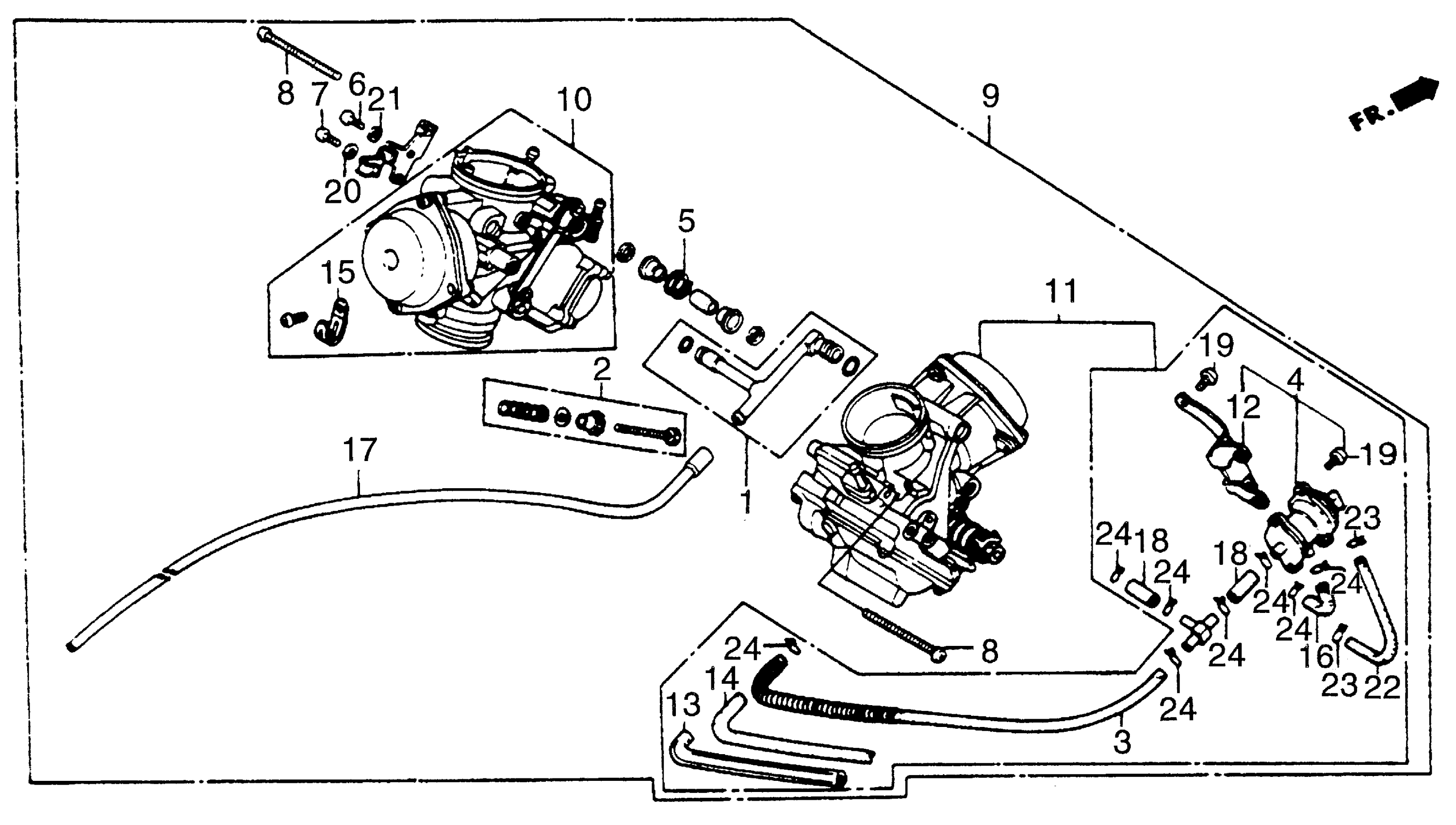

Honda VT700CA (84) SHADOW, JPN, VIN# JH2RC190-EM000007 TO JH2RC190-EM015991 CARBURETOR (ASSEMBLY) Diagram

JOINT SET

16026-ME9-671

Unavailable

SCREW SET This part replaces 16028-KM9-711.

16028-MAH-000

$55.95

SCREW SET

16028-MAH-000

$55.95

SCREW SET This part replaces 16028-ME9-671.

16028-MAH-000

$55.95

SPRING

16053-ME9-672

Unavailable

SCREW, PAN

16080-ME9-671

Unavailable

BOLT, HEX. This part replaces 16081-ME9-671.

16081-MR1-004

Unavailable

BOLT, HEX.

16081-MR1-004

Unavailable

SCREW, PAN

16082-ME9-671

Unavailable

CARBURETOR ASSY.

16100-ME9-771

Unavailable

CARBURETOR ASSY. 1

16101-ME9-771

Unavailable

CARBURETOR ASSY. 2

16102-ME9-771

Unavailable

TUBE

16144-MM8-004

Unavailable

TUBE This part replaces 16144-MM8-405.

16144-MM8-004

Unavailable

TUBE This part replaces 16199-ME9-671.

16144-MM8-004

Unavailable

WASHER, SPRING (4MM)

94111-04800

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49
