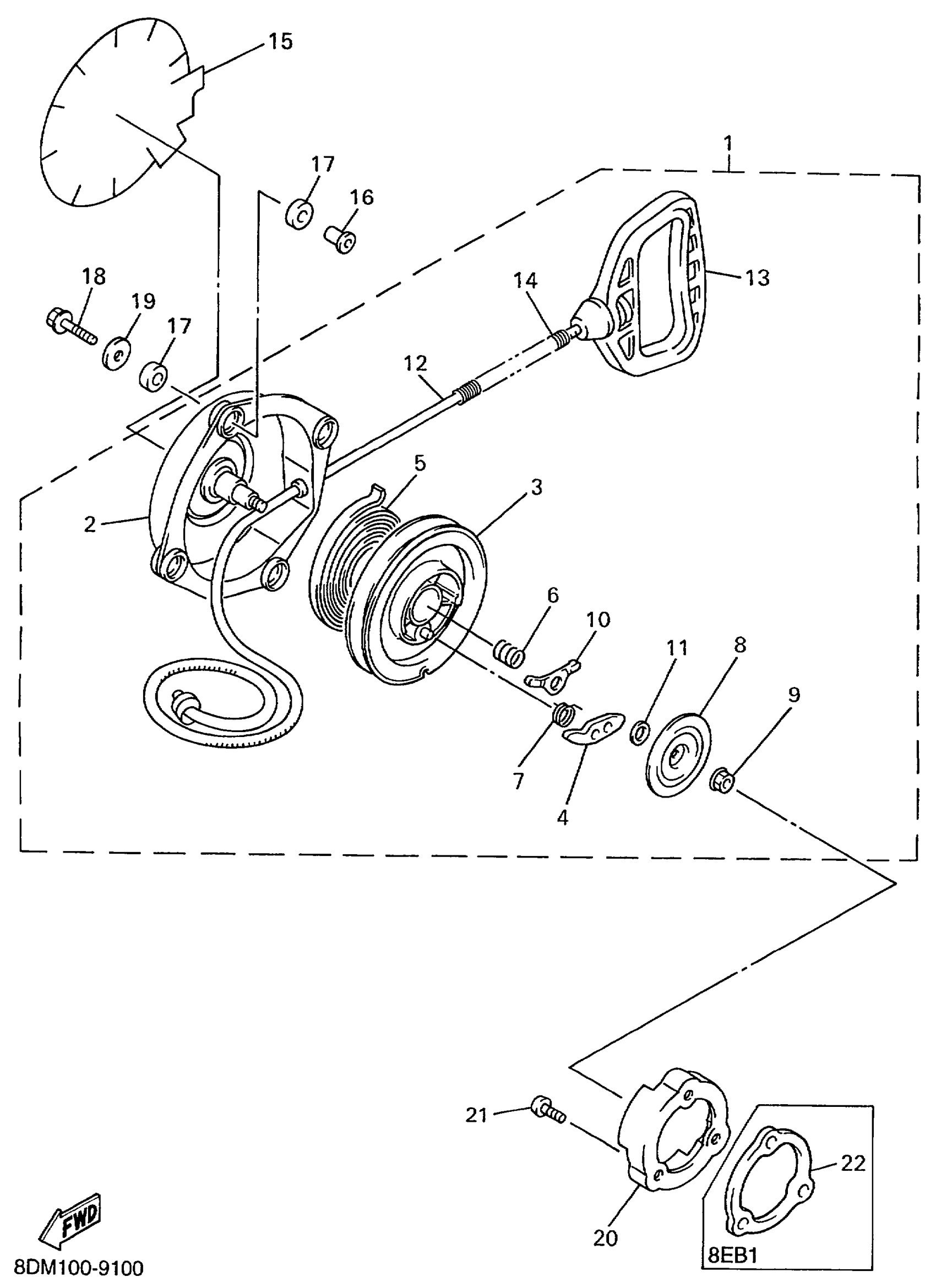

Yamaha VT700C (VENTURE 700) 8DM2 1999 STARTER Diagram

#

Description
Price

1

STARTER ASSY

8CH-15710-01-00

Unavailable

2

. CASE, STARTER

8CH-15711-00-00

Unavailable

3

. DRUM, SHEAVE

8CH-15714-00-00

Unavailable

4

. PAWL, DRIVE

8CH-15741-00-00

Unavailable

5

SPRING, STARTER

21V-15713-00-00

$20.14

6

. SPRING, FRICTION

8CH-15715-00-00

Unavailable

7

. SPRING

8CH-15767-00-00

Unavailable

8

PLATE, DRIVE

8CH-15716-00-00

$9.22

9

NUT, FLANGE(JN5)

95707-08500-00

$1.49

10

. GUIDE, CAM

8CH-15735-00-00

Unavailable

11

. WASHER, THRUST

8CH-15739-00-00

Unavailable

12

WIRE, STARTER (BRAIDED)

8CH-15751-00-00

$25.18

13

HANDLE, STARTER

8F3-15755-00-00

$23.00

14

. PROTECTOR, PIPE

85L-24327-00-00

Unavailable

15

COVER, STARTER CASE

8CH-15712-00-00

Unavailable

16

COLLAR

90387-08071-00

$8.11

17

BUSH (8M6)

90385-12036-00

$7.80

18

BOLT, FLANGE

95817-08035-00

$6.68

19

WASHER (853)

90201-08326-00

$6.17

20

PULLEY, STARTER

8CH-15723-00-00

$38.22

20

PULLEY, STARTER

8DF-15723-00-00

$41.46

21

BOLT, BUTTON HEAD

92017-08012-00

$6.18

21

BOLT, BUTTON

92017-08020-00

$5.86

22

SPACER

8DG-15724-00-00

$20.40
