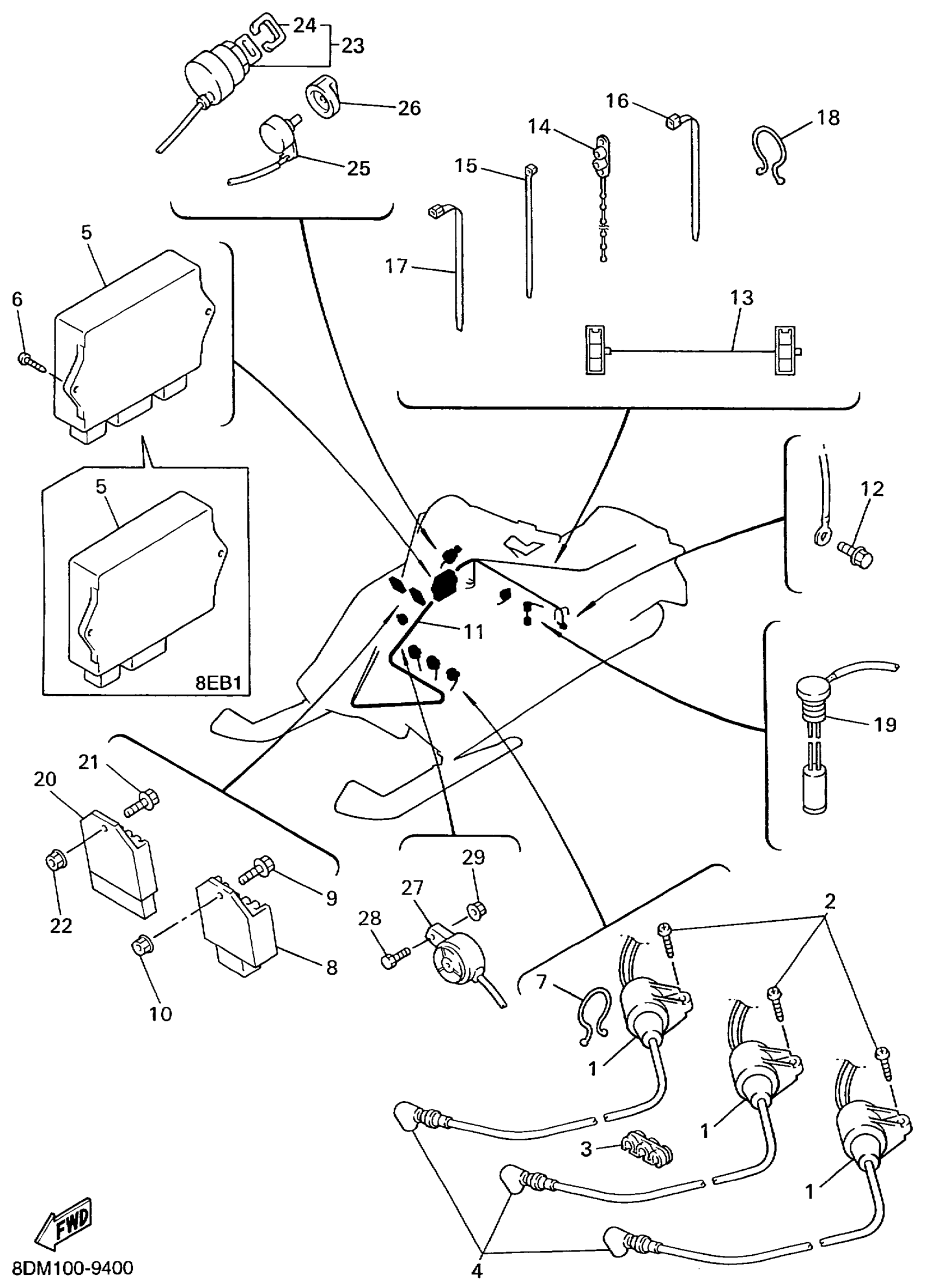

Yamaha VT700C (VENTURE 700) 8DM2 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8DG-82310-00-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.12

3

CLAMP

90464-06247-00

Unavailable

4

PLUG CAP ASSY

8DG-82370-00-00

$44.26

5

C.D.I. UNIT ASSEMBLY

8CH-85540-00-00

Unavailable

5

C.D.I. UNIT ASSY

8DG-85540-00-00

Unavailable

6

SCREW, TAPPING

97707-60525-00

$6.69

7

CLAMP (3Y2)

90464-16039-00

$8.35

8

RECTIFIER & REGULATOR ASSY

8DX-81960-00-00

Unavailable

9

BOLT, FLANGE

95817-06016-00

$1.49

10

NUT, FLANGE(4MV)

95707-06500-00

$0.78

11

WIRE HARNESS ASSY

8CH-82590-10-00

Unavailable

12

BOLT, FLANGE

95817-06010-00

$3.91

13

WIRE, LEAD

8CR-8471G-00-00

Unavailable

14

CLAMP

90464-20031-00

$2.62

15

CLAMP(4FM)

90464-15195-00

$2.77

16

CLAMP(4FM)

90464-15195-00

$2.77

17

CLAMP

90464-13077-00

$6.68

18

CLAMP

90464-25267-00

$5.62

19

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

$44.61

20

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

21

BOLT, FLANGE

95817-06016-00

$1.49

22

NUT, FLANGE(4MV)

95707-06500-00

$0.78

23

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

24

CAP, KEY

526-82579-00-00

$6.72

25

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

26

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

27

BUZZER

8CW-83383-00-00

$141.28

28

BOLT(3JK)

97027-05020-00

$2.48

29

NUT, FLANGE(3GM)

95707-05500-00

$6.18
