Description

Price

1

DOUBLE SEAT ASSY

8DM-24730-00-00

Unavailable

2

. SEAT COVER COMP

8DM-2470F-00-00

Unavailable

3

NUT, NYLON

95717-08300-00

$2.57

4

WASHER, PLATE (4W3)

90201-086A3-00

$6.29

5

CLAMP

90464-13077-00

$6.68

6

BAND, SEAT

8CR-24734-00-00

Unavailable

7

SCREW, BINDING

90154-06040-00

Unavailable

8

SEAT BACK ASSY

8DM-24790-00-00

Unavailable

9

KNOB

8DM-24598-01-00

$48.00

10

CLIP

8DM-24519-00-00

$6.40

11

BOLT, BUTTON HEAD

92017-10016-00

$6.42

12

STAY, FRONT 1

8DM-2474F-10-00

Unavailable

13

STAY, FRONT 2

8DM-2474G-10-00

Unavailable

14

BOLT, FLANGE

95817-08014-00

$1.94

15

RIVET, BLIND(8CH)

90267-47187-00

$1.84

16

ARM 2

8DM-2477R-00-00

$24.69

17

COLLAR(4BP)

90387-083Y8-00

$5.32

18

WASHER, PLATE

90202-12236-00

$3.60

19

NUT, FLANGE(JN5)

95707-08500-00

$1.49

20

NUT, HEXAGON SMALL

95317-08700-00

$7.05

21

SEAT LEVER ASSY

8DM-24760-00-00

$203.83

22

BOLT, HEXAGON

97027-10014-00

$2.20

23

BRACKET, ASSIST GRIP 1

8DM-2474H-10-00

$78.20

24

. BRACKET, ASSIST GRIP 2

8DM-2474J-10-00

Unavailable

25

BOLT,BUTTON

92017-10070-00

$4.14

26

WASHER, PLATE(3BM)

90201-105R9-00

$6.58

27

COLLAR 802473690000

90387-10090-00

$17.48

28

COLLAR (8U7)

90387-145G7-00

$9.65

29

BODY, SEAT LOCK

8CW-2479H-00-00

$25.69

30

DAMPER, SEAT

8CW-24737-00-00

$9.88

31

ASSIST, GRIP

8DM-2474A-00-00

$33.54

32

SCREW, BINDING

98907-06035-00

$7.48

33

NUT, CROWN(2GM)

90176-06065-00

$6.91

34

ASSIST GRIP WARMER ASSY, 1

8DM-2474B-00-00

Unavailable

35

ASSIST GRIP WARMER ASSY, 2

8DM-2474C-00-00

$209.82

36

SCREW, TRUSS TAP.

97707-40016-00

$6.18

37

COVER

8DM-24796-00-00

$9.18

38

COVER,2

8DM-2475X-01-00

$16.55

39

SCREW, TRUSS TAP.

97707-40012-00

$6.69

40

PROTECTOR,1

8DM-2476U-00-00

$6.46

41

PROTECTOR,2

8DM-2476V-00-00

$6.46

42

RIVET, BLIND (8M6)

90267-48051-00

$1.88

43

WASHER, PLAIN (3GDF)

90201-051K1-00

$6.46

44

LEVER, SEAT

8DM-2477F-00-00

$9.09

45

SCREW, TAPPING(JN5)

97707-40008-00

Unavailable

46

SWITCH

8DM-82917-01-00

$118.26

47

RESISTOR ASSY

8DM-85370-00-00

$38.49

48

SCREW, BINDING

98907-06012-00

$7.14

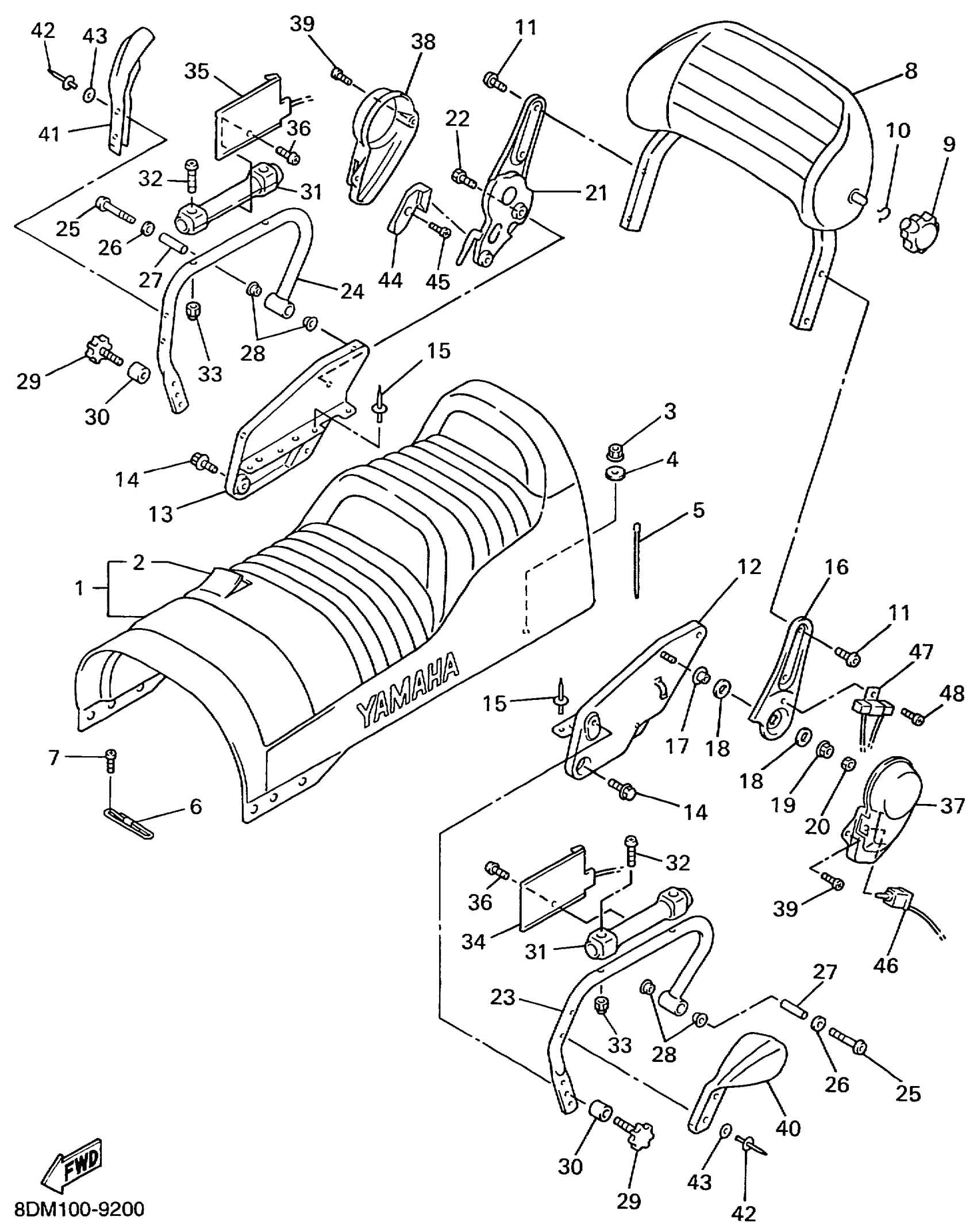

Yamaha VT700C (VENTURE 700) 8DM2 1999 SEAT Diagram

DOUBLE SEAT ASSY

. SEAT COVER COMP

NUT, NYLON

WASHER, PLATE (4W3)

CLAMP

BAND, SEAT

SCREW, BINDING

SEAT BACK ASSY

KNOB

CLIP

BOLT, BUTTON HEAD

STAY, FRONT 1

STAY, FRONT 2

BOLT, FLANGE

RIVET, BLIND(8CH)

ARM 2

COLLAR(4BP)

WASHER, PLATE

NUT, FLANGE(JN5)

NUT, HEXAGON SMALL

SEAT LEVER ASSY

BOLT, HEXAGON

BRACKET, ASSIST GRIP 1

. BRACKET, ASSIST GRIP 2

BOLT,BUTTON

WASHER, PLATE(3BM)

COLLAR 802473690000

COLLAR (8U7)

BODY, SEAT LOCK

DAMPER, SEAT

ASSIST, GRIP

SCREW, BINDING

NUT, CROWN(2GM)

ASSIST GRIP WARMER ASSY, 1

ASSIST GRIP WARMER ASSY, 2

SCREW, TRUSS TAP.

COVER

COVER,2

SCREW, TRUSS TAP.

PROTECTOR,1

PROTECTOR,2

RIVET, BLIND (8M6)

WASHER, PLAIN (3GDF)

LEVER, SEAT

SCREW, TAPPING(JN5)

SWITCH

RESISTOR ASSY

SCREW, BINDING
