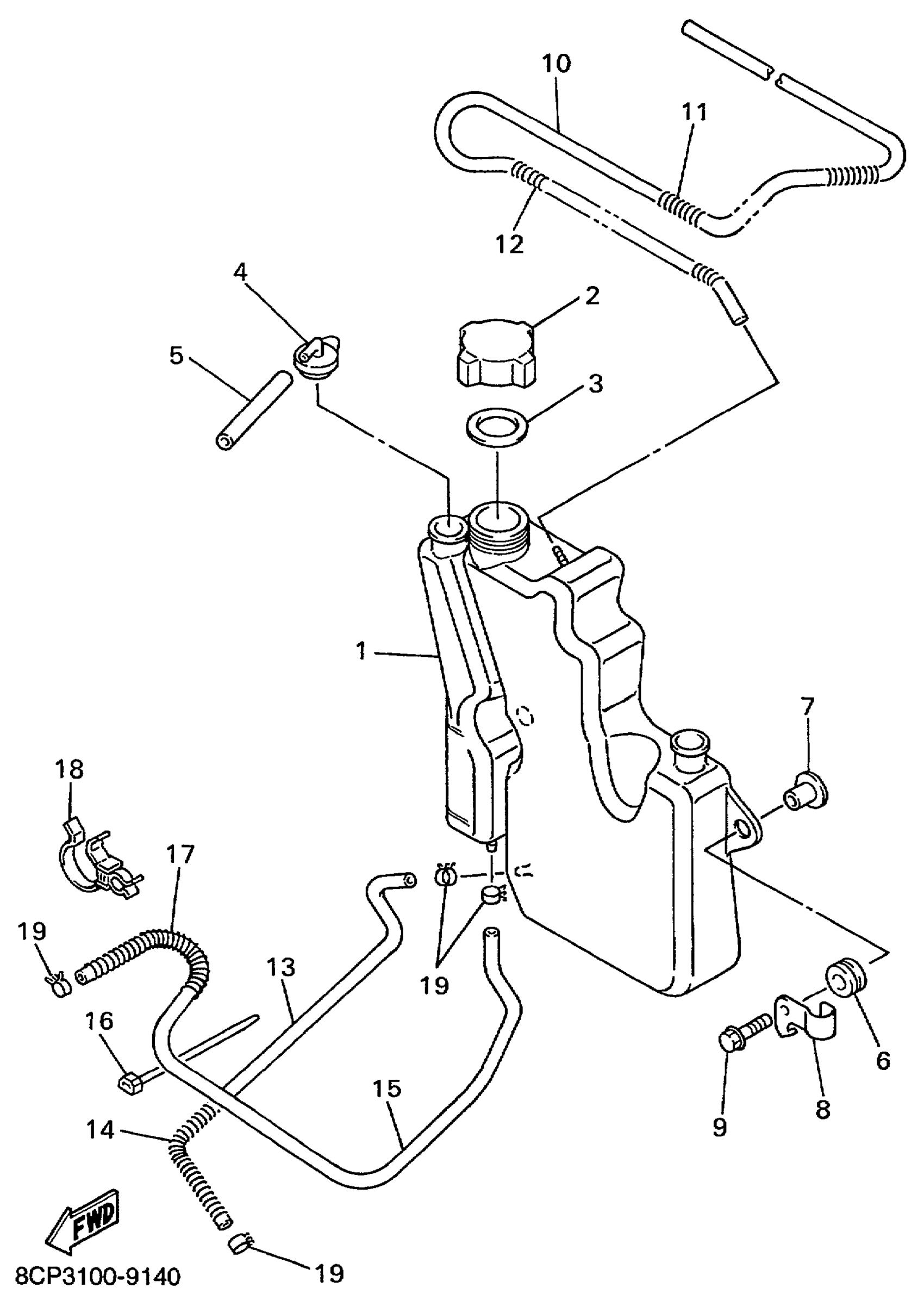

Yamaha VT700C (VENTURE 700) 8DM2 1999 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8CR-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$25.12

3

GASKET, TANK (867)

90430-31003-00

$7.77

4

CAP

89A-21815-00-00

$20.94

5

HOSE (L70)

90445-112E0-00

$5.66

6

GROMMET 839774310000

90480-14023-00

$4.74

7

COLLAR(52E)

90387-063G3-00

$6.29

8

CLAMP

90462-08244-00

$22.34

9

BOLT, FLANGE

95817-06025-00

$1.46

10

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

11

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

12

SPRING, COMPRESSION(3JK)

90501-101J5-00

Unavailable

13

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.80

14

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

15

HOSE (L600)

90445-083J5-00

$5.69

16

CLAMP(4FM)

90464-15195-00

$2.77

17

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

18

CLAMP

90464-26245-00

Unavailable

19

CLIP (8A1)

90467-09026-00

$2.72
