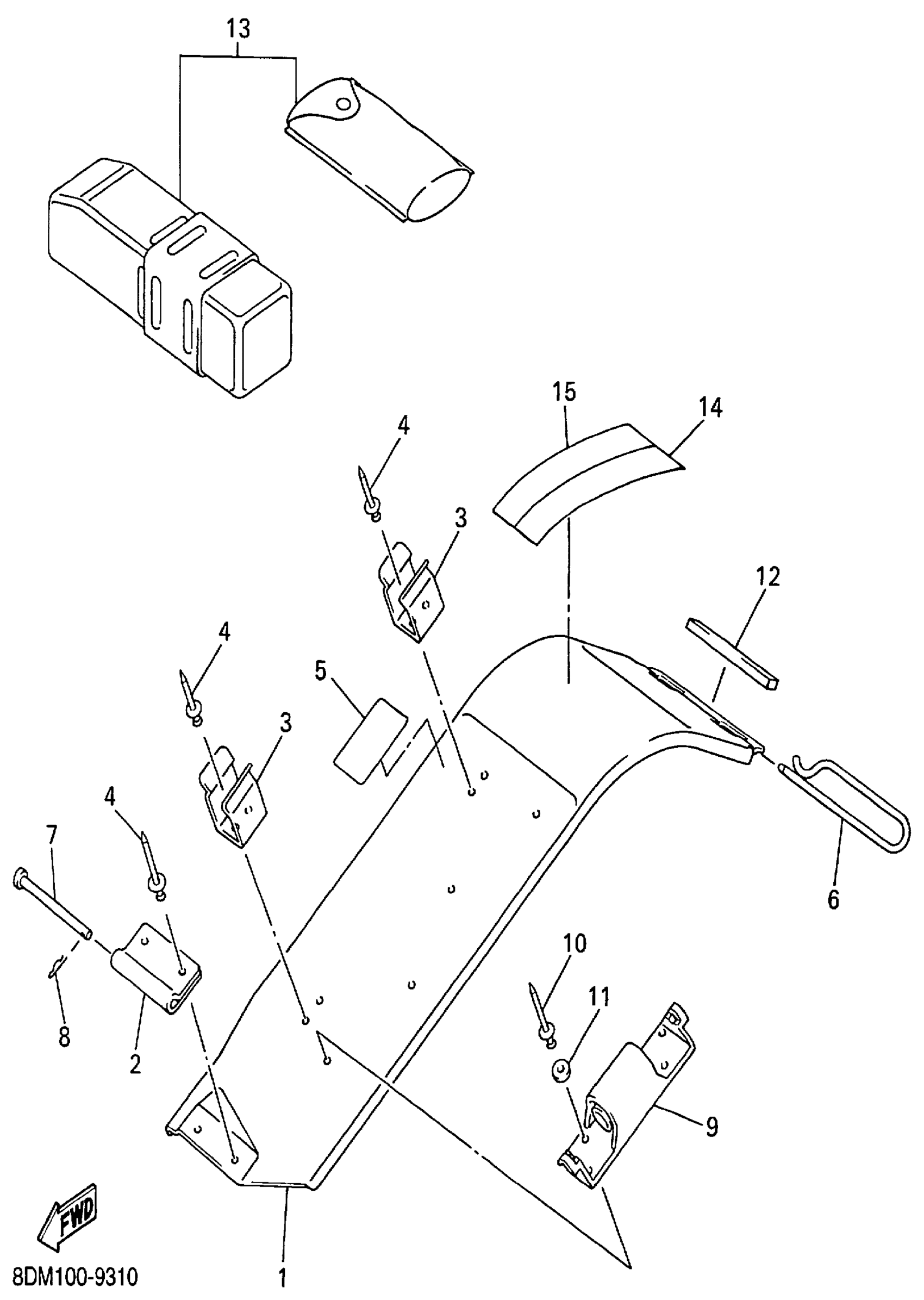

Yamaha VT700C (VENTURE 700) 8DM2 1999 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

GUARD, DRIVE

8CR-77311-10-00

Unavailable

2

BRACKET 1

8CR-77315-00-00

Unavailable

3

STAY, BELT

8CR-77338-00-00

$4.80

4

RIVET, BLIND(8CR)

90267-47186-00

$2.20

5

LABEL, WARNING 2

8BD-77762-00-00

$3.89

6

PIN

8CR-77384-01-00

$11.60

7

PIN(8E7)

91701-06082-00

$4.53

8

CLIP (7U6)

90468-18121-00

$1.49

9

PLUG HOLDER ASSY

8CR-77378-00-00

$35.41

10

RIVET, BLIND

90267-48060-00

$1.97

11

WASHER, PLATE(39X)

90201-057H5-00

$2.86

12

DAMPER 1

8CR-77319-00-00

$1.49

13

TOOL KIT

8DF-28100-00-00

Unavailable

14

LABEL 1

8CW-47578-00-00

Unavailable

15

LABEL, CAUTION

8CH-1417E-00-00

Unavailable

15

LABEL, CAUTION

8DG-1417E-00-00

Unavailable
