Description

Price

1

GEAR 1

8DM-1760A-18-00

Unavailable

2

SCREW, CROSSRECESSED ROUND

90150-08008-00

$4.82

3

CLAMP(4MX)

90465-06376-00

$9.49

4

. CLAMP

90465-10381-00

Unavailable

5

CLAMP(4FM)

90464-15195-00

$4.41

6

CLAMP(4FM)

90464-15195-00

$4.41

7

Y50N18LA YUASA BATTERY

Y50-N18LA-00-00

Unavailable

8

DAMPER

8CW-82176-00-00

Unavailable

9

PIPE (L320)

8CW-8235W-01-00

Unavailable

10

CLIP(41W)

90467-08092-00

$9.49

11

. BRACKET, BATTERY

8DM-2199G-00-00

Unavailable

12

BOLT, FLANGE

95817-06014-00

Unavailable

13

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

14

. SEAT, BATTERY

8DM-82122-00-00

Unavailable

15

BAND, BATTERY

8DM-82131-10-00

$16.49

16

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

17

. WIRE, SUB LEAD

8DY-82509-00-00

Unavailable

18

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

20

COVER, BATTERY

8DM-82129-01-00

Unavailable

21

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

22

TRIPLE ELECTRIC START KIT

8DS-W8180-15-KT

Unavailable

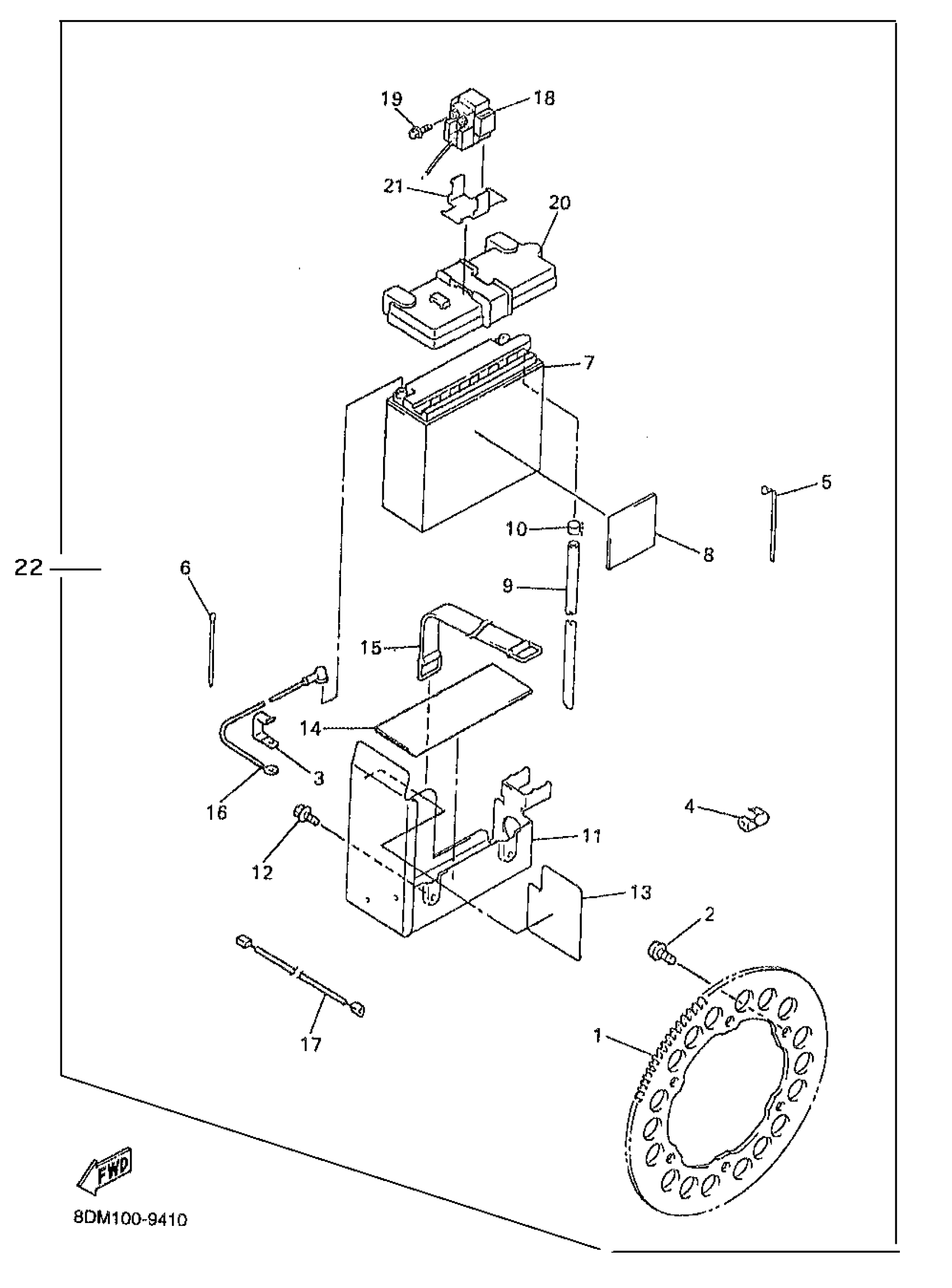

Yamaha VT700C (VENTURE 700) 8DM2 1999 ELECTRICAL 2 Diagram

GEAR 1

SCREW, CROSSRECESSED ROUND

CLAMP(4MX)

. CLAMP

CLAMP(4FM)

CLAMP(4FM)

Y50N18LA YUASA BATTERY

DAMPER

PIPE (L320)

CLIP(41W)

. BRACKET, BATTERY

BOLT, FLANGE

. SHIELD, HEAT

. SEAT, BATTERY

BAND, BATTERY

WIRE, PLUS LEAD

. WIRE, SUB LEAD

STARTER RELAY ASSY (RC19-016)

BOLT, SMALL FLANGE

COVER, BATTERY

. HOLDER, RELAY

TRIPLE ELECTRIC START KIT
