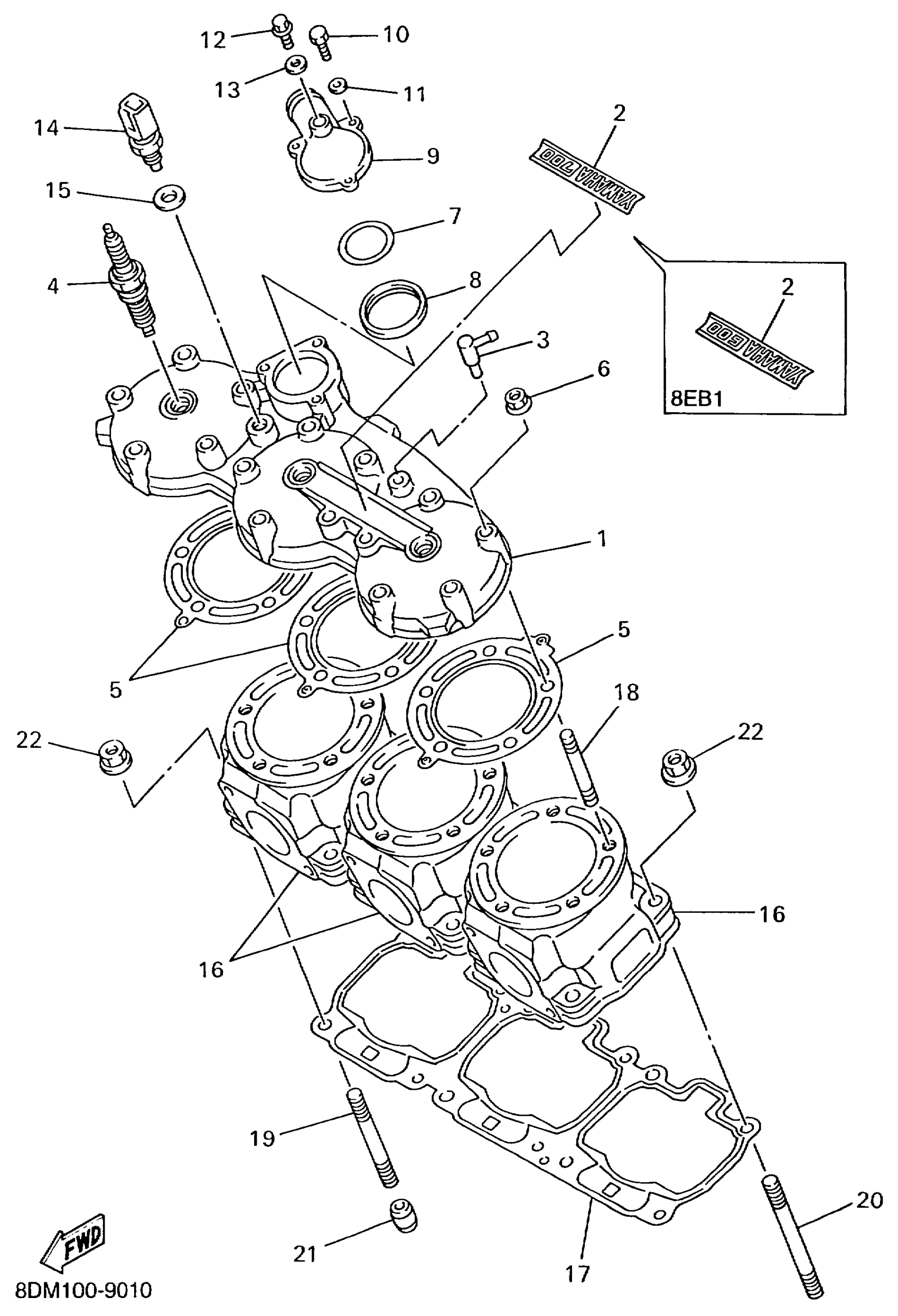

Yamaha VT700C (VENTURE 700) 8DM2 1999 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8CH-11111-10-00

Unavailable

1

HEAD, CYLINDER 1

8DG-11111-00-00

$485.35

2

EMBLEM

8CH-1111K-00-00

Unavailable

2

EMBLEM

8DG-1111K-00-00

Unavailable

3

JOINT 1

8CH-12469-00-00

$31.77

4

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

$3.96

5

GASKET, CYLINDER HEAD 1

8CH-11181-01-00

$67.12

5

GASKET, CYLINDER HEAD 1

8DG-11181-00-00

Unavailable

6

NUT(55X)

90179-08491-00

$2.17

7

WASHER, PLATE (8U9)

90201-345G2-00

$10.68

8

SEAL, THERMOSTAT

8A7-12412-01-00

$14.25

9

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

10

BOLT, HEXAGON

97017-06020-00

$2.55

11

WASHER(6TA)

92907-06600-00

$0.78

12

BOLT, FLANGE

95817-06012-00

$1.49

13

GASKET (4V2)

90430-06166-00

$3.45

14

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

15

WASHER, PLATE

90201-12790-00

$6.85

16

CYLINDER 1

8CH-11311-02-00

$849.99

16

CYLINDER 1

8DG-11311-00-00

Unavailable

17

GASKET, CYLINDER

8CH-11351-00-00

$79.85

18

BOLT, STUD (5X4)

90116-08392-00

$3.84

19

BOLT STUD 363111790000

90116-08104-00

$14.38

20

BOLT, STUD (8H8)

90116-08302-00

$9.10

21

PIN, DOWEL(3VD)

99530-10114-00

$2.23

22

NUT(55X)

90179-08491-00

$2.17
