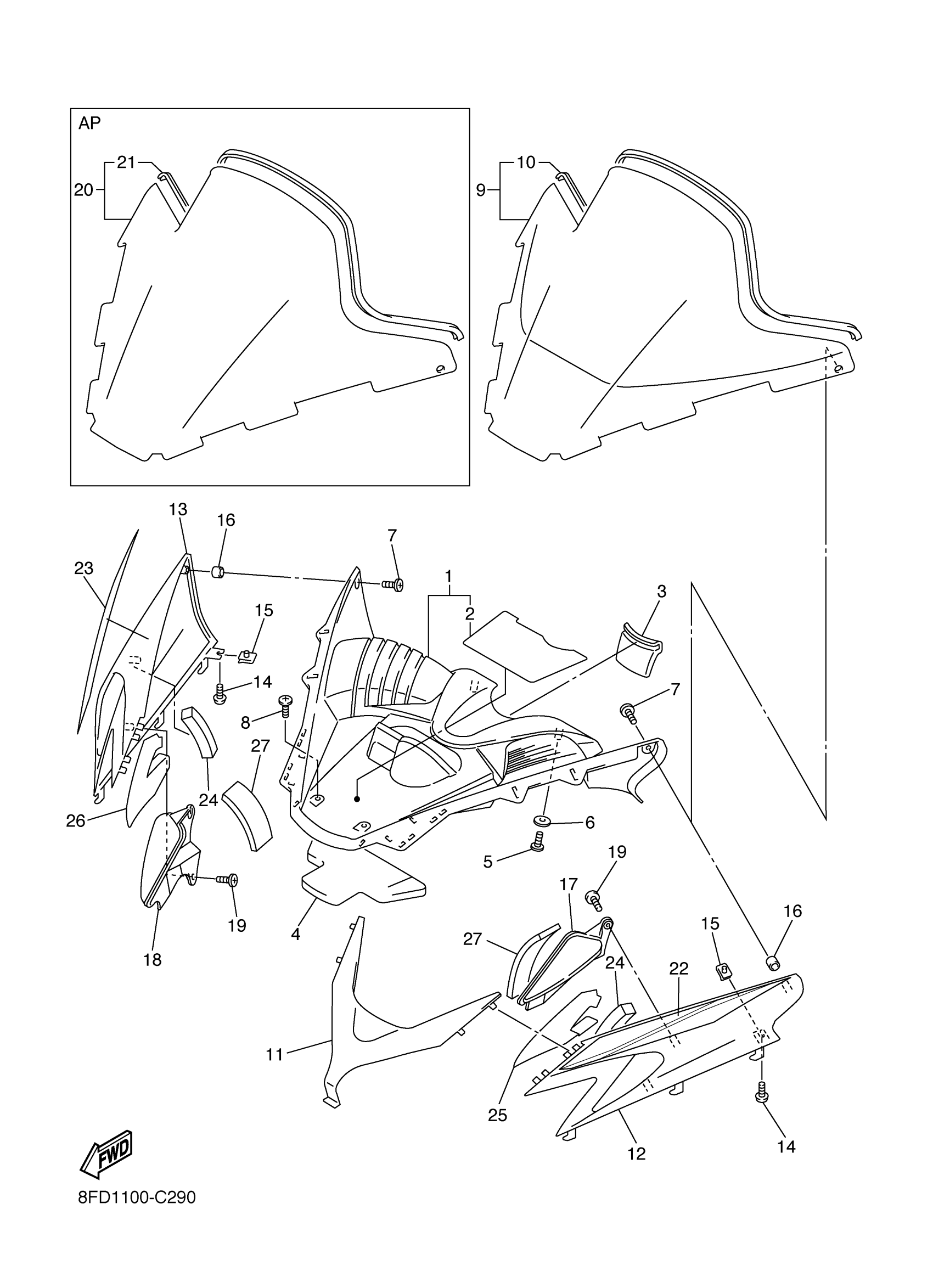

Yamaha VT60L (VENTURE 600) 8FD5 2006 WINDSHIELD Diagram
#
Description
Price
1
COVER, HEADLIGHT
8EK-W7725-10-00
$344.99
2
DAMPER 1
8EK-77198-10-00
$44.99
3
TRIM, SEAT
8FE-78447-00-00
Unavailable
4
DAMPER, NOISE 17
8EK-77277-00-00
Unavailable
5
SCREW, TAPPING(4TV)
90167-05078-00
$8.49
6
WASHER, PLATE 8067717800
90201-05029-00
$8.49
7
SCREW, TAPPING
90167-05079-00
$4.14
8
SCREW, BINDING
98907-06014-00
$7.99
9
WINDSHIELD COMP.
8FB-K7210-00-00
Unavailable
10
. TRIM, UPPER
8FB-K7213-00-00
Unavailable
11
FAIRING
8EK-77231-20-00
Unavailable
12
FAIRING 2
8EK-7723A-10-00
Unavailable
13
FAIRING 3
8EK-7723B-10-00
Unavailable
14
SCREW, BINDING
98907-06020-00
$8.49
15
NUT, SPRING(4ES)
90183-06069-00
Unavailable
16
DAMPER
8EK-77238-00-00
Unavailable
17
PLATE 1
8EN-77185-00-00
Unavailable
18
PLATE 2
8EN-77186-00-00
Unavailable
19
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
20
WINDSHIELD COMP.
8EK-K7210-00-00
Unavailable
21
. TRIM, UPPER
8EK-K7213-00-00
Unavailable
22
GRAPHIC, FAIRING 1
8FD-77252-00-00
Unavailable
23
GRAPHIC, FAIRING 2
8FD-77253-00-00
Unavailable
24
LINING, SHROUD 1
8EY-77261-00-00
Unavailable
25
TAPE 1
8EY-7824H-00-00
Unavailable
26
TAPE 2
8EY-7824G-00-00
Unavailable
27
LINING, SHROUD 2
8EY-77262-00-00
Unavailable
