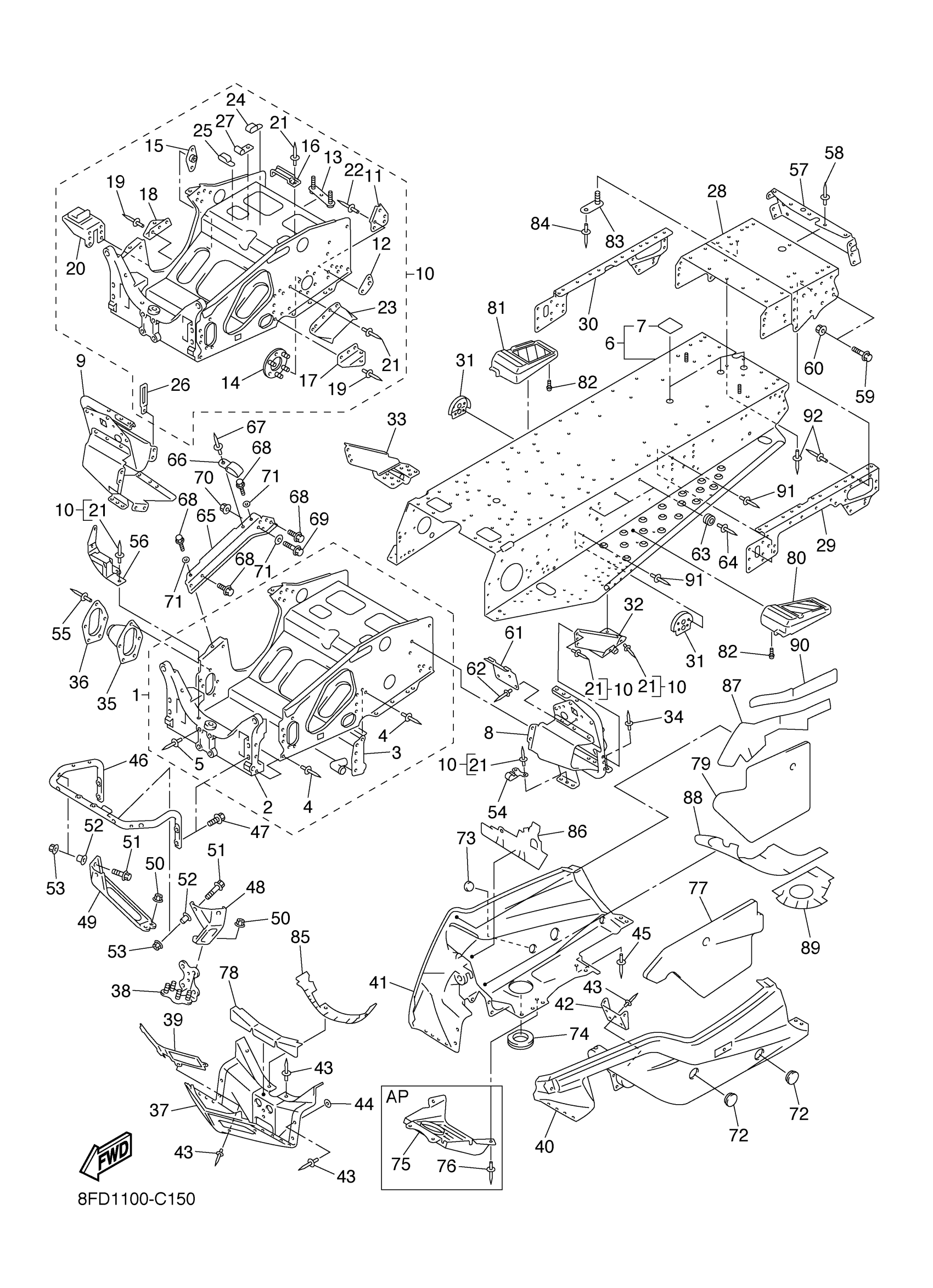

Yamaha VT60L (VENTURE 600) 8FD5 2006 FRAME Diagram
#
1
FRONT FRAME COMP.
8FD-21940-09-00
Unavailable
2
. BULKHEAD
8EK-2191A-00-00
Unavailable
3
. HEAT EXCHANGER ASSY
8EX-12440-10-00
Unavailable
4
RIVET, BLIND
90267-48016-00
$10.49
5
RIVET, BLIND (8J5)
90267-48057-00
$8.49
6
REAR FRAME COMP.
8FF-21950-09-00
Unavailable
7
COVER 3
8CR-2198J-00-00
Unavailable
8
FOOTREST COMP. 1
8EK-21960-09-00
Unavailable
9
FOOTREST COMP. 2
8EK-21970-09-00
Unavailable
10
FRAME CONNECTION KIT
8EX-W2195-00-00
Unavailable
11
BRACKET, MAIN TRACK 1
8CR-21943-01-00
$6.99
12
BRACKET, MAIN TRACK 2
8CR-21953-00-00
$2.24
13
BRACKET 3
8CR-2196F-00-00
Unavailable
14
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
$19.99
15
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
16
CLAMP, FUEL PIPE
8DN-21977-00-00
Unavailable
17
PANEL, SUB FRAME 6
8EK-21917-00-00
Unavailable
18
PANEL, SUB FRAME 7
8EK-21918-00-00
Unavailable
19
RIVET, BLIND
90267-48016-00
$10.49
20
STAY, MUFFLER
8EX-2194J-00-00
Unavailable
21
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
22
RIVET, BLIND
90267-47197-00
Unavailable
23
COVER 2
8CR-2198G-01-00
Unavailable
24
CLAMP(83R)
90461-08113-00
Unavailable
25
CLAMP(8CR)
90461-06142-00
Unavailable
26
CLAMP
90462-10236-00
Unavailable
27
CLAMP
90461-10148-00
Unavailable
28
PANEL,SUB-FRAME5
8CW-21916-02-00
Unavailable
29
PATCH 4
8CW-21964-02-00
Unavailable
30
PATCH 5
8CW-21965-02-00
Unavailable
31
BRACKET, MAIN TRACK 1
8CW-21943-00-00
Unavailable
32
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
33
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
34
RIVET
90269-07080-00
Unavailable
35
COVER 1
8DN-2198F-00-00
Unavailable
36
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
37
PANEL, SUB FRAME 1
8EX-21912-00-00
Unavailable
38
PLATE, BACK UP
8EK-23788-00-00
Unavailable
39
STAY 4
8CR-77128-00-00
Unavailable
40
FRAME UNDER 1
8EK-2196A-01-00
Unavailable
41
FRAME, UNDER 2
8EK-2196E-01-00
Unavailable
42
BRACKET, GUARD FITTING
8EK-21972-00-00
Unavailable
43
RIVET, BLIND
90267-48018-00
Unavailable
44
WASHER PLATE 829771780000
90201-05033-00
Unavailable
45
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
46
BUMPER, FRONT 2
8EK-77512-00-00
Unavailable
47
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
48
BRACKET, FRONT
8EK-21949-00-00
Unavailable
49
BRACKET, FRONT BUMPER
8EK-21959-00-00
Unavailable
50
NUT, SELF-LOCKING
90185-08169-00
Unavailable
51
BOLT, FLANGE
95817-08035-00
Unavailable
52
COLLAR
90387-08015-00
Unavailable
53
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
54
CLAMP, WIREHARNESS
8EK-21999-00-00
Unavailable
55
RIVET, BLIND
90267-47197-00
Unavailable
56
BRACKET, SPRING
8EX-21971-00-00
Unavailable
57
REINEFORCEMENT, FRAME REAR 1
8CR-21923-02-00
Unavailable
58
RIVET, BLIND
90267-47195-00
Unavailable
59
BOLT, SMALL FLANGE
95027-08016-00
Unavailable
60
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
61
HOOK
8CR-21973-00-00
Unavailable
62
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
63
BUTT0N
81K-2471F-00-00
Unavailable
64
RIVET, BLIND(81K)
90267-40135-00
Unavailable
65
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
Unavailable
66
CLAMP(83R)
90461-08113-00
Unavailable
67
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
68
BOLT, FLANGE
95817-10020-00
Unavailable
69
BOLT,FLANGE
95817-10065-00
Unavailable
70
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
71
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
72
PLUG (8H8)
90338-44093-00
Unavailable
73
PLUG(8CJ)
90338-30256-00
Unavailable
74
SPACER
8DF-21998-10-00
Unavailable
75
PROTECTOR, MUFFLER
8EN-2194H-00-00
Unavailable
76
RIVET, BLIND
90267-49004-00
Unavailable
77
LINING, SHROUD 2
8EK-77262-00-00
Unavailable
78
LINING, SHROUD 3
8EK-77263-00-00
Unavailable
79
LINING, SHROUD 4
8EK-77264-10-00
Unavailable
80
FOOTREST, REAR 1
8DM-27431-03-00
Unavailable
81
FOOTREST, REAR 2
8DM-27441-03-00
Unavailable
82
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
83
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
84
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
85
LINING, SHROUD 4
8EX-77264-00-00
Unavailable
86
LINING, SHROUD 5
8EX-77265-00-00
Unavailable
87
LINING, SHROUD 6
8EX-77266-00-00
Unavailable
88
LINING, SHROUD 7
8EX-77267-00-00
Unavailable
89
LINING,SHROUD 8
8EX-77268-00-00
Unavailable
90
TAPE,5
8EX-7717J-00-00
Unavailable
91
RIVET, BLIND
90267-47195-00
Unavailable
92
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
