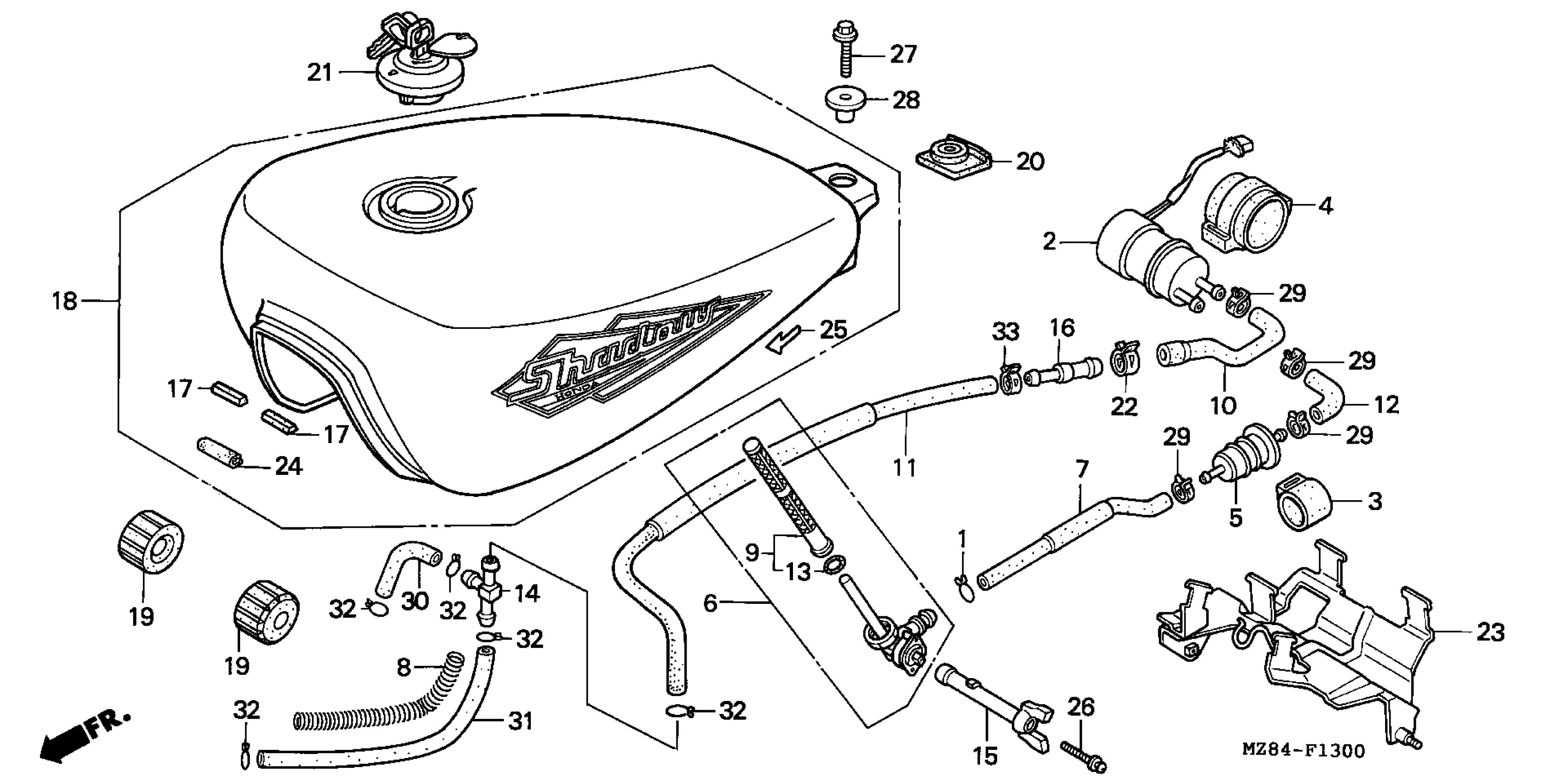

Honda VT600CDAC (95) SHADOW VLX DELUXE, JPN, VIN# JH2PC214-SM200001 FUEL TANK Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.48

2

PUMP ASSY., FUEL (MITSUBISHI) (MSDS) This part replaces 16710-MR1-005.

16710-MR1-015

$228.00

2

PUMP ASSY., FUEL (MITSUBISHI) (MSDS)

16710-MR1-015

$228.00

3

HOLDER, STRAINER

16711-MF2-000

$15.81

4

RUBBER, FUEL PUMP SHOCK

16711-KAF-305

$12.93

4

RUBBER, FUEL PUMP SHOCK This part replaces 16711-ML7-000.

16711-KAF-305

$12.93

5

FILTER, FUEL

16900-MG8-003

$21.10

6

PETCOCK ASSY.

16950-KAF-000

$87.24

7

TUBE A, FUEL

16951-MR1-000

$12.60

8

WIRE B, GUARD

16952-MF5-000

Unavailable

9

SCREEN, FUEL STRAINER

16952-MR1-005

$31.19

10

TUBE C, FUEL

16953-MR1-000

$8.25

11

TUBE D, FUEL

16955-MR1-000

$15.68

12

TUBE B, FUEL

16956-MR1-000

$4.06

13

O-RING

16958-KM9-005

$3.62

14

JOINT, FUEL TUBE

16958-MB0-000

$10.86

15

LEVER, PETCOCK

16963-MR1-000

$32.36

16

JOINT, FUEL TUBE

16966-MR1-000

$7.05

17

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.38

18

TANK SET, FUEL *R208C* (TYPE18) (WL) (CANDY PUEBLO RED) (NOT AVAILABLE)

17520-MZ8-B20ZD

Unavailable

18

TANK SET, FUEL *P20P* (TYPE17) (WL) (PEARL PARAGON PURPLE) (NOT AVAILABLE)

17520-MZ8-B20ZC

Unavailable

19

CUSHION, FR. FUEL TANK

17611-KE8-000

$3.92

19

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$3.92

20

CUSHION, RR. FUEL TANK

17613-MR1-000

$13.30

21

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$63.69

22

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

23

PLATE, FUEL PUMP (SOURCE: VINTAGE PARTS INC.)

50340-MR1-000

Unavailable

24

RUBBER, PROTECTOR

83171-MT3-300

Unavailable

25

MARK, FUEL PETCOCK (SOURCE: VINTAGE PARTS INC.)

83607-MR1-300

Unavailable

26

SCREW-WASHER (5X25)

90020-KV3-000

$3.00

27

BOLT, FLANGE (8X28)

90105-MR1-000

$3.97

28

COLLAR, FUEL TANK SETTING

90324-MR1-000

$10.53

29

CLAMP, CANISTER HOSE

90682-SA0-671

$7.13

30

BULK HOSE, FUEL (7.5X8000) (7.5X35)

95001-75008-60M

$93.20

31

BULK HOSE, FUEL (7.5X8000) (7.3X200)

95001-75008-60M

$93.20

32

CLIP, TUBE (B12)

95002-02120

Unavailable

33

CLAMP, TUBE (D12)

95002-41200-08

$2.30
