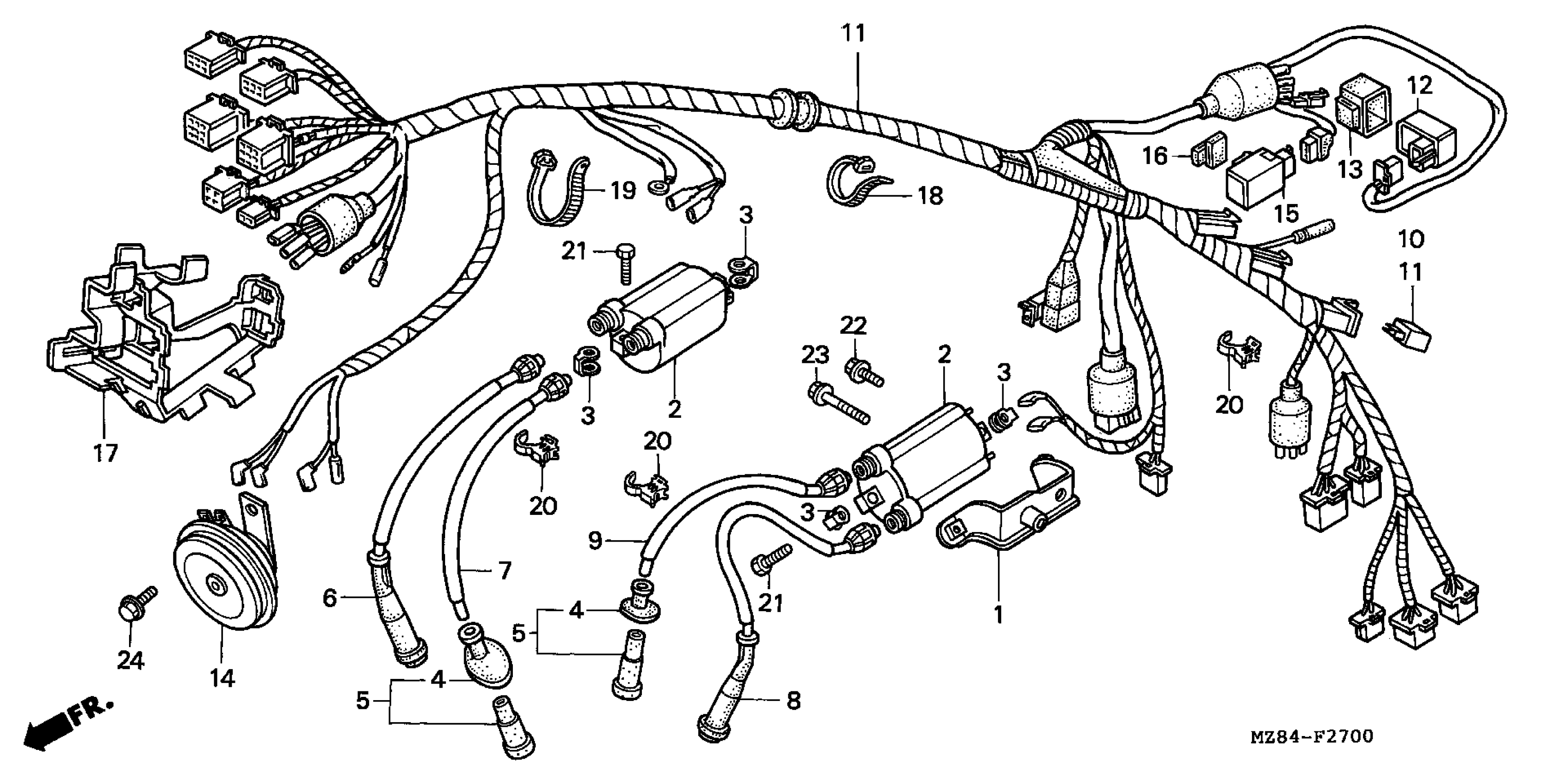

Honda VT600CDA (98) SHADOW VLX DELUXE, JPN, VIN# JH2PC213-WM500001 WIRE HARNESS Diagram

#

Description
Price

1

STAY, RR. IGNITION COIL

30507-MR1-000

Unavailable

2

COIL, IGNITION (TEC)

30510-MM8-003

$102.89

3

SPACER, IGNITION COIL

30520-ML7-000

$3.61

4

SEAL, PLUG CAP

30605-MF5-000

$18.62

5

CAP ASSY., NOISE SUPPRESSOR

30701-MF5-000

$31.64

6

CAP ASSY. 1, IGNITION

30751-MR1-000

$41.40

7

WIRE 2, IGNITION

30752-MR1-000

$25.51

8

CAP ASSY. 3, IGNITION

30753-MR1-000

$41.40

9

WIRE 4, IGNITION

30754-MR1-000

$22.59

10

RECTIFIER, SILICON

31700-196-000

$24.24

11

WIRE HARNESS (NOT AVAILABLE)

32100-MZ8-000

Unavailable

12

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$87.61

13

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.23

14

HORN (HIGH)

38110-KV0-008

Unavailable

15

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$95.21

16

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.34

17

HOLDER, L. FR. CONNECTOR

50352-MR1-000

Unavailable

18

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

19

BAND, SUCTION HOSE (BLACK)

90679-SG9-E01

$3.44

20

CLIP, CABLE (10MM)

90690-GHB-641

$2.01

21

BOLT, HEX. (6X20)

92101-06020-4J

$1.28

22

BOLT, FLANGE (6X10)

95701-06010-08

$1.49

23

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

24

BOLT, FLANGE (8X12)

96300-08012-00

$2.62
