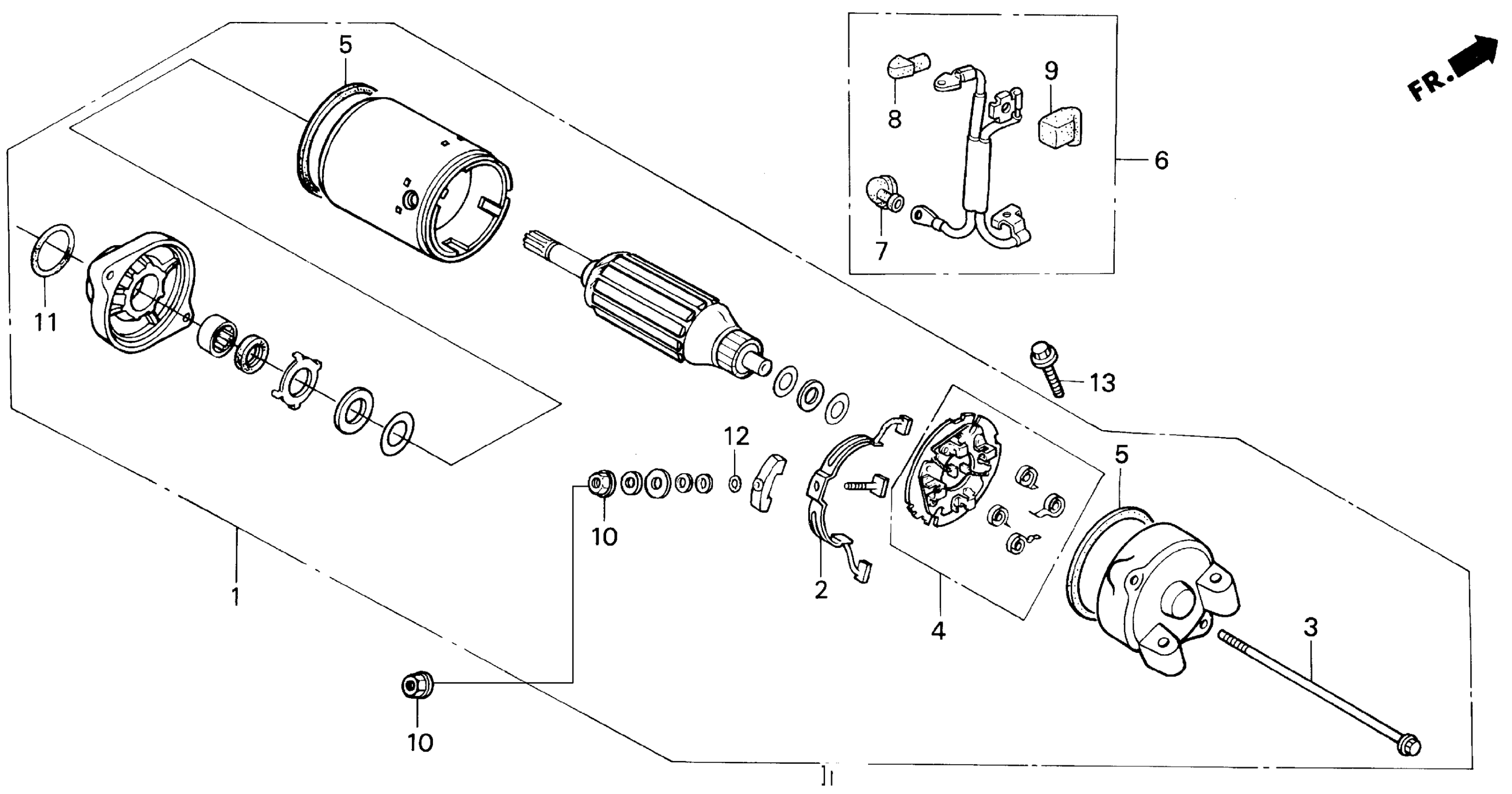

Honda VT600CDA (98) SHADOW VLX DELUXE, JPN, VIN# JH2PC213-WM500001 STARTER MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-MR1-831

Unavailable

TERMINAL SET, BRUSH

31201-MR6-008

$21.00

BOLT, SETTING

31205-MR1-008

$3.64

HOLDER SET, BRUSH

31206-MR6-008

$22.08

RING

31207-KS5-901

$2.90

CABLE SET, STARTER MOTOR & BATTERY GROUND

32411-MY0-770

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

COVER B, STARTER MAGNETIC

32416-MR1-000

$4.43

COVER, BATTERY TERMINAL

32418-MR1-000

$4.84

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

BOLT, FLANGE (6X32)

96001-06032-00

$1.28
