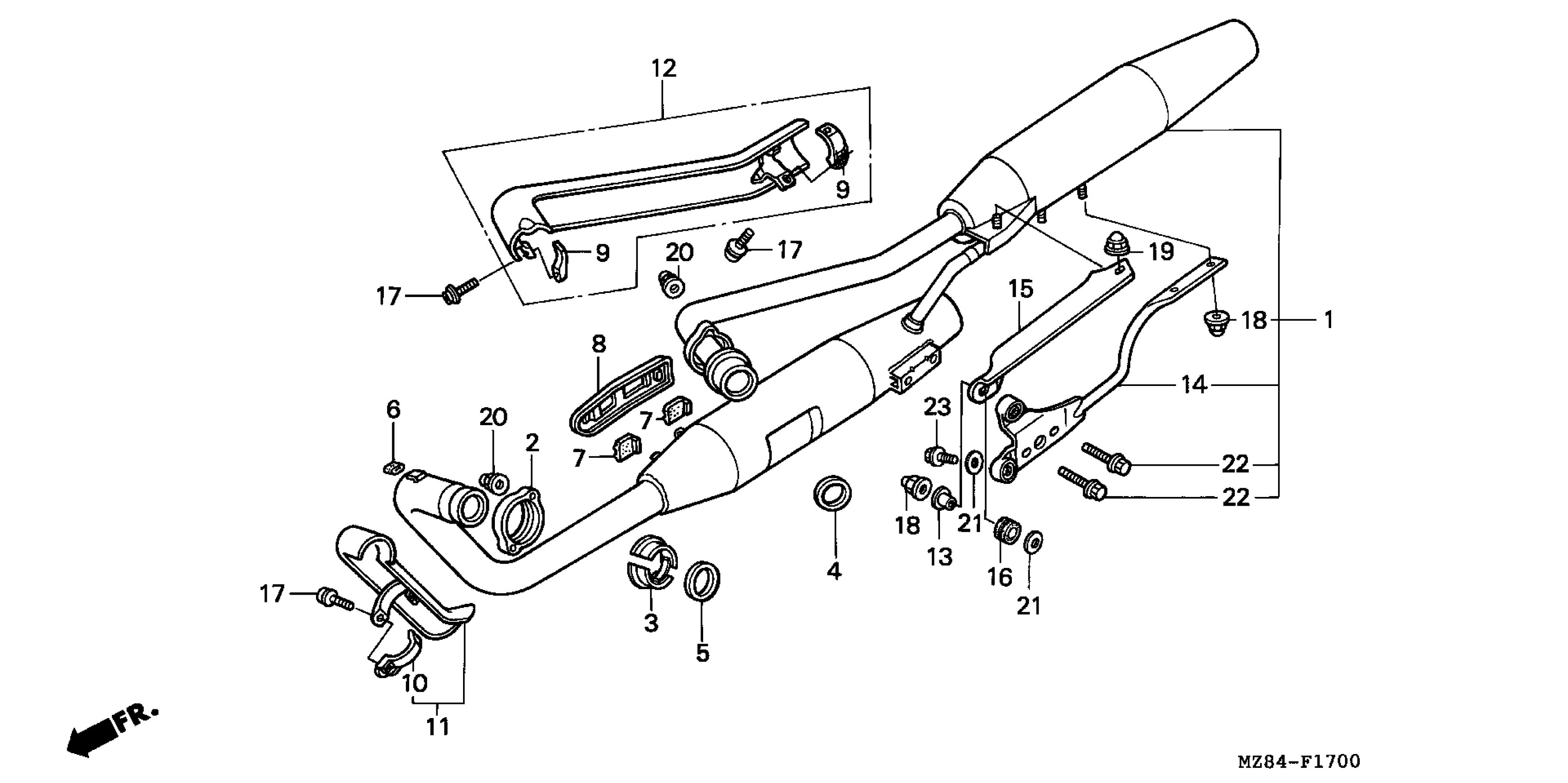

Honda VT600CDA (98) SHADOW VLX DELUXE, JPN, VIN# JH2PC213-WM500001 MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY., EX. (NOT AVAILABLE)

18100-MZ8-B01

Unavailable

2

JOINT, FR. EX. PIPE

18231-MR1-000

Unavailable

3

COLLAR, EX. PIPE JOINT This part replaces 18233-MR1-000.

18233-MR1-010

$10.59

3

COLLAR, EX. PIPE JOINT

18233-MR1-010

$10.59

4

GASKET, EX. PIPE

18291-MM5-860

$5.17

5

GASKET, EX. PIPE

18291-MN4-920

$5.31

6

RUBBER, PROTECTOR GASKET

18293-ME9-000

$3.02

7

RUBBER, PROTECTOR

18293-MN0-000

$2.13

8

COVER, MUFFLER

18315-MR1-000

$37.20

9

BAND, EX. PIPE COVER

18376-MR1-000

$9.35

10

BAND, FR. COVER

18377-MR1-000

$9.92

11

COVER, FR. EX. PIPE

18415-MR1-003

Unavailable

12

COVER, RR. EX. PIPE

18418-MR1-003

$157.08

13

COLLAR (8MM)

18422-MR1-000

$5.62

14

BRACKET, MUFFLER

18455-MZ8-B00

Unavailable

15

BRACKET, MUFFLER (UPPER)

18456-MR1-003

Unavailable

16

GROMMET, RESERVE TANK

19111-MF5-000

$2.88

17

BOLT, SPECIAL FLANGE SOCKET (6X20)

90102-MK4-000

$3.18

18

NUT, FLANGE CAP (8MM)

90161-MM8-000

$2.92

19

NUT, CAP (8MM)

90208-438-000

$2.98

20

NUT, CAP (8MM)

90304-ME1-670

$5.94

21

WASHER, PLAIN (8MM)

94103-08700

$1.49

22

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

23

BOLT, FLANGE (8X32)

95701-08032-07

$1.80
