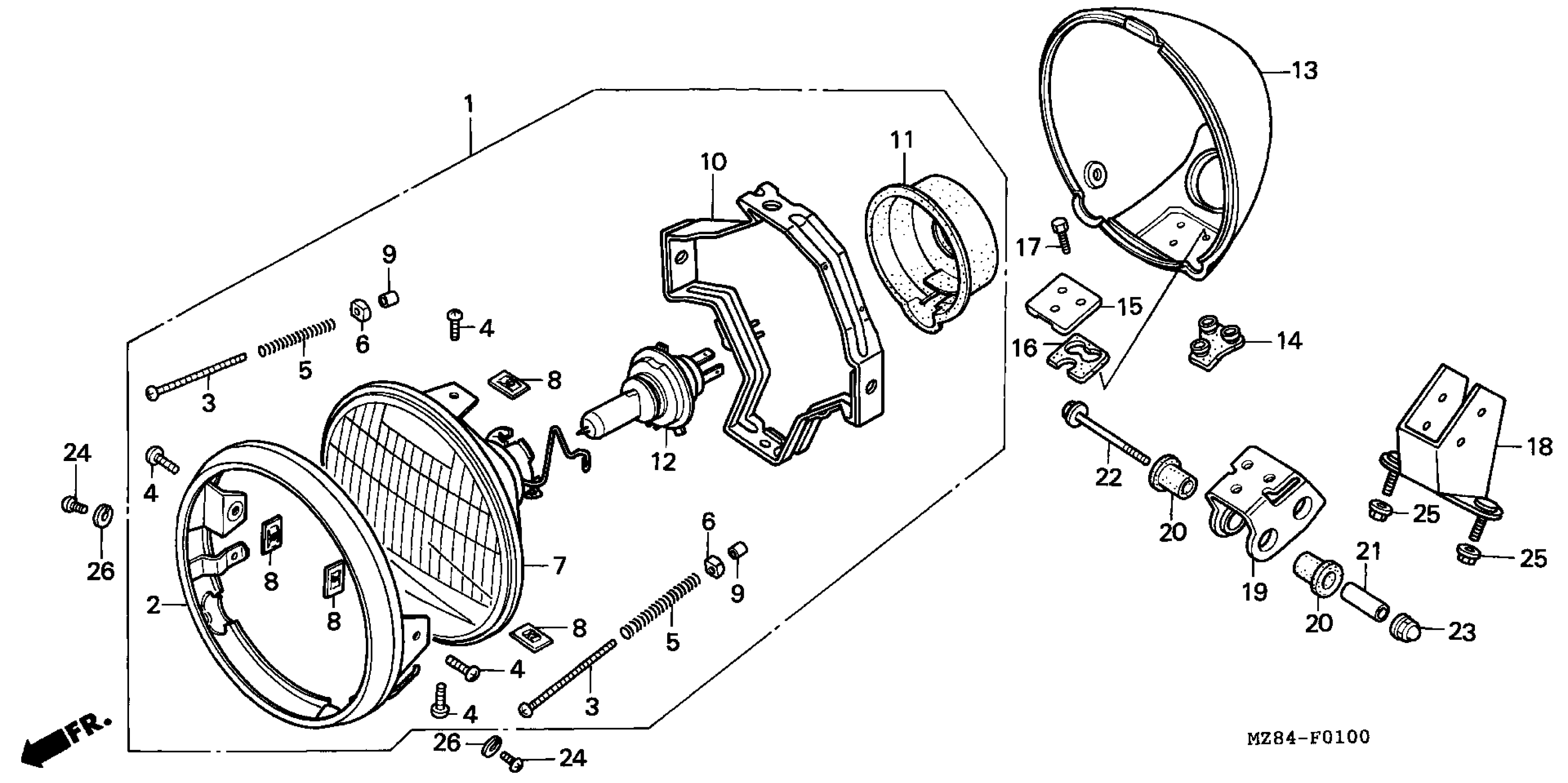

Honda VT600CDA (98) SHADOW VLX DELUXE, JPN, VIN# JH2PC213-WM500001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W) (SOURCE: VINTAGE PARTS INC.)

33100-MR1-671

Unavailable

2

RIM, HEADLIGHT

33101-MM2-003

Unavailable

3

SCREW, BEAM ADJUSTING

33103-MM2-003

$2.49

4

SCREW, PAN (5X8)

33104-MR1-670

$2.38

5

SPRING, BEAM ADJUSTING

33108-MM2-003

$2.97

6

NUT, BEAM ADJUSTING

33118-438-841

$2.03

7

HEADLIGHT UNIT

33120-MM2-671

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.80

9

COVER, SCREW

33136-426-830

$1.71

10

RING, HEADLIGHT (NOT AVAILABLE)

33153-MM2-003

Unavailable

11

COVER, RUBBER

33180-MJ0-010

$14.23

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$33.38

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$33.38

13

CASE, HEADLIGHT

61301-MR1-000

Unavailable

14

RUBBER, MOUNTING

61303-MR1-000

Unavailable

15

COLLAR

61304-MR1-000

$19.88

16

RUBBER B, MOUNTING

61305-MR1-000

$5.70

17

BOLT, HEX. (6X18)

61306-MR1-000

$1.86

18

STAY, HEADLIGHT

61311-MR1-000

Unavailable

19

BRACKET, HEADLIGHT

61315-MM8-003

Unavailable

20

RUBBER, HEADLIGHT MOUNTING

61315-MR1-000

$2.80

21

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.80

22

BOLT, CAP (6MM)

90132-MK7-000

$2.83

23

NUT, CAP (6MM)

90201-415-000

$1.96

24

SCREW, PAN (5X12)

93500-05012-0B

Unavailable

25

NUT, FLANGE (6MM)

94050-06000

$0.59

26

WASHER, SPRING (5MM)

94111-05000

$1.03
