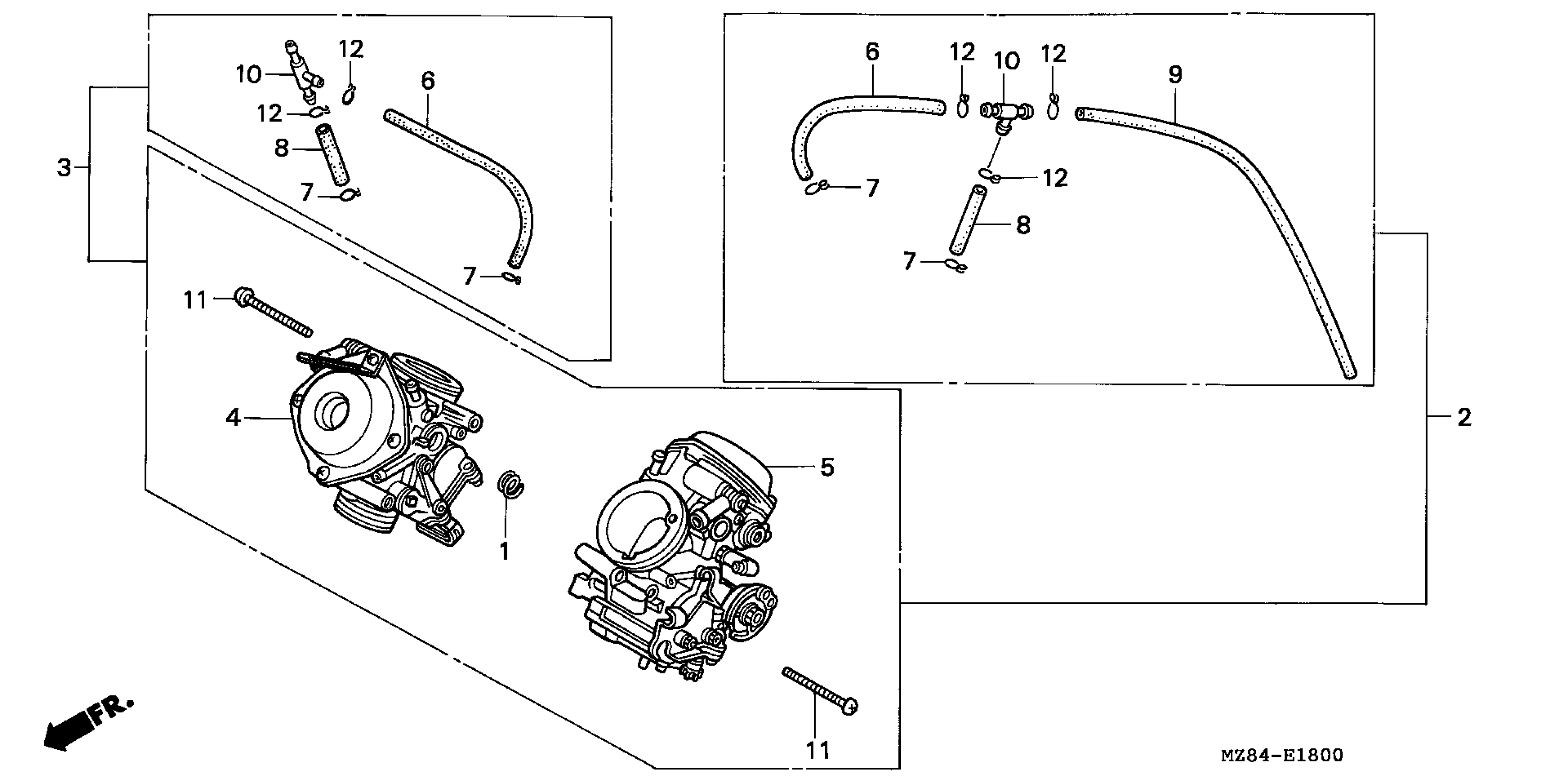

Honda VT600CDA (98) SHADOW VLX DELUXE, JPN, VIN# JH2PC213-WM500001 CARBURETOR ASSY. Diagram

#

Description

Price

1

SPRING This part replaces 16053-MG7-601.

16053-ME9-672

Unavailable

2

CARBURETOR ASSY. (VDFDA C) (NOT AVAILABLE)

16100-MY0-670

Unavailable

4

CARBURETOR ASSY., R. (NOT AVAILABLE)

16101-MY0-670

Unavailable

5

CARBURETOR ASSY., L. (SOURCE: VINTAGE PARTS INC.)

16102-MY0-670

Unavailable

6

TUBE

16143-MF5-671

$7.18

7

CLIP, TUBE

16163-KM4-004

$2.92

8

TUBE This part replaces 16198-MF5-671.

16143-MN8-014

Unavailable

9

TUBE (NOT AVAILABLE)

16199-MR1-671

Unavailable

10

T-JOINT

17195-MN5-000

$9.54

11

SCREW, PAN (5X40) (NOT AVAILABLE) This part replaces 93500-05040-1H.

93500-05040-0H

Unavailable

12

CLIP, TUBE (B10)

95002-02100

$1.90
