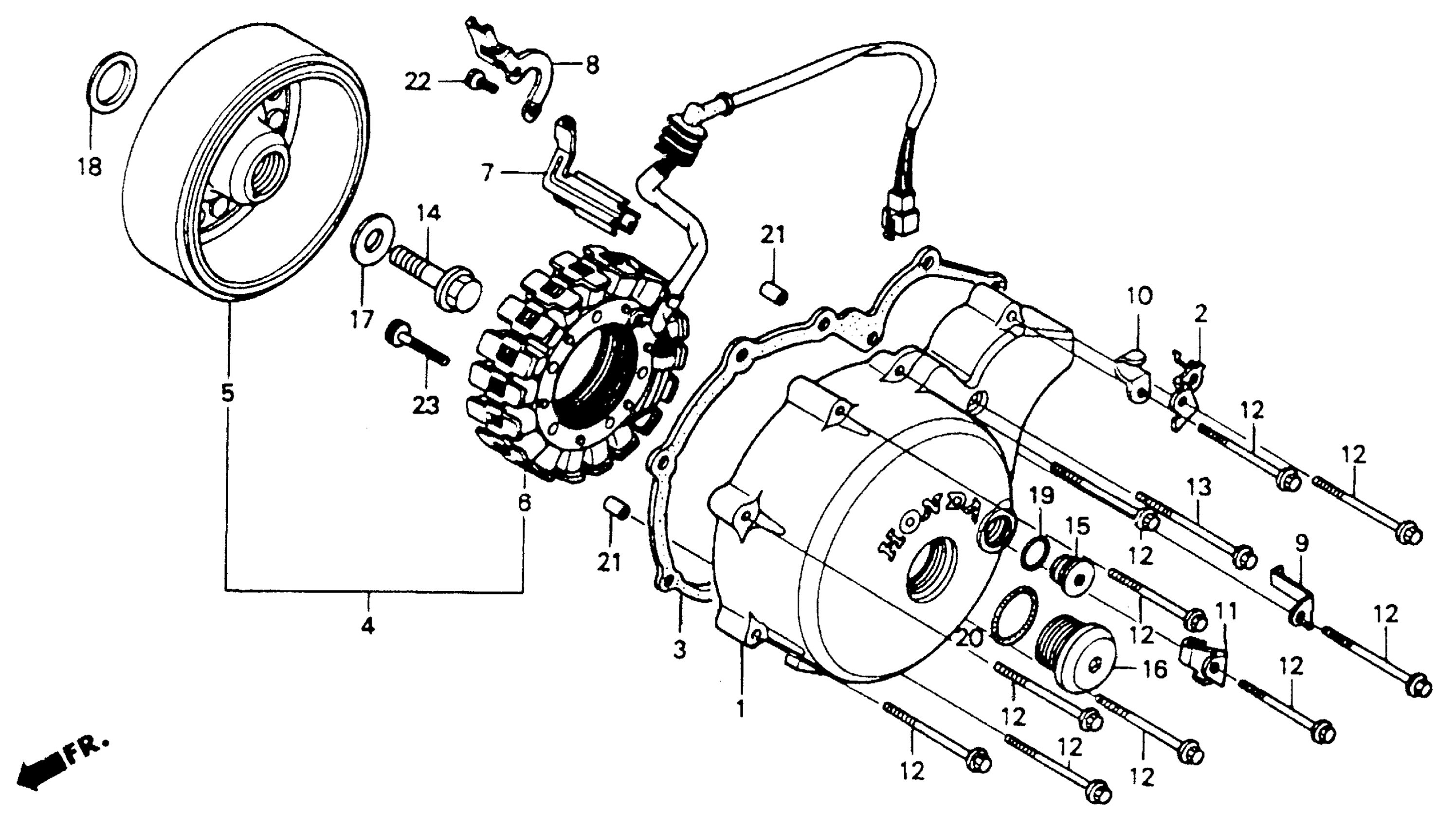

Honda VT600CDA (94) SHADOW VLX DELUXE, JPN, VIN# JH2PC213-RM100001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11341-MR1-700.

11341-MR1-701

Unavailable

2

STAY A, L. RR. COVER

11352-MR1-000

Unavailable

3

GASKET, L. COVER

11395-MV1-850

$13.97

4

GENERATOR ASSY., FLYWHEEL TYPEA.C. (DENSO) (NOT AVAILABLE)

31100-MR1-004

Unavailable

5

FLYWHEEL (DENSO) (NOT AVAILABLE)

31110-MR1-004

Unavailable

6

STATOR COMP. This part replaces 31120-MR1-004.

31120-MAV-003

Unavailable

7

CLAMP, ALTERNATOR WIRE

32961-MR1-000

Unavailable

8

CLAMP B, ALTERNATOR WIRE

32962-MR1-000

Unavailable

10

CLIP, ALTERNATOR WIRE (NOT AVAILABLE)

32972-KG0-000

Unavailable

11

CLAMP, OIL PRESSURE SWITCH WIRE (NOT AVAILABLE)

32972-MM9-000

Unavailable

12

BOLT, FLANGE (6X35) (NSHF) This part replaces 90003-MR1-000.

90004-GHB-700

$4.07

12

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

13

BOLT, FLANGE (6X45)

90001-GHB-720

Unavailable

13

BOLT, FLANGE (6X45) This part replaces 90004-MR1-000.

90001-GHB-720

Unavailable

14

BOLT, FLANGE

90025-MN8-000

$13.74

15

CAP (22MM)

90084-MR1-700

$33.31

16

CAP (30MM)

90087-MR1-700

$33.31

17

WASHER (12.5X34X5)

90402-PC6-000

$21.19

18

WASHER, THRUST (30X42X1)

90453-MM5-000

$6.54

19

O-RING (21.5X2) (ARAI)

91310-KE8-003

$2.44

20

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

20

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

21

PIN, DOWEL (8X14)

94301-08140

$2.25

22

BOLT, SOCKET (6X12) This part replaces 96700-06012-00.

96600-06012-00

$1.74

23

BOLT, SOCKET (6X32)

96700-06032-00

$1.80
