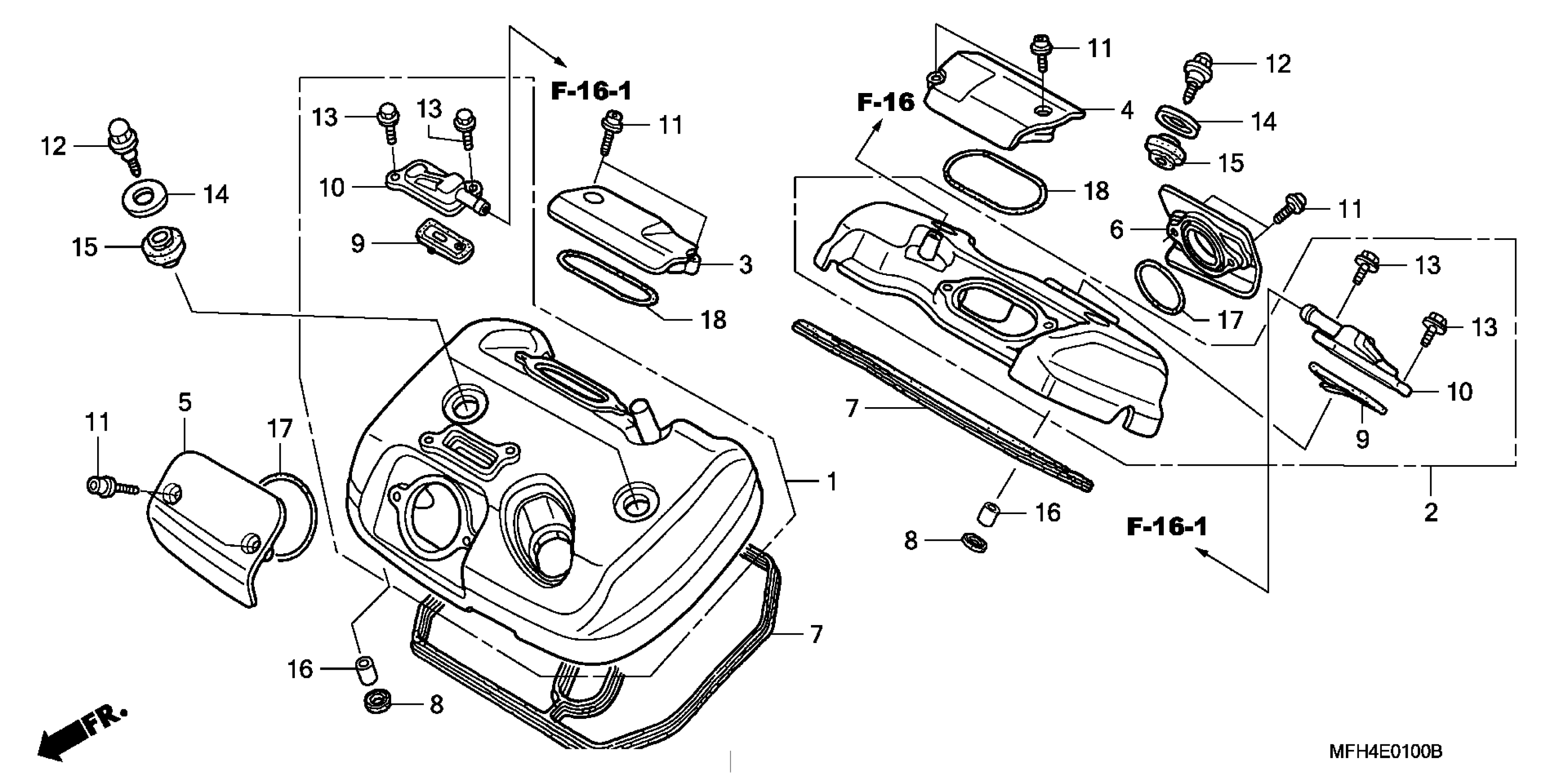

Honda VT600CDA (07) SHADOW VLX DELUXE, JPN, VIN# JH2PC214-7M800001 TO JH2PC214-7M809999 CYLINDER HEAD COVER Diagram

COVER ASSY., FR. CYLINDER HEAD

12310-MZ8-M90

$208.18

COVER ASSY., RR. CYLINDER HEAD

12320-MZ8-U80

$231.66

COVER, IN. TAPPET ADJUSTING

12351-MAV-000

$32.07

COVER, TAPPET ADJUSTING (RR.-IN.)

12351-MBS-840

$40.21

COVER, EX. TAPPET ADJUSTER

12361-MAV-000

Unavailable

COVER, TAPPET ADJUSTING (RR.-EX.)

12361-MBS-840

$40.21

GASKET, HEAD COVER

12391-MZ8-650

$21.16

GASKET B, CYLINDER HEAD COVER

12395-MAT-750

$4.03

VALVE, REED

18601-KGB-611

$26.51

COVER, REED VALVE

18612-MZ8-M90

$16.85

BOLT, FLANGE SOCKET (6X20)

90001-MR1-000

$3.43

BOLT, FLANGE (6X30)

90011-MA6-000

$3.89

BOLT, FLANGE (5X14)

90012-896-750

$1.49

WASHER, MOUNTING RUBBER

90541-MB0-000

$4.80

RUBBER, MOUNTING

90542-MB0-000

$3.15

PIN, DOWEL (10X16)

90701-MBL-G00

$2.89

O-RING (44X3) (ARAI)

91303-MF5-003

$4.99

O-RING (62.4X2.5) (ARAI)

91304-MF5-003

$6.31
