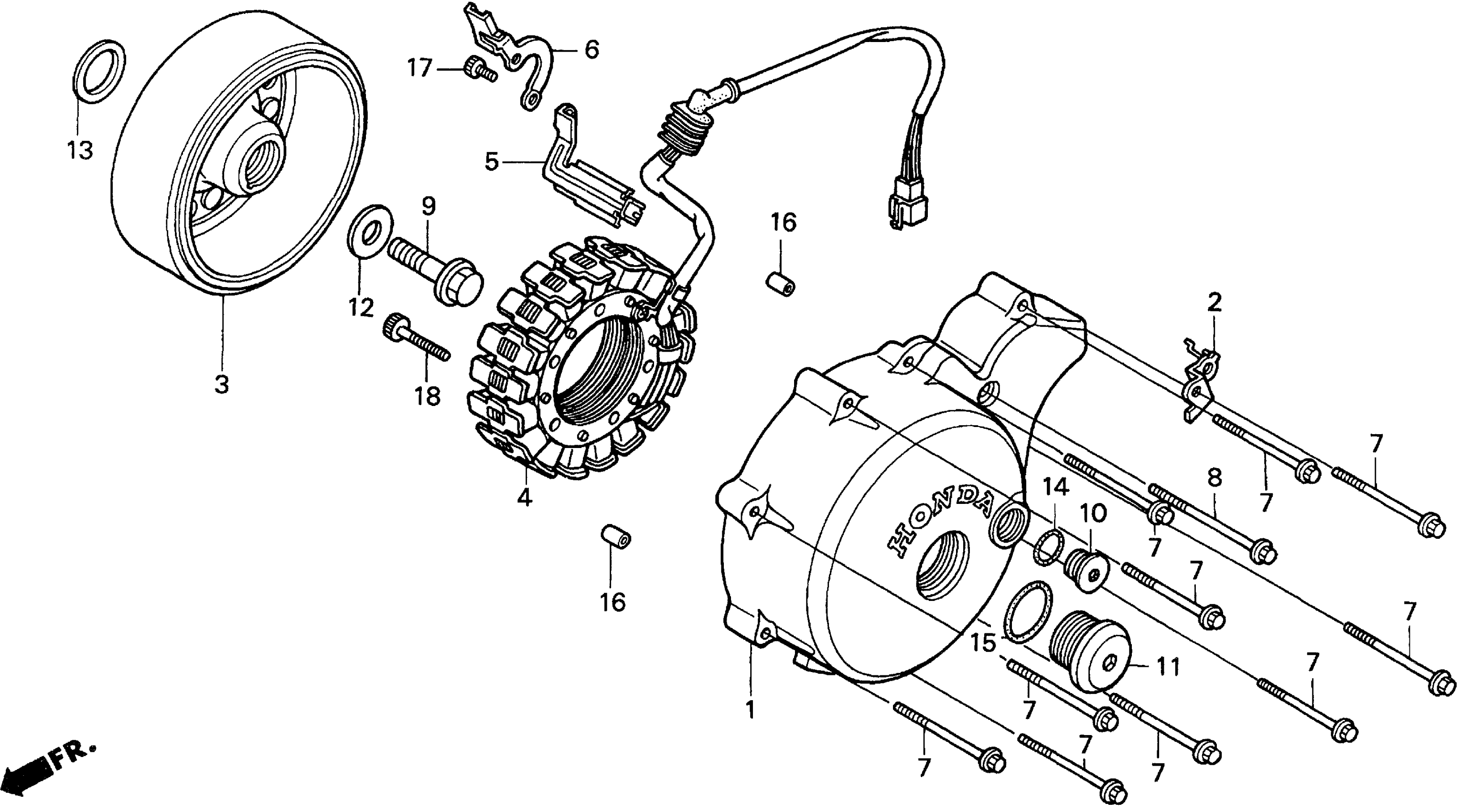

Honda VT600CDA (01) MOTORCYCLE, JPN, VIN# JH2PC213-1M210001 ALTERNATOR Diagram

COVER, L. CRANKCASE

11341-MBS-000

Unavailable

STAY A, L. RR. COVER

11352-MR1-000

Unavailable

FLYWHEEL

31110-MZ8-H01

Unavailable

STATOR

31120-MZ8-H01

$381.20

CLAMP, ALTERNATOR WIRE

32961-MR1-000

Unavailable

CLAMP B, ALTERNATOR WIRE

32962-MR1-000

Unavailable

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.22

BOLT, FLANGE (12X48) (LEFT HAND THREAD)

90025-MN8-000

$13.74

CAP (22MM)

90084-MR1-700

$33.31

CAP (30MM)

90087-MR1-700

$33.31

WASHER (12.5X34X5)

90402-PC6-000

$21.19

WASHER, THRUST (30X42X1)

90453-MM5-000

$6.54

O-RING (21.5X2) (ARAI)

91310-KE8-003

$2.44

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, SOCKET (6X12) This part replaces 96700-06012-00.

96600-06012-00

$1.74

BOLT, SOCKET (6X32)

96700-06032-00

$1.80
