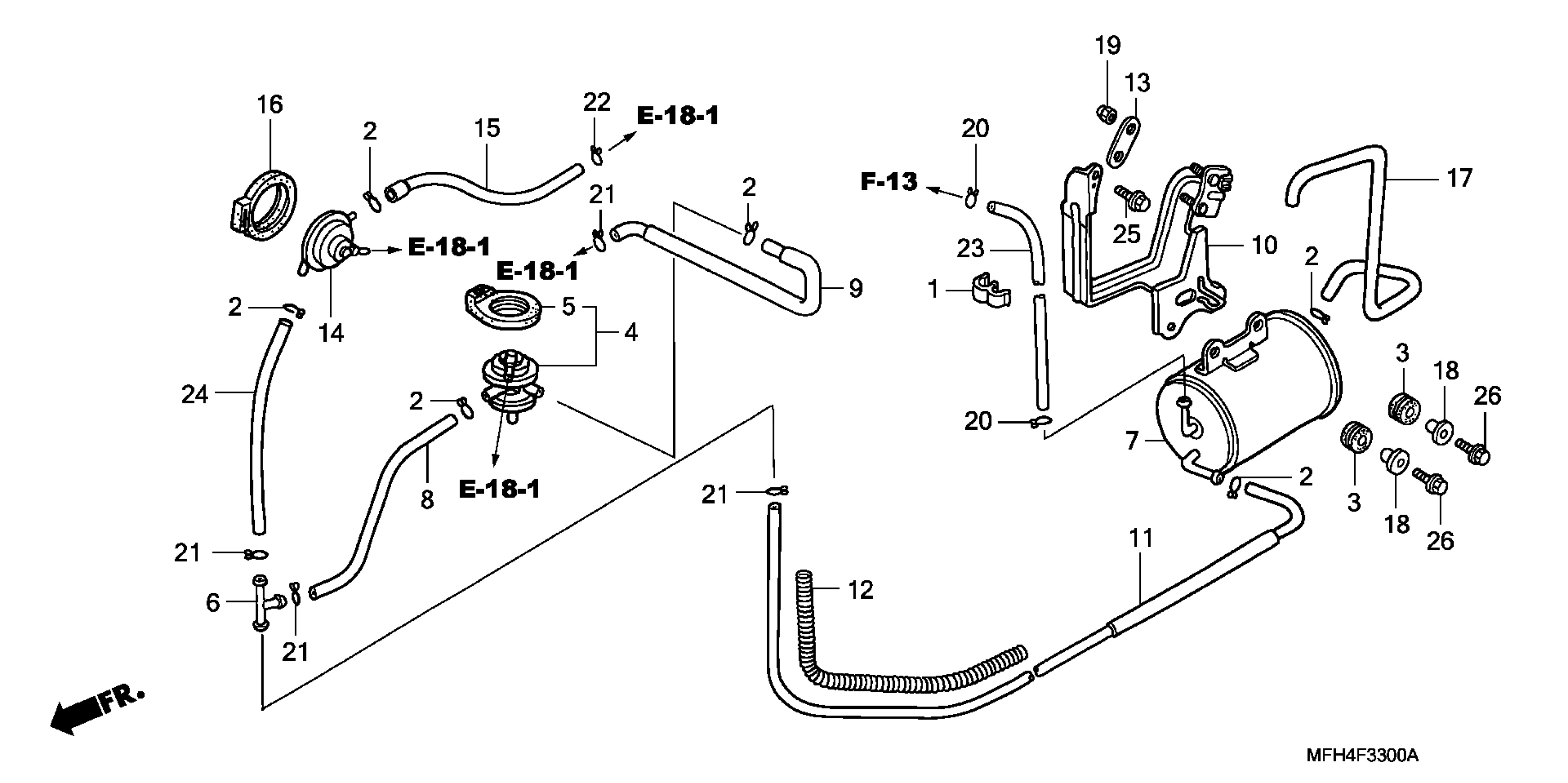

Honda VT600CAC/B (07) SHADOW VLX, USA, VIN# JH2PC211-7M820001 EVAP CANISTER (AC) Diagram

#

Description
Price

1

CLAMP, PIPE

11152-KS4-003

$7.13

2

CLIP, BREATHER TUBE

15772-500-010

$3.90

2

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

3

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

4

VALVE ASSY., AIR VENT CONTROL

17300-MZ8-L61

$227.46

5

RUBBER, MOUNTING

17305-MJ4-771

$12.46

6

JOINT, BREATHER THREE WAY

17373-399-760

Unavailable

7

EVAPORATIVE EMISSION CANISTER

17410-MR1-682

$329.43

8

TUBE ( AVCV-JOINT)

17413-MZ8-U50

$9.59

9

TUBE, AIR VENT CONTROL VALVE

17414-MZ8-U50

$6.43

10

BRACKET, CANISTER

17415-MR1-680

Unavailable

11

TUBE A, PURGE

17421-MZ8-L60

Unavailable

12

SPRING, PURGE TUBE COVER

17422-MR1-880

Unavailable

13

PLATE, CANISTER BRACKET

17423-MR1-680

Unavailable

14

EVAPORATIVE EMISSION PURGE CONTROL VALVE

17440-MR1-681

Unavailable

15

TUBE (PCV-CARB)

17446-MZ8-L60

$12.28

16

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

17

TUBE, AIR

17464-MR1-680

$16.80

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

19

NUT, CAP (6MM)

90201-415-000

$2.05

20

CLIP, TUBE (B8)

95002-02080

$1.80

21

CLIP, TUBE (B12.5)

95002-02130

$1.49

22

CLIP, TUBE (C11)

95002-70000

$1.56

23

BULK HOSE, VACUUM (4.5X1000) (4.5X670)

95005-45001-20M

$34.14

24

BULK HOSE, VACUUM (8X1000) (8X170)

95005-80001-20M

$23.91

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

26

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
