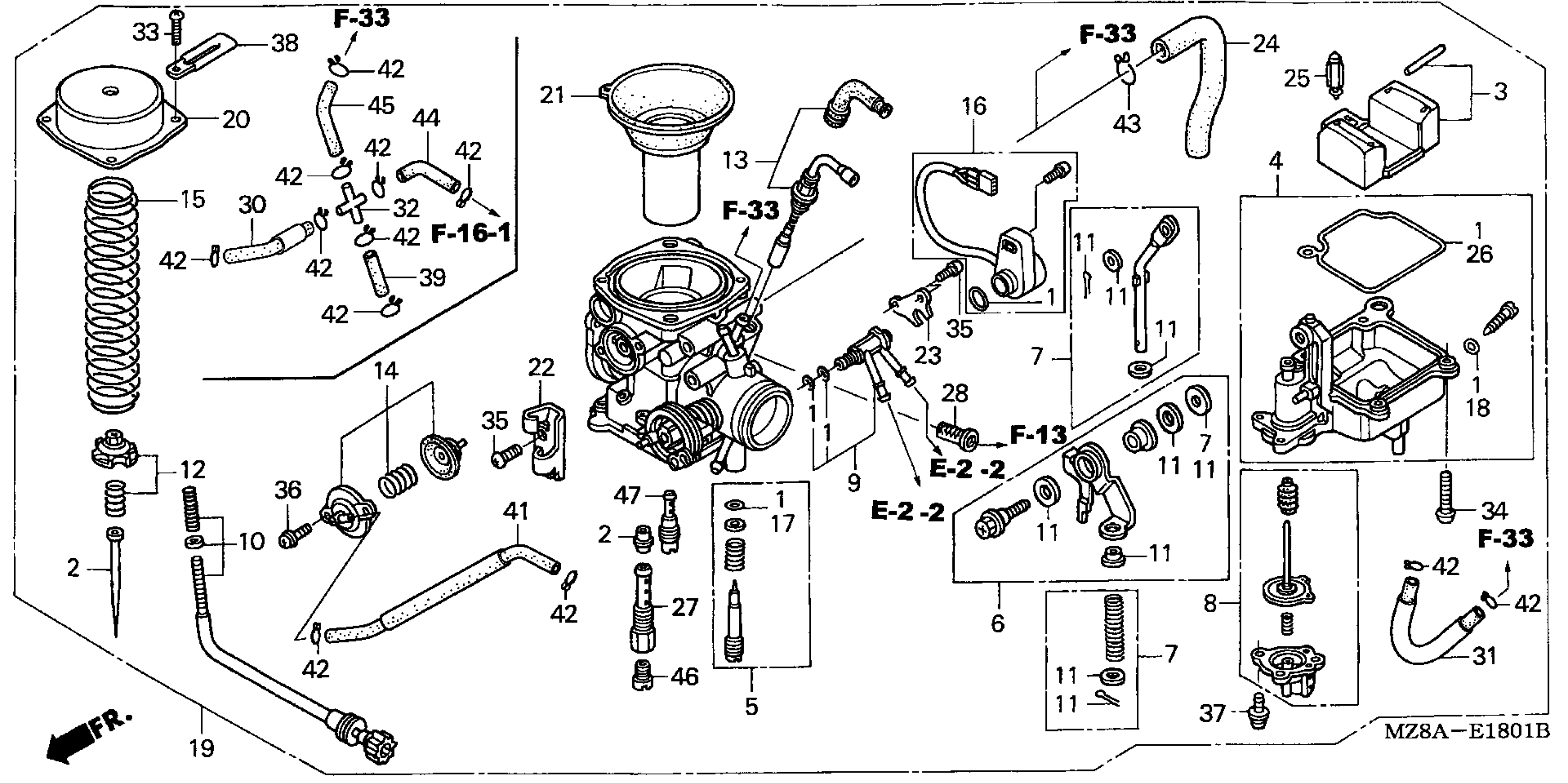

Honda VT600CAC (05) SHADOW VLX, JPN, VIN# JH2PC211-5M600001 CARBURETOR ('04/'05) Diagram

#

Description
Price

1

GASKET SET

16010-MZ8-U41

$32.42

2

NEEDLE SET, JET

16012-MZ8-U51

Unavailable

3

FLOAT SET

16013-KR3-980

$49.62

4

CHAMBER SET, FLOAT | Use up to Engine SN VE5CC B This part replaces 16015-MEA-671.

16015-MZ8-M91

Unavailable

4

CHAMBER SET, FLOAT | Use up to Engine SN VE5CC B

16015-MZ8-M91

Unavailable

4

CHAMBER SET, FLOAT | Use from Engine SN VE5CC B

16015-MEG-B01

Unavailable

4

CHAMBER SET, FLOAT | Use from Engine SN VE5CC B This part replaces 16015-MEG-003.

16015-MEG-B01

Unavailable

5

SCREW SET A

16016-MZ8-S00

$20.45

6

LINK SET

16017-KBG-670

$40.39

7

ROD SET, PUMP

16019-MZ8-U41

Unavailable

8

DIAPHRAGM SET, PUMP

16021-MZ8-U41

$81.80

9

JOINT SET | Use up to Engine SN VE5CC A This part replaces 16026-MZ8-U51.

16026-MZ8-U52

Unavailable

9

JOINT SET | Use up to Engine SN VE5CC A

16026-MZ8-U52

Unavailable

9

JOINT SET | Use from Engine SN VE5CC B

16026-MZ8-U52

Unavailable

10

SCREW SET B

16028-MZ8-H00

Unavailable

11

WASHER SET

16035-MZ8-H00

$7.32

12

PLATE SET, VALVE

16037-MZ8-U51

$18.42

13

VALVE SET, STARTER

16046-MZ8-H00

$42.98

14

VALVE SET, AIR CUT

16048-MZ8-H00

$99.29

15

SPRING, COMPRESSION COIL

16050-MCR-J01

Unavailable

16

SENSOR SET, THROTTLE

16060-MZ8-U41

Unavailable

17

O-RING (1.1X2.8)

16075-GHB-600

$2.12

18

O-RING (1.3X4.3)

16075-GHB-640

$2.65

19

CARBURETOR ASSY. (VE5CC B) | Use up to Engine SN 4803005 This part replaces 16100-MZ8-U52.

16100-MZ8-U53

Unavailable

19

CARBURETOR ASSY. (VE5CC B) | Use from Engine SN 4803006

16100-MZ8-U53

Unavailable

20

TOP

16107-KCZ-000

Unavailable

21

PISTON, VACUUM

16111-MZ8-U51

Unavailable

22

STAY, WIRE

16119-KBR-000

Unavailable

23

PLATE, STAY

16120-MZ8-U42

$7.90

25

VALVE, FLOAT

16155-HN7-003

$25.94

26

GASKET, FLOAT CHAMBER

16163-MEA-671

$20.80

27

HOLDER, NEEDLE JET

16165-MZ8-U41

Unavailable

28

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.36

30

TUBE

16196-MZ8-U51

$4.35

31

TUBE

16197-MZ8-U51

$22.88

32

JOINT, FOUR-WAY

17201-MCZ-003

$6.64

33

SCREW, PAN (4X8)

93500-04008-0A

$0.80

33

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$0.80

34

SCREW, PAN (4X14)

93500-04014-0A

$0.75

34

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$0.75

35

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

35

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

Unavailable

35

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

Unavailable

36

SCREW-WASHER (4X10)

93892-04010-08

$1.04

36

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.04

37

SCREW-WASHER (4X12)

93892-04012-00

$0.61

37

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$0.61

38

CLIP (4X40)

94591-44000

$2.10

39

BULK HOSE, FUEL (3.5X3000) (3.5X45)

95001-35003-60M

$18.72

42

CLIP, TUBE (B7)

95002-02079

$1.09

44

BULK HOSE, VACUUM (3.5X8000) (3.5X70)

95005-35008-10M

$95.02

45

BULK HOSE, VACUUM (3.5X8000) (3.5X170)

95005-35008-10M

$95.02

46

JET, MAIN (#125)

99101-KRY-1250

$7.87

47

JET, SLOW (#45) This part replaces 99103-MZ8-0450.

99104-KPF-0450

$10.64
