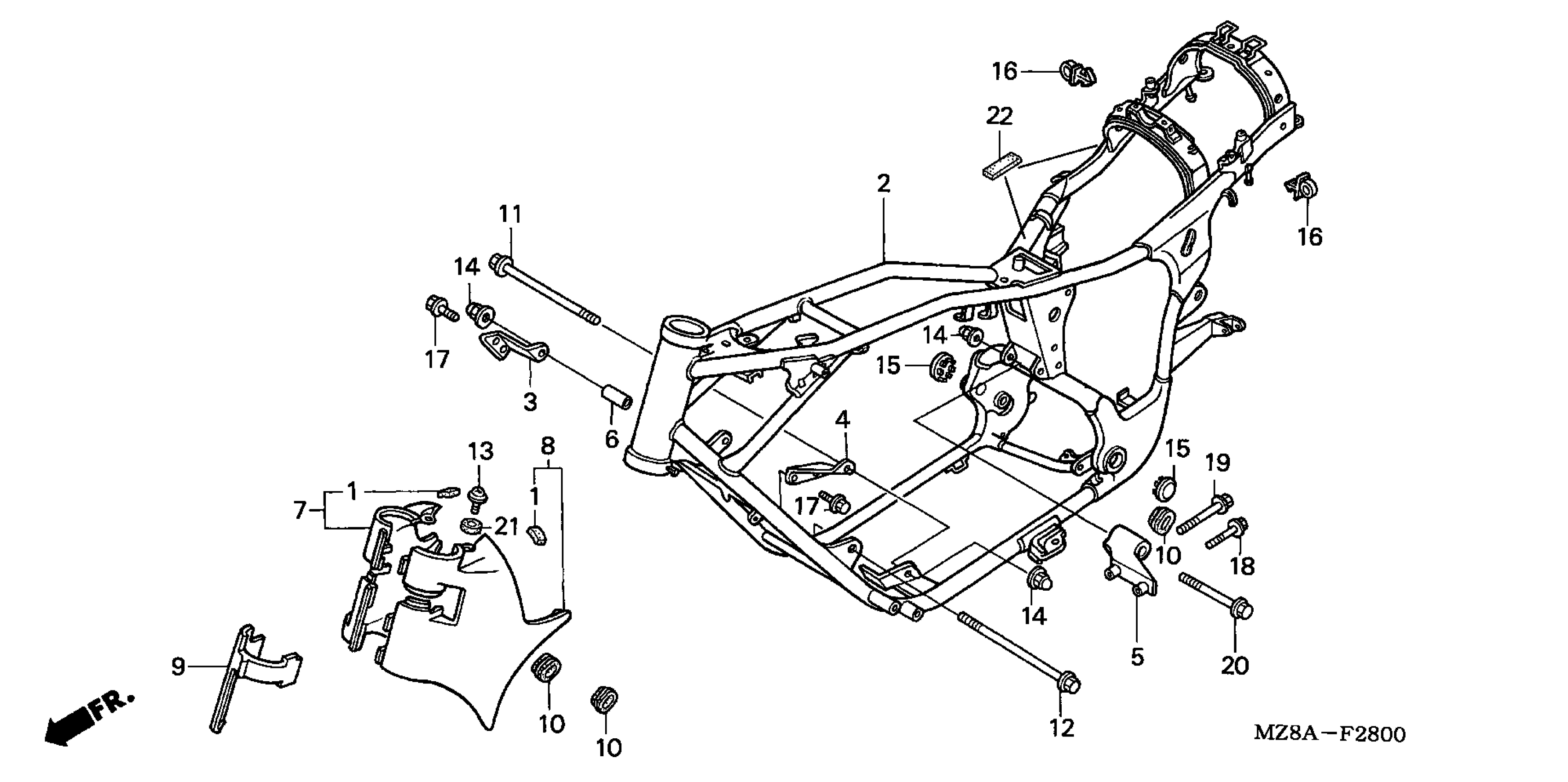

Honda VT600CAC (03) SHADOW VLX, JPN, VIN# JH2PC211-3M400001 TO JH2PC211-3M499999 FRAME Diagram

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.70

FRAME *NH1* (BLACK)

50100-MZ8-L60ZA

$1,832.11

PLATE, FR. ENGINE HANGER (UPPER) *NH1* (BLACK)

50176-MR1-000ZC

Unavailable

PLATE, FR. ENGINE HANGER (LOWER) *NH1* (BLACK)

50177-MR1-000ZC

$16.92

STAY, RR. ENGINE HANGER

50178-MR1-000

Unavailable

COLLAR, ENGINE HANGER

50363-KT7-000

$14.25

COVER, R. FR. SIDE *NH1* (BLACK)

63500-MR1-000ZC

$36.00

COVER, L. FR. SIDE *NH1* (BLACK)

63600-MR1-000ZC

$30.38

COVER, FR. CENTER *NH1* (BLACK)

63700-MR1-000ZD

$22.16

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, FLANGE (10X140)

90102-MR1-000

$17.36

BOLT, FLANGE (10X165)

90103-MR1-000

$19.02

SCREW, PAN (5X19)

90141-KT8-000

$5.20

NUT, FLANGE CAP (10MM)

90202-MR1-000

$3.31

CAP, PIVOT

90302-MZ8-G20

$7.39

CLIP, HARNESS (NIFCO)

90659-734-K51

$2.13

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X30)

95701-08030-07

$2.28

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.43

BOLT, FLANGE (10X70)

95801-10070-07

$2.64

BASE, RUBBER

80240-MZ3-720

$10.11

PROTECTOR

16911-MAH-300

$6.49
