Description

Price

1

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.70

2

FRAME NH1 (BLACK)

50100-MZ8-L60ZA

$1,832.11

3

PLATE, FR. ENGINE HANGER (UPPER) NH1 (BLACK)

50176-MR1-000ZC

Unavailable

4

PLATE, FR. ENGINE HANGER (LOWER) NH1 (BLACK)

50177-MR1-000ZC

$16.92

5

STAY, RR. ENGINE HANGER

50178-MR1-000

Unavailable

6

COLLAR, ENGINE HANGER

50363-KT7-000

$14.25

7

COVER, R. FR. SIDE NH1 (BLACK)

63500-MR1-000ZC

$36.00

8

COVER, L. FR. SIDE NH1 (BLACK)

63600-MR1-000ZC

$30.38

9

COVER, FR. CENTER NH1 (BLACK)

63700-MR1-000ZD

$22.16

10

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

11

BOLT, FLANGE (10X140)

90102-MR1-000

$17.36

12

BOLT, FLANGE (10X165)

90103-MR1-000

$19.02

13

SCREW, PAN (5X19)

90141-KT8-000

$5.20

14

NUT, FLANGE CAP (10MM)

90202-MR1-000

$3.31

15

CAP, PIVOT

90302-MZ8-G20

$7.39

16

CLIP, HARNESS (NIFCO)

90659-734-K51

$2.13

17

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

18

BOLT, FLANGE (8X30)

95701-08030-07

$2.28

19

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.43

20

BOLT, FLANGE (10X70)

95801-10070-07

$2.64

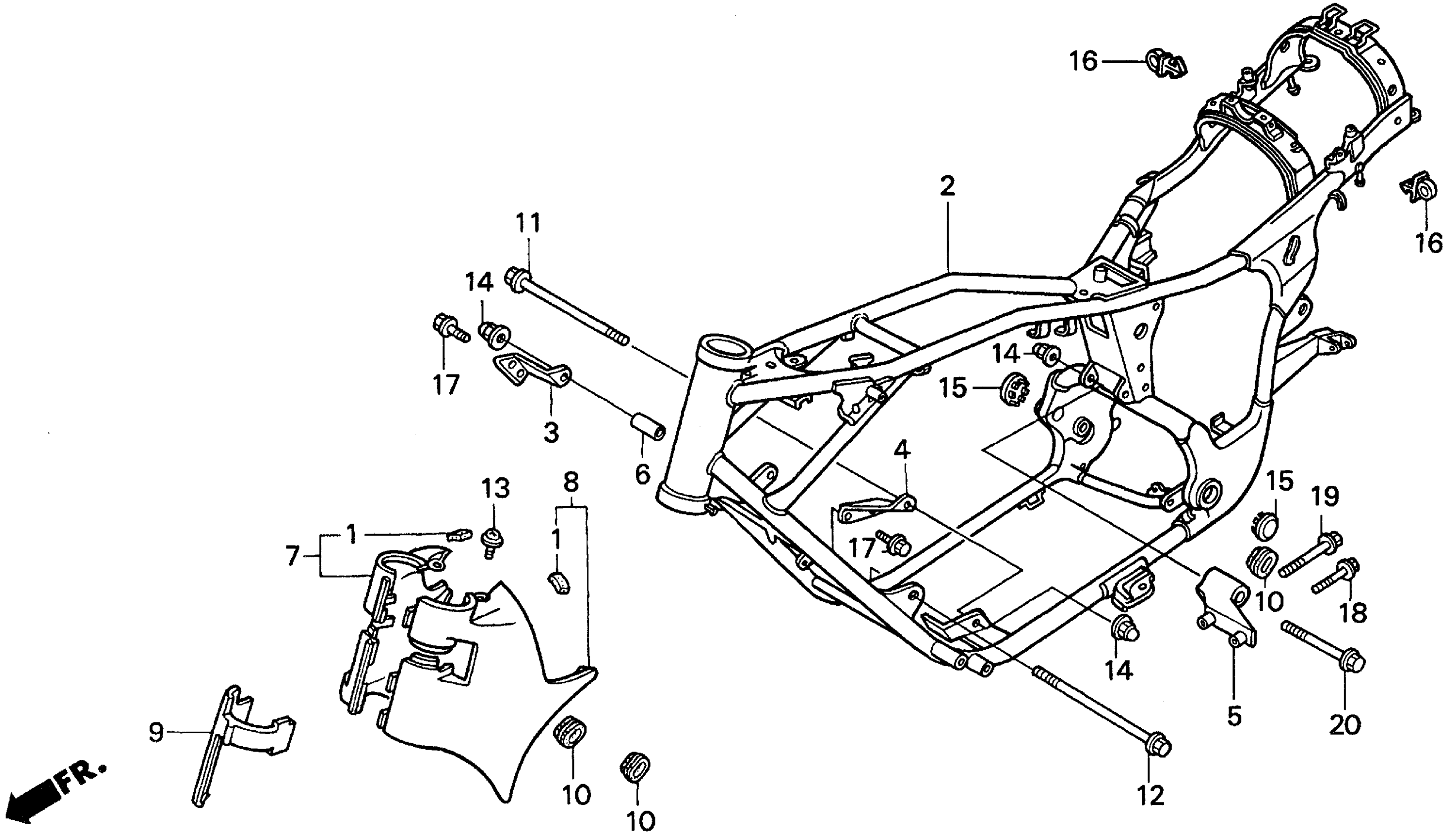

Honda VT600CAC (01) MOTORCYCLE, JPN, VIN# JH2PC211-1M210001 FRAME Diagram
