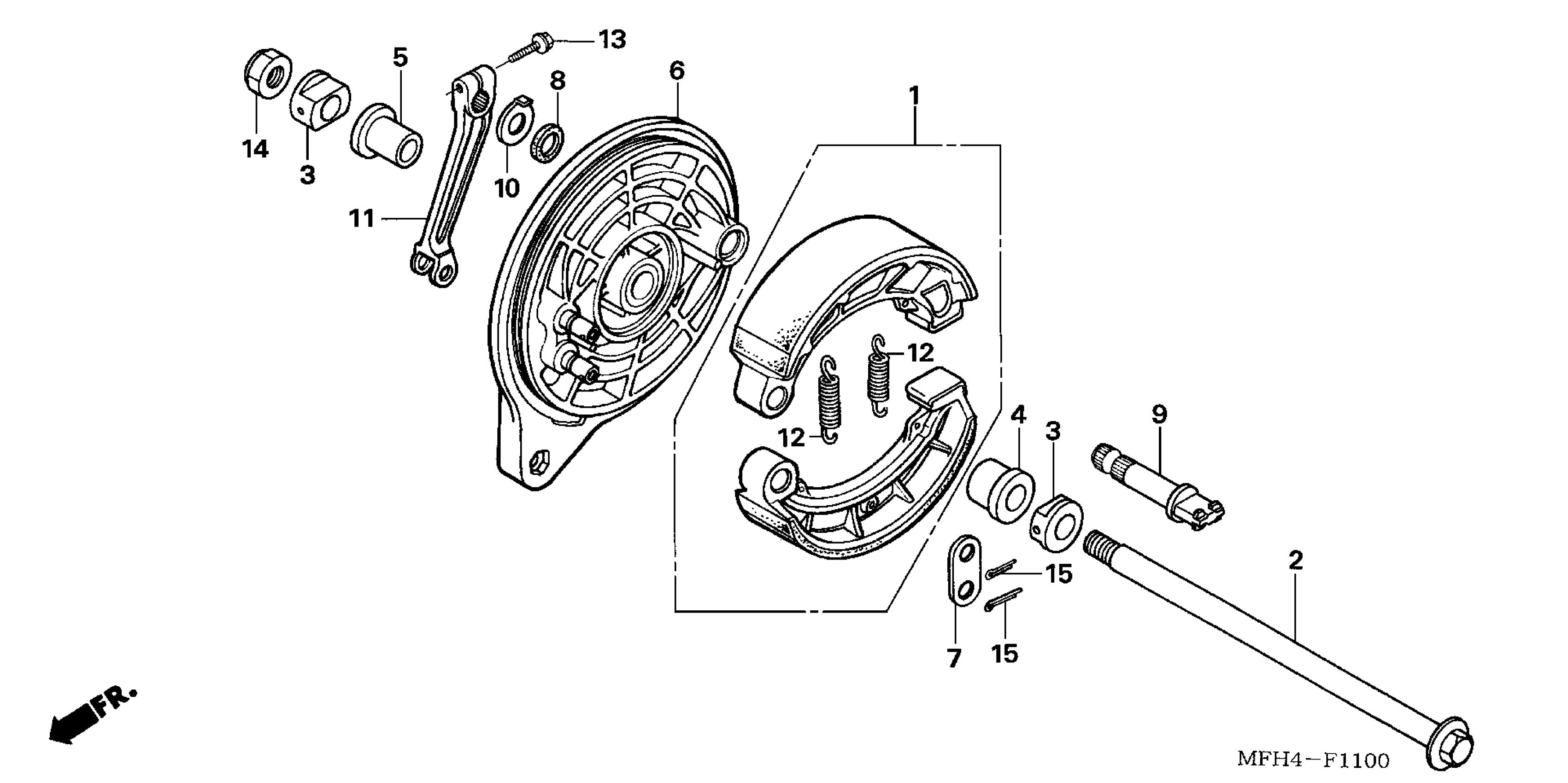

Honda VT600CA/B (07) SHADOW VLX, JPN, VIN# JH2PC210-7M820001 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK)

06430-HN0-A20

$45.79

SHOE SET, BRAKE (JB)

06430-HN0-A30

$58.11

AXLE, RR. WHEEL

42301-MZ8-A20

$44.23

WASHER, RR. AXLE

42306-MR1-000

$17.66

COLLAR, L. RR. WHEEL SIDE

42311-MR1-000

Unavailable

COLLAR, RR. BRAKE PANEL SIDE

42313-MR1-000

Unavailable

PANEL, RR. BRAKE

43100-KCR-000

$285.33

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE

43141-MCL-003

$32.05

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

ARM, RR. BRAKE

43410-MR1-000

$47.80

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.65

NUT, AXLE (16MM)

90305-KE8-003

$8.64

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49
